Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-12
Cleaning and Lubricating Head Spindle, Mirror CAM
Monthly Inspection
Step 4.
Apply grease to the LM guide rail using a syringe and
apply grease to the ball spline and the Mirror CAM.
(Head Spindle: GREASE AFF-70, Mirror CAM: GREASE
GADUS S2 V220-2)
Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-13
Checking and Cleaning Head Beam Splitter
Tool for Maintenance
Air Spry, (+) driver
Measures
Step 1.
Move the Front X Frame and Rear X Frame to both
ends by referring to "Forward movement of the front
X-frame" on page 1-3 and "Backward movement of the
rear X-frame" on page 1-7.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.

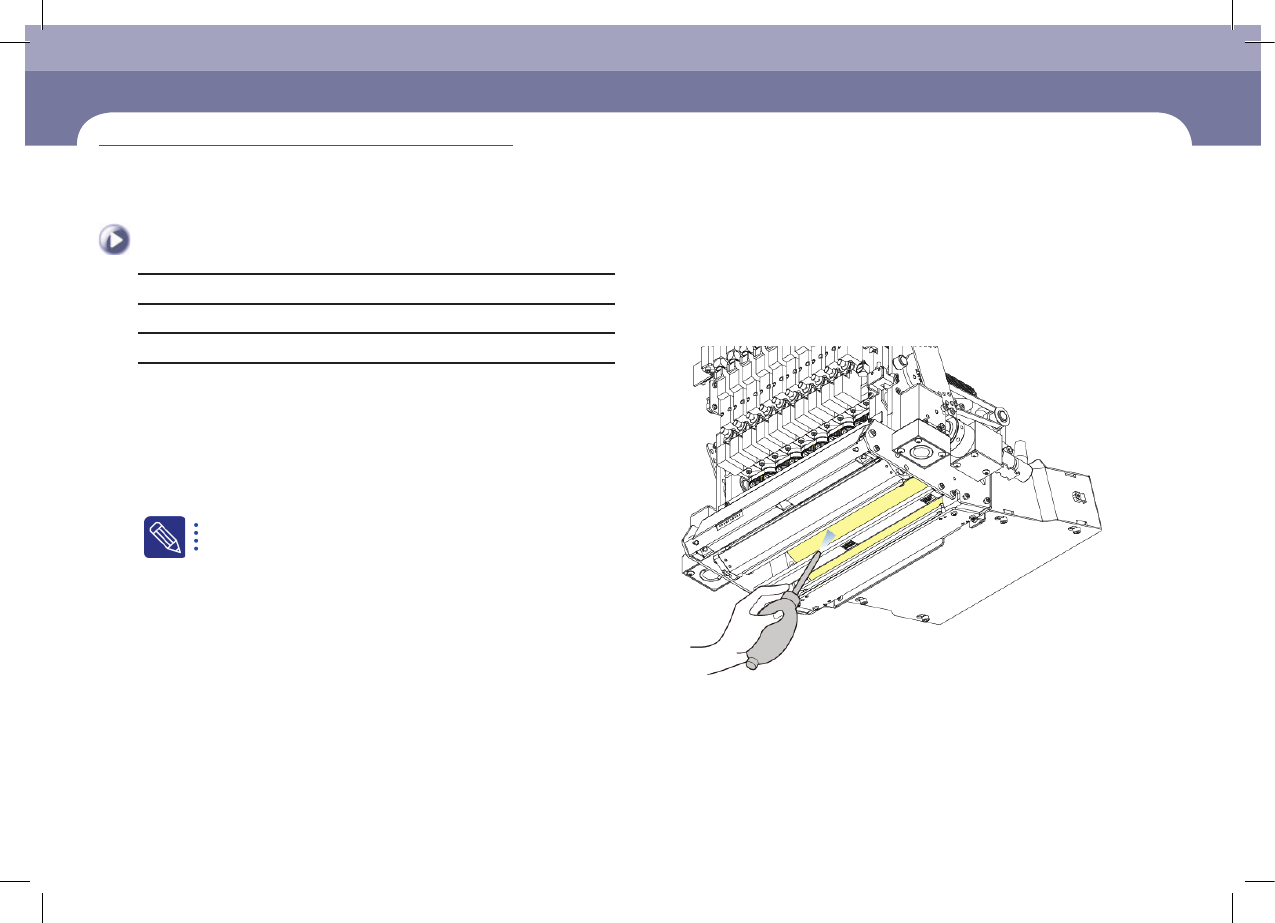

Clean the beam splitter below the head using an air spray.
Step 4.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-10 and perform the
operation again.
Checking and Cleaning Head Beam Splitter
(Time required: 20min / No. M-8)
Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-14
Cleaning and Lubricating X Frame LM Guide, Ball Screw
Monthly Inspection
Tool for Maintenance
Industrial use paper wipe, Lubricator, GREASE-GREASE_AFE-CA, GREASE GADUS S2
V220-2, Wrench(M3, M4), Steel plate with thickness of 2.0mm
Measures
Step 1.
Move the Front X Frame and Rear X Frame to both
ends by referring to "Forward movement of the front
X-frame" on page 1-3 and "Backward movement of the
rear X-frame" on page 1-7.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Cleaning and Lubricating X Frame LM Guide, Ball
Screw
Step 3.

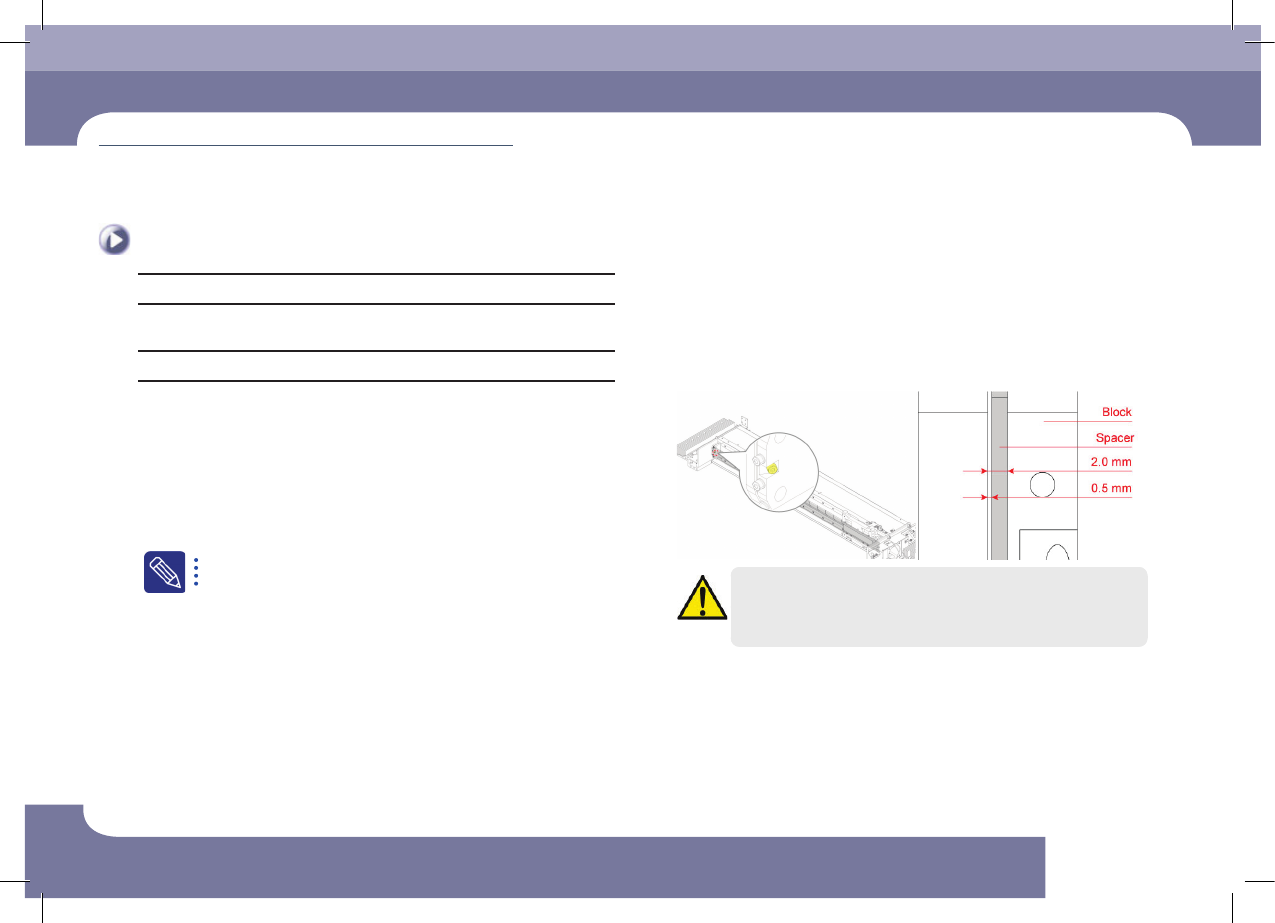

After removing the tension adjustment bolts of the
cover that prevents grease from scattering using a
hex wrench (M4), replace the fixing block if the space
between the cover fixing block and spacer is not 0.5mm.
Caution
Only the personnel specializing in maintenance must disassemble/
assemble the grease scatter prevention cover.
(Time required: 60min / No. M-9)
