Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-16
Cleaning and Lubricating X Frame LM Guide, Ball Screw
Monthly Inspection

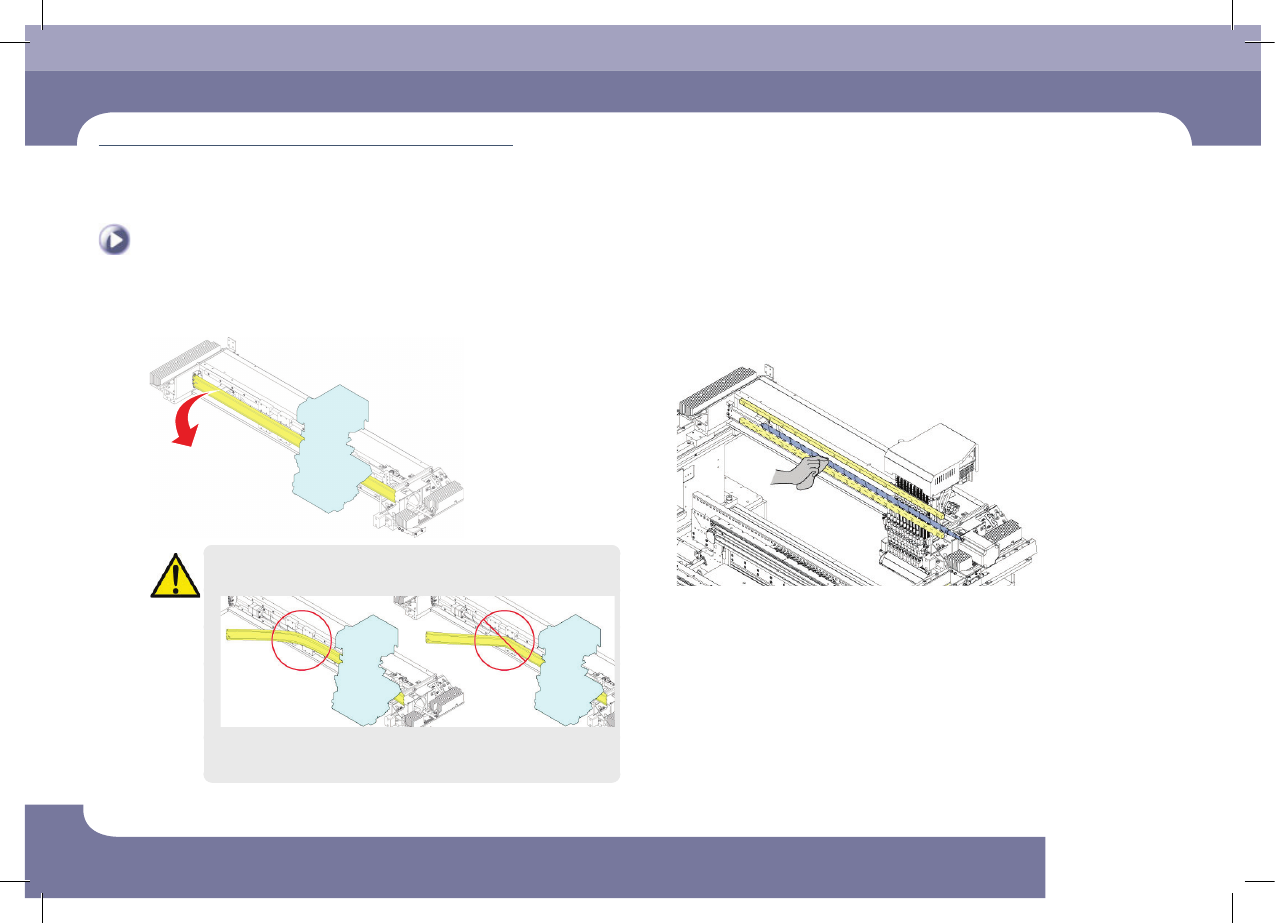

Step 7.
Remove the cover from the X-frame.
Caution
When removing the grease scatter prevention cover, exercise great
care so that it will not be bent.
If the cover is bent, it cannot be used. Therefore, a new one must
be purchased.
Step 8.
Clean the LM guide rail and ball screw using an industrial
use paper wipe.
Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-17
Cleaning and Lubricating X Frame LM Guide, Ball Screw

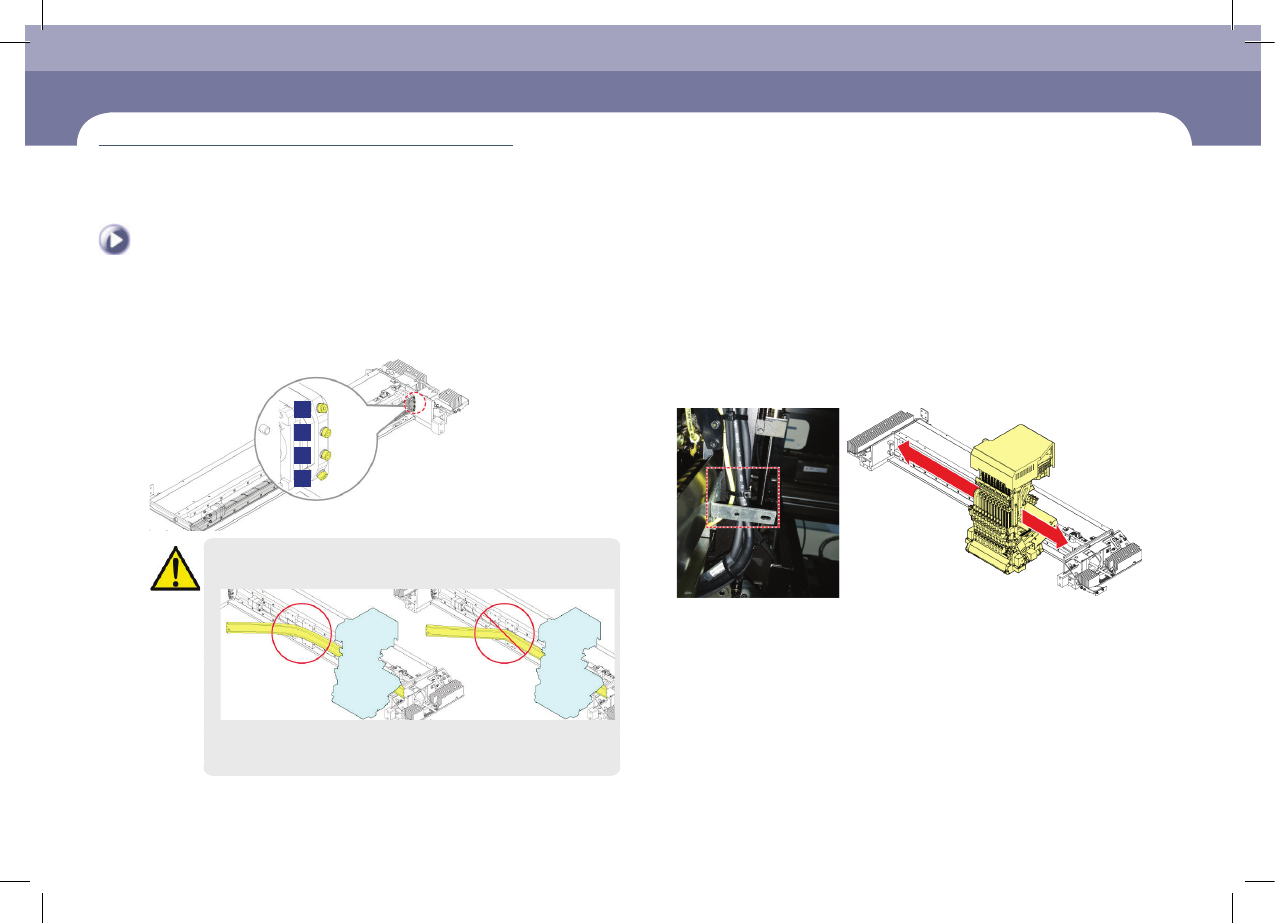

Step 9.
Fasten the bolts fixing the cover in the order shown in
the following figure using a hex wrench (M3).
4
2
1
3
Caution
When assembling the grease scatter prevention cover, exercise great
care so that it will not be bent.
If the cover is bent, it cannot be used. Therefore, a new one must
be purchased.
Step 10.
After inserting a steel plate with a thickness of 2.0mm
between the grease scatter prevention cover and head,
position the head at the center of the X-frame to check
whether the space between the cover and head is more
than 2.0mm.
Monthly Inspection
chapter 5
Advanced Chip Shooter
DECAN S2 Maintenance Handbook
5-18
Cleaning and Lubricating X Frame LM Guide, Ball Screw
Monthly Inspection

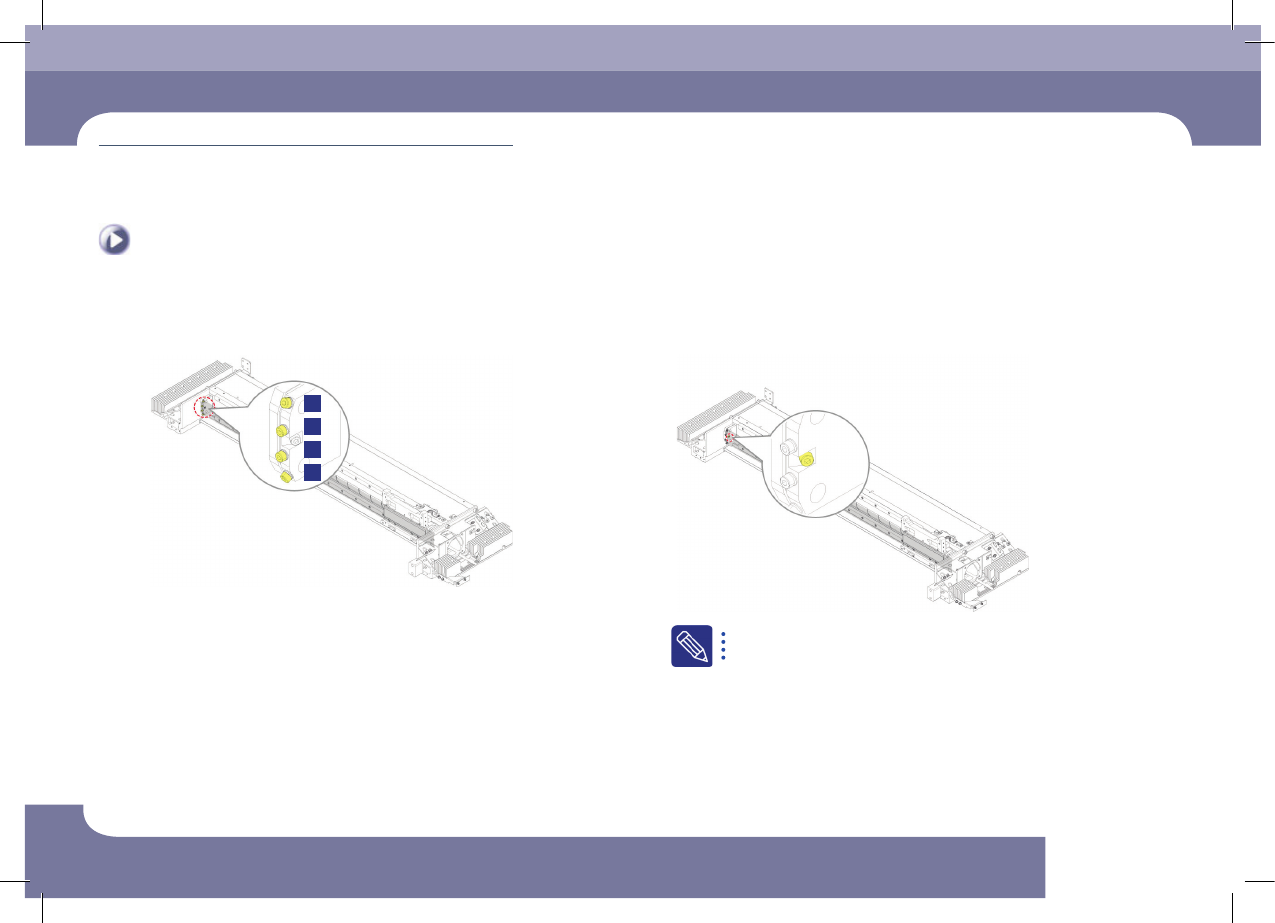

Step 11.
Fasten the bolts fixing the cover in the order shown in
the following figure using a hex wrench (M3).
4
2
1
3
Step 12.
Fasten the cover tension adjustment bolts using a hex
wrench (M4).
Fasten the tension adjustment bolts so that the block of the grease
scatter prevention cover and the spacer come into close contact.
