3.3 Installing the Power Conversion Kit
Installing the Power Conversion Kit
The power conversion kit for 3 x 200 – 240 V is installed at location 1 of the SIPLACE E machine.
The main switch and the power supply cable remain the same as they can be used in a 200 V supply
network.
The connections for station computer, LCD screens, and component tables remain unchanged because
they are connected to the placement machine's own supply system.

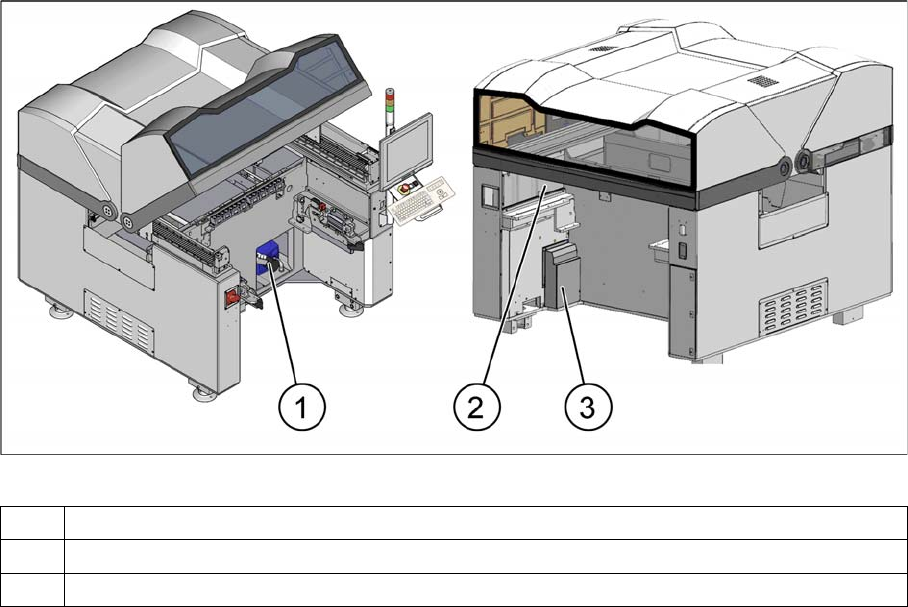

View of location 1 with transformer cover already installed
1 Location of vacuum pump unit
2 Location of vacuum pump control unit and terminal blocks -X111/-X112/-X113
3 Installation location of the transformer behind the cover [03111406-xx]
Conversion
Installing the Power Conversion Kit
Assembly Instructions SIPLACE E 19

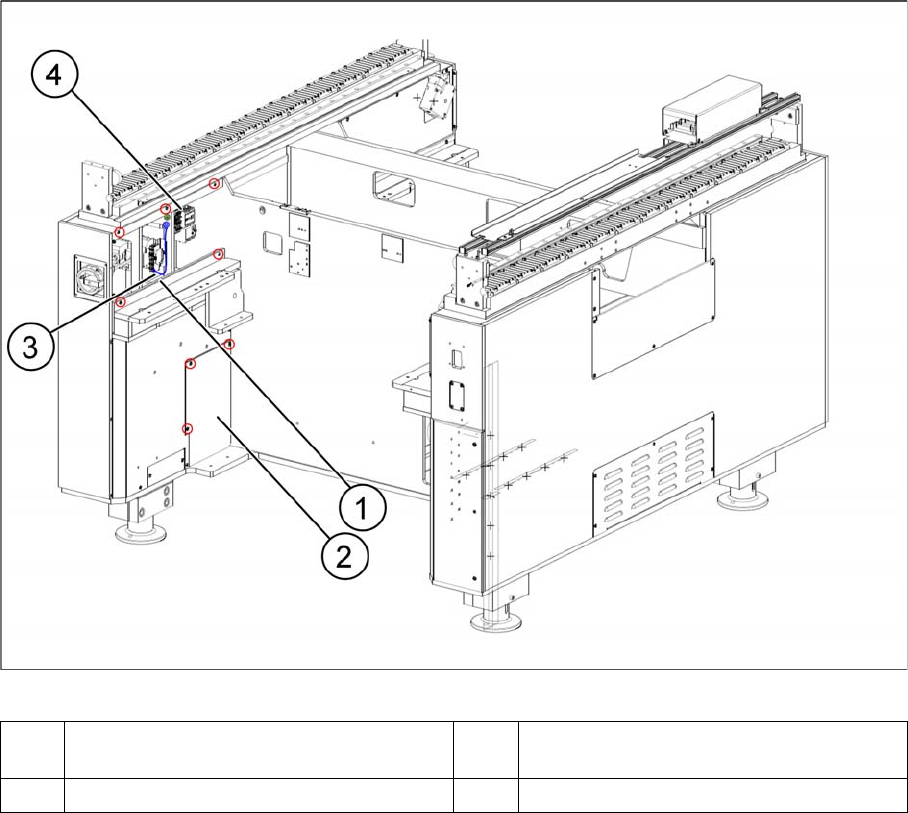

Remove covers
► Remove the cover in front of the vacuum pump control unit (1).
► Remove the standard cover that hides the installation location of the transformer (2).
1 Cover in front of vacuum pump control unit
removed
2 Standard cover [03112972-xx] in front of in
-
stallation location of the transformer
3 PE frame 4 Vacuum pump control unit
Conversion
Installing the Power Conversion Kit
20 Assembly Instructions SIPLACE E
Components of the 208 V power conversion kit
► Install the transformer [03107593-xx] (9) as shown in the above figure.
1 4 x M4x6 screws [03046903-xx] 2 Transformer cover [03111406-xx]
3 For grounding: 2 x [03012559-xx],
2 x [03047704-xx], 1 x [03008203-xx]
4 2 x M8x12 screws [03042583-xx]
5 2 x washers [03066813-xx] 6 4 x washers [03066810-xx]
7 4 x M4x12 screws [03042553-xx] 8 Bracket [03102898-xx]
9 Transformer [03107593-xx]
