Conversion
Installing the Power Conversion Kit
20 Assembly Instructions SIPLACE E

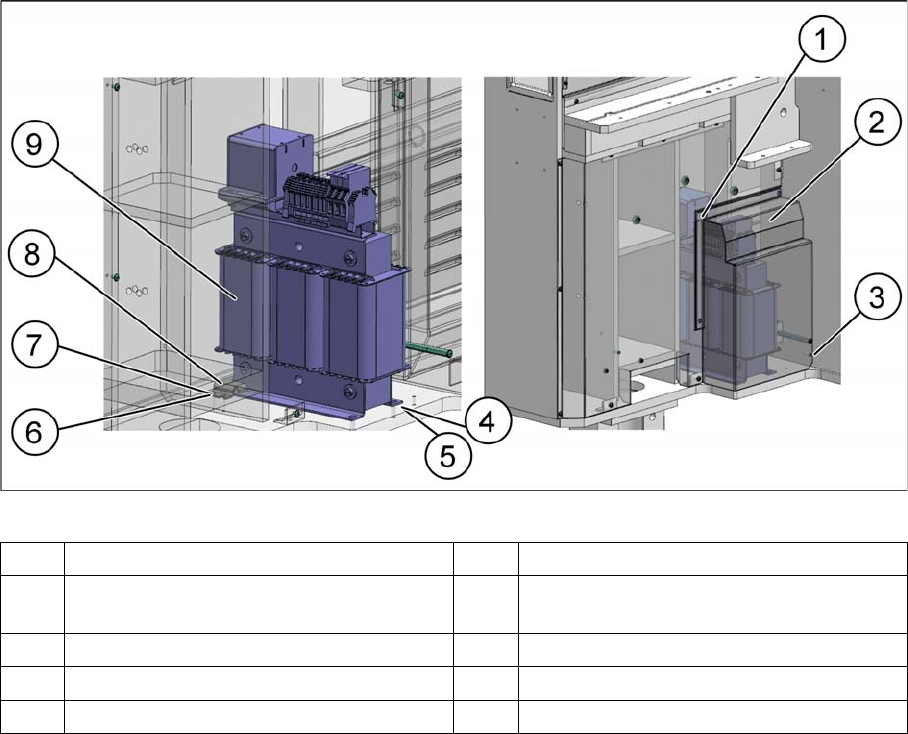

Components of the 208 V power conversion kit
► Install the transformer [03107593-xx] (9) as shown in the above figure.
1 4 x M4x6 screws [03046903-xx] 2 Transformer cover [03111406-xx]
3 For grounding: 2 x [03012559-xx],
2 x [03047704-xx], 1 x [03008203-xx]
4 2 x M8x12 screws [03042583-xx]
5 2 x washers [03066813-xx] 6 4 x washers [03066810-xx]
7 4 x M4x12 screws [03042553-xx] 8 Bracket [03102898-xx]
9 Transformer [03107593-xx]
Conversion
3.3.1 Installing the Cable Harness Assembly Installing the Power Conversion Kit
Assembly Instructions SIPLACE E 21
3.3.1
3.3.1 Installing the Cable Harness Assembly
Installing the Cable Harness Assembly
Connection points
Conversion
Installing the Power Conversion Kit 3.3.1 Installing the Cable Harness Assembly
22 Assembly Instructions SIPLACE E
Main switch cable [03104081-xx]
► Disconnect the main switch cable [03104081-xx] from terminal -X111/-X112/-X113 pin 2 and recon
-
nect it to transformer output T1:2U/2V/2W.
Main breaker cable [03101687-xx]
► Add the main breaker cable [03101687-xx] between –X111/-X112/-X113 pin 2 and transformer input
T1:2/4/6.
Grounding cable [03111414-xx]
► Connect the grounding cable [03111414-xx] to the transformer cover and the machine frame.
