Conversion 3.4.1 Removing the Power Conversion Kit Restoring the Standard C onfiguration o f 3x400V Assembly Instructions SIPLACE E 27 3.4 3 . 4 R e s t o r in g t h e S t a n d a r d C o n f ig u r a t io n o f 3 x 4…

Conversion

Installing the Power Conversion Kit 3.3.3 Configuring the Vacuum Pump and the Overload Relay for US Option

26 Assembly Instructions SIPLACE E

Configuring the Vacuum Pump Connection

Vacuum pump wiring connection – delta configuration

► Switch the vacuum pump connection plate to the delta configuration (1).

► Proceed with the final safety checks ("3.5 Carrying out Final Safety Checks" [ ➙ 32]).

► Install all covers that you previously removed.

See also

 3.3.3 Configuring the Vacuum Pump and the Overload Relay for US Option [ ➙ 24]

Conversion

3.4.1 Removing the Power Conversion Kit Restoring the Standard Configuration of 3x400V

Assembly Instructions SIPLACE E 27

3.4

3.4 Restoring the Standard Configuration of 3x400V

Restoring the Standard Configuration of 3 x 400 V

If the standard configuration of 3 x 400 V has to be restored, remove the power conversion kit and reset

the electrical settings and the vacuum pump connection.

3.4.1

3.4.1 Removing the Power Conversion Kit

Removing the Power Conversion Kit

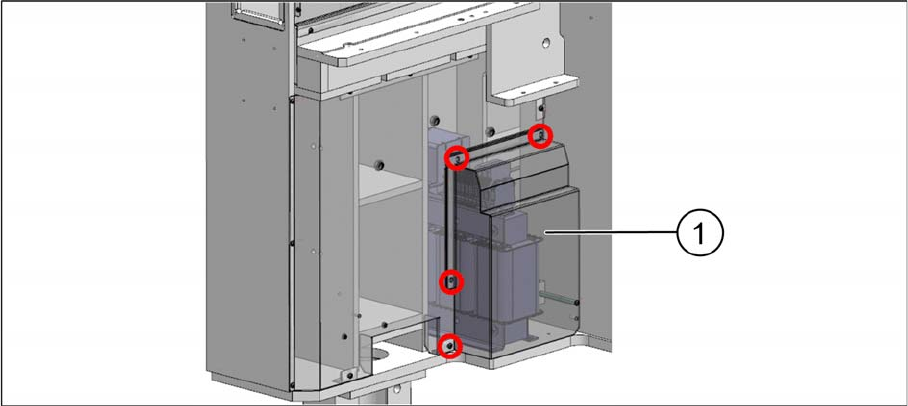

Fixing screws on the transformer cover

► Remove the four screws that are fixing the transformer cover (1).

► Disconnect the cables from the transformer.

► Remove the transformer from its installation location.

See also

 3.3.3 Configuring the Vacuum Pump and the Overload Relay for US Option [ ➙ 24]

Conversion

Restoring the Standard Configuration of 3x400V 3.4.2 Removing the Cable Harness Assembly

28 Assembly Instructions SIPLACE E

3.4.2

3.4.2 Removing the Cable Harness Assembly

Removing the Cable Harness Assembly

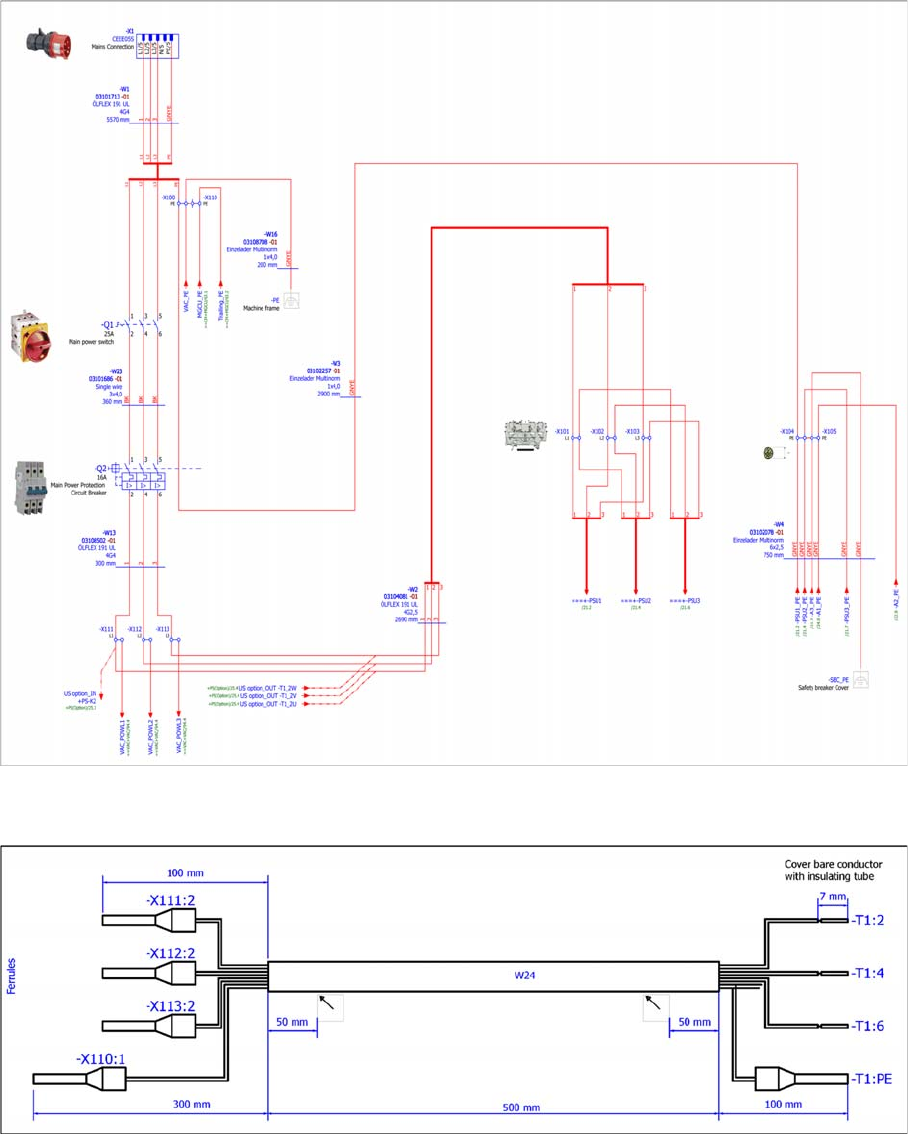

Standard power distribution configuration

► Restore the standard power distribution configuration:

Main breaker cable [03101687-xx]

► Remove the main breaker cable [03101687-xx] between –X111/-X112/-X113 pin 2 and transformer

input T1:2/4/6.
