Conversion 3.4.2 Removing the Cable Harness Assembly Restoring the Standard Configuration o f 3x400V Assembly Instructions SIPLACE E 29 Main switch cable [03104081-xx] ► Disconnect the main switch cable [ 03104081-xx]…
Conversion
Restoring the Standard Configuration of 3x400V 3.4.2 Removing the Cable Harness Assembly
28 Assembly Instructions SIPLACE E
3.4.2
3.4.2 Removing the Cable Harness Assembly
Removing the Cable Harness Assembly
Standard power distribution configuration
► Restore the standard power distribution configuration:
Main breaker cable [03101687-xx]
► Remove the main breaker cable [03101687-xx] between –X111/-X112/-X113 pin 2 and transformer
input T1:2/4/6.
Conversion
3.4.2 Removing the Cable Harness Assembly Restoring the Standard Configuration of 3x400V
Assembly Instructions SIPLACE E 29

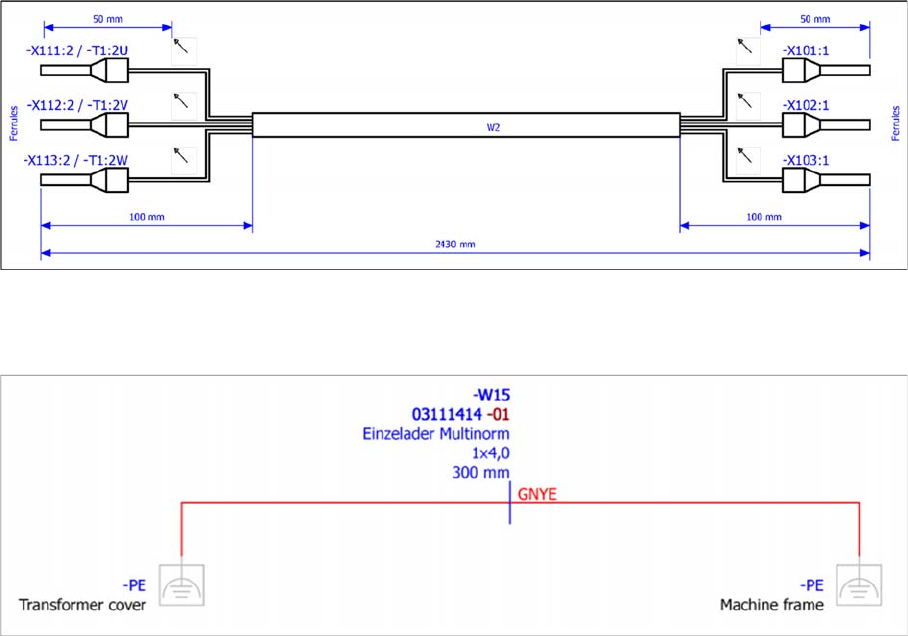

Main switch cable [03104081-xx]
► Disconnect the main switch cable [03104081-xx] from the transformer output T1:2U/2V/2W and re
-
connect it to terminal -X111/-X112/-X113 pin 2.
Grounding cable [03111414-xx]
► Remove the grounding cable [03111414-xx] from the transformer cover and the machine frame.
Conversion
Restoring the Standard Configuration of 3x400V 3.4.3 Restoring the Original Vacuum Pump and Overload Relay Configuration
30 Assembly Instructions SIPLACE E
3.4.3
3.4.3 Restoring the Original Vacuum Pump and Overload Relay Configuration
Restoring the Original Vacuum Pump and Overload Relay Configuration
Restoring the Current Overlay Setting
Vacuum pump control unit assembly and setting
► Adjust the over current setting of the overload relay Q3 (10) to 2.4 A.
