S27HM Circuit Diagrams - 第192页
7 - 4 0034533 3-010 101LD4 Cabl e: PCB b arcode - MC - distribu tion board Sheet Urspr. Ers. f. Ers. d. SIEMENS A G Sh. The arrow alway s point s to the top le ft-han d corner of the labe ling field. Informat ion on the …
7 - 3

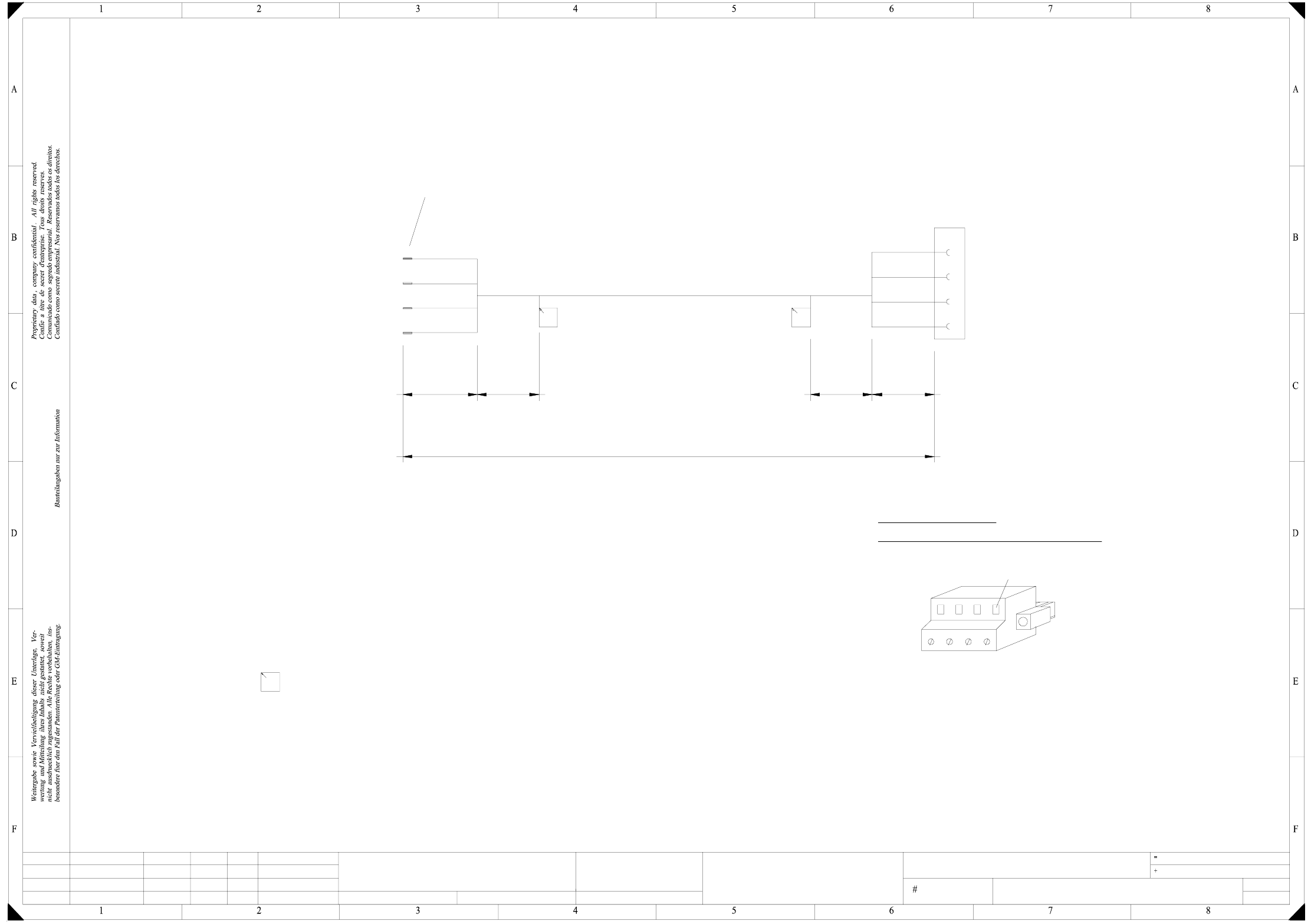

00345332-010101LD4 Cable: PCB barcode power supply
Sheet
Urspr. Ers. f. Ers. d.
SIEMENS AG
Sh.
The arrow always points to the top left-hand corner of the labeling field.
Information on the printing and appearance of the
labels is given in the labeling guidelines for made-up cables
specified in the parts list.
W1
To
Cable ferrules
3
I/O panel A2
(GND)
I/O panel A2
Phoenix COMBICON FRONT-MC plug
432
PCB barcode power supply
at X212/4
at X2kc:7
2
Pin assignment of the
4
30mm
To
l = 5 m ± 0.05 m / 8 x 0.34 mm²
terminal panel (left-hand side)
X6
PCB barcode distribution board
50mm50mm1000mm
wh+br
gn+ye
gr+pk
bl+rd
wh+br
gn+ye
gr+pk
bl+rd
at X212/3
at X2kc:4
(+24V)
Cable:
00345332-010101LD4
0.75 mm²
L&A EA
Zustand
01.
01.
01.
Aenderung
Function status
Doc. status
Product status
04.12.98
04.12.98
04.12.98
Datum Name
Tek
Tek
Tek Datum
Gepr.
Bearb.
26.10.1998
Fux
Norm
SMD-Placement System Siplace S-27 HM
1
1
1
1
7 - 4

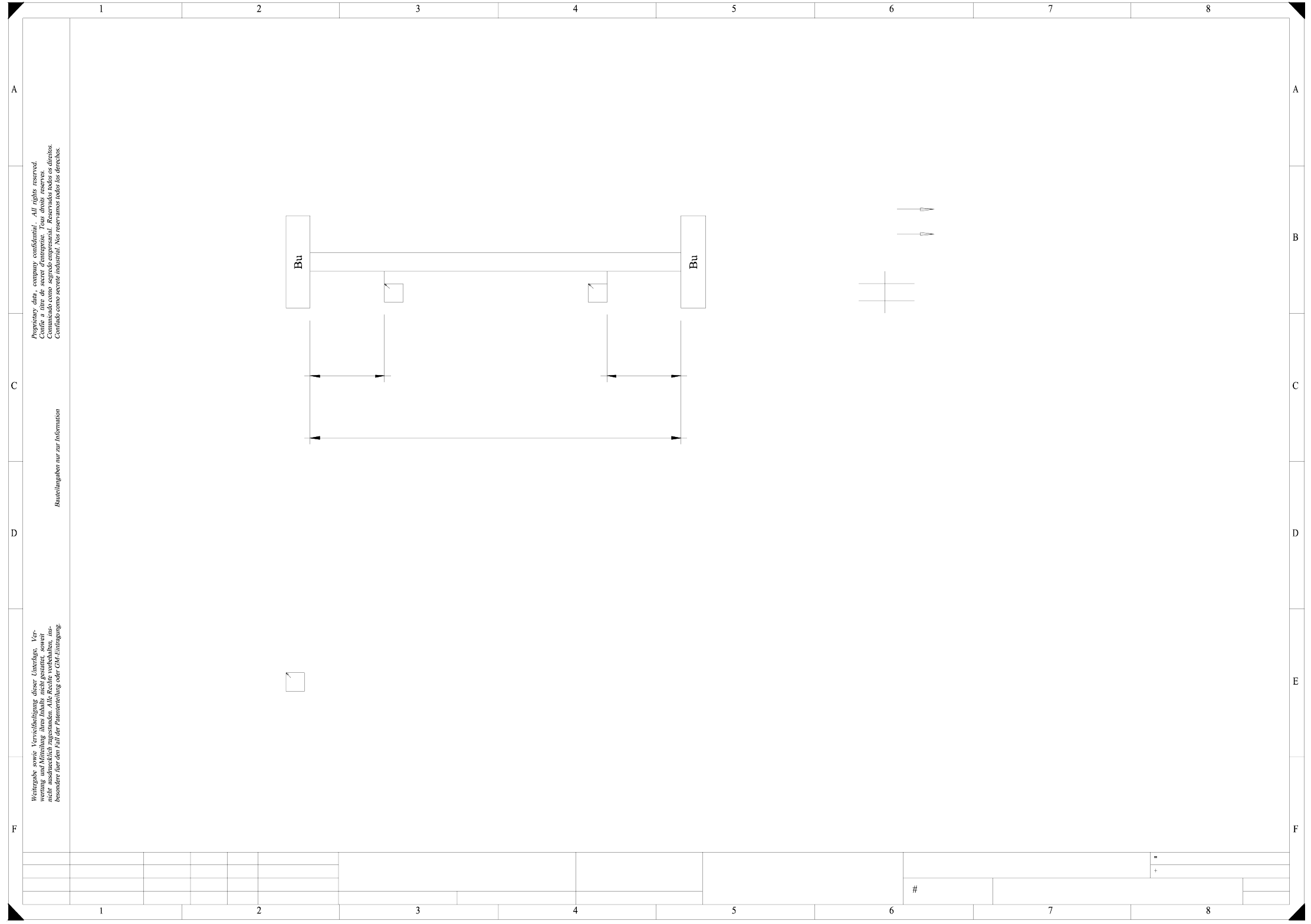

00345333-010101LD4 Cable: PCB barcode - MC - distribution board
Sheet
Urspr. Ers. f. Ers. d.
SIEMENS AG
Sh.
The arrow always points to the top left-hand corner of the labeling field.
Information on the printing and appearance of the labels
is given in the labeling guidelines for made-up cables
specified in the parts list.
Sub-D socket, 9-pin
W1
X5 X*sa
l = 5m
70mm 70mm
PCB barcode - MC distribution board
X5
X*sa
Sub-D socket, 9-pin
L&A EA
00345333-010101LD4
Cable :
Zustand
01.
01.
01.
Aenderung
Function status
Doc. status
Product status
22.02.99
04.12.98
04.12.98
Datum Name
Tek
Tek
Tek Datum
Gepr.
Bearb.
26.10.1998
Fux
Norm
SMD-Placement System Siplace S-27 HM
1
1
X*sa
X8sa
X6saM44
M54
7 - 5

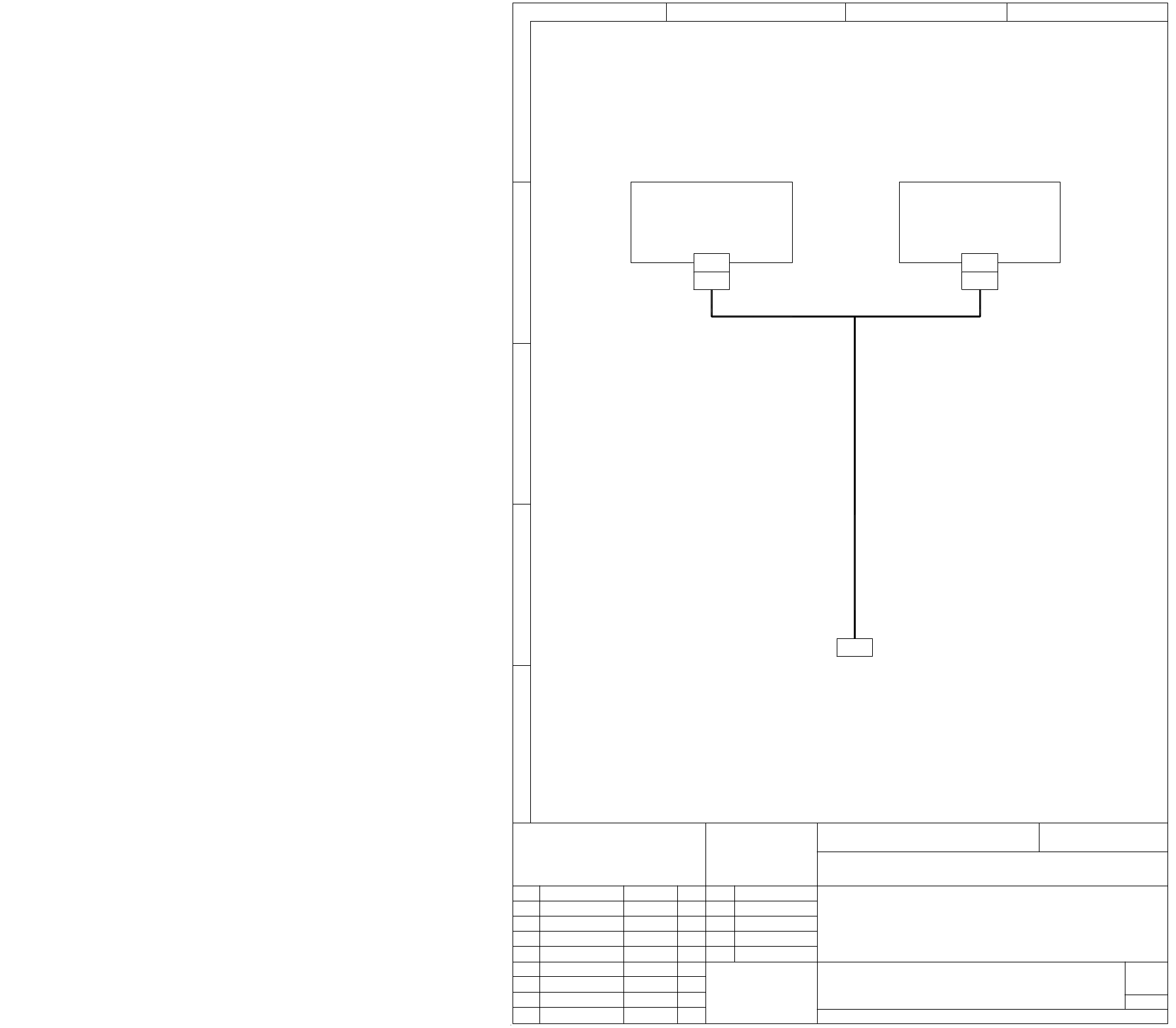

00116171-020101LD4 Oblique lighting illumination, camera on the gantry underside
16.02.95
Grasmüller
Oblique lighting illumination:
camera on the gantry underside
SIPLACE S-27 HM
Function status
26.06.96 Tek
Tek
Tek
26.06.96
26.06.962.
1.
1.
Siemens AG
L&A EA
Name
A
B
C
D
E
1234
L9100L21
00116171-020101LD4
To illumination control of the camera on the gantry underside
Cable: oblique lighting illumination
X1bp
X1bp
right-hand side
Oblique lighting board Oblique lighting board
left-hand side
X1bq
X1bq
X2av
Product status
Document status
1
1
CAD file:
Stat. Modified Date
Date
Author
Check.
Stand.
Scale
Sheet
Sh.
