7 Power Supply
7.1 Electrical Overview
Technical Training E by DEK 12/2017 55
7 Power Supply
7.1 Electrical Overview

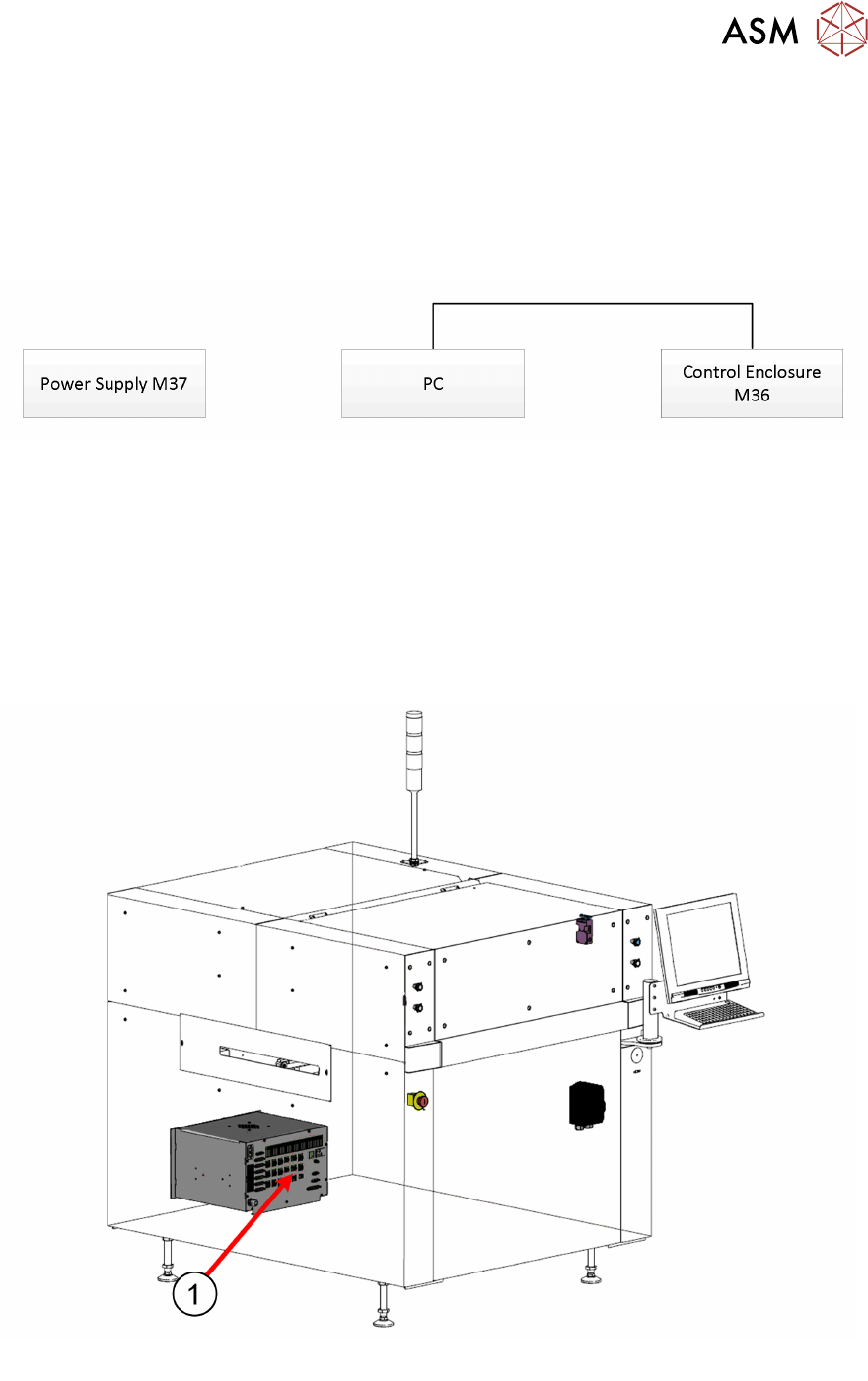

Control System
The Core System has 3 main electrical enclosures.
Power Supply M37
●
All DC unit accepting mains input 85 < 264V AC
●
No transformer tapping
●
No line conditioners needed for poor factory mains supplies
PC Power supply accepting input voltages from 90 > 264V AC
Control Enclosure M36
●
Small, simple unit
●
All internal interconnection by PCB, no internal wiring
Electrical Enclosures with I-Bus PC
1. Power Supply Enclosure
