Page SAMSUNG TECHWIN 10 SM411 F eeder Base Ass'y - DC NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. S tock Apply Reference A-1 J9057101 1A FEEDER_BASE_ ASSY -DC J9057101 1A 1 1 J6702021A SOLENOID V AL VE [K1…
Page
SAMSUNG TECHWIN
9
SM411
Feeder Base Ass'y - DC (4/4)
Reference to Air Ass'y
U2-4-4*2.5
2-J6703034A
ASP330F-01-06S
J9057180A
U2-4-4*2.5
U2-4-4*2.5
J9057168B
U2-4-6*4
J9057172B
U2-4-4*2.5
FEEDER BASE ASSY (DC)
FEEDER BASE ASSY(FRONT-DC)
FEEDER BASE ASSY(REAR-DC)
Feeder Base (DC)
12
12
2
4
4
8
8
2
2
6
7 7
6
19
1
14
17
15
16
1
SM411 MANIFOLD ASSY
J1300284
KQ2U06-00
4-J6711019A
KQ2U06-00
2
Page
SAMSUNG TECHWIN
10
SM411
Feeder Base Ass'y - DC
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90571011A FEEDER_BASE_ASSY-DC J90571011A 1
1 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1
2 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
3 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1
4 J6711256A COUPLER[KD-M5-SA34697KR] 1
5 J6703033A SPEED CON[AS2201F-01-06S] 1
6 J6703034A SPEED CON[ASP330F-01-06S] 1
7 J6711009A ELBOW FITTING [KQ2L06-M5] 1
8 J6711247A ELBOW FITTING[PT18EF] 2
9 J6711001A ELBOW FITTING 1
10 J91741071A FEEDER_INPUT_EXT_BOARD 1
11 J91741070A FEEDER_IO_BOARD 1
12 J6711257A PLUG[KS-4-M5-SA34698KR] 2
13 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A
14 J6712008A PLUG [PT 1/8] 6
15 J67110119B UNION Y FITTING 2 J6711119A
16 J67050004B SILENCER [AN101-01] 4
17 J6703037A CHECK VALVE[AKH06-00] 2
18 J6061601000 DOWEL PIN [MS6-10] 8
19 J1300276 FITTING [KQ2L06-01/PL6-01] 10 J6711007A
20 J90830202B FRONT D-CART PWR CABLE ASSY, D-C 1 J9083202A [9] at 106,107 page
21 J90830203B REAR D-CART PWR CABLE ASSY, D-CA 1 J9083203A [10] at 106,107 page
22 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019 1 [11] at 88 page
23 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1 [12] at 88 page
24 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY SM33-CV028 1 J90831149A [13] at 86 page
25 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY SM33-CV 1 J90831150A [14] at 86 page
Page
SAMSUNG TECHWIN
11
SM411

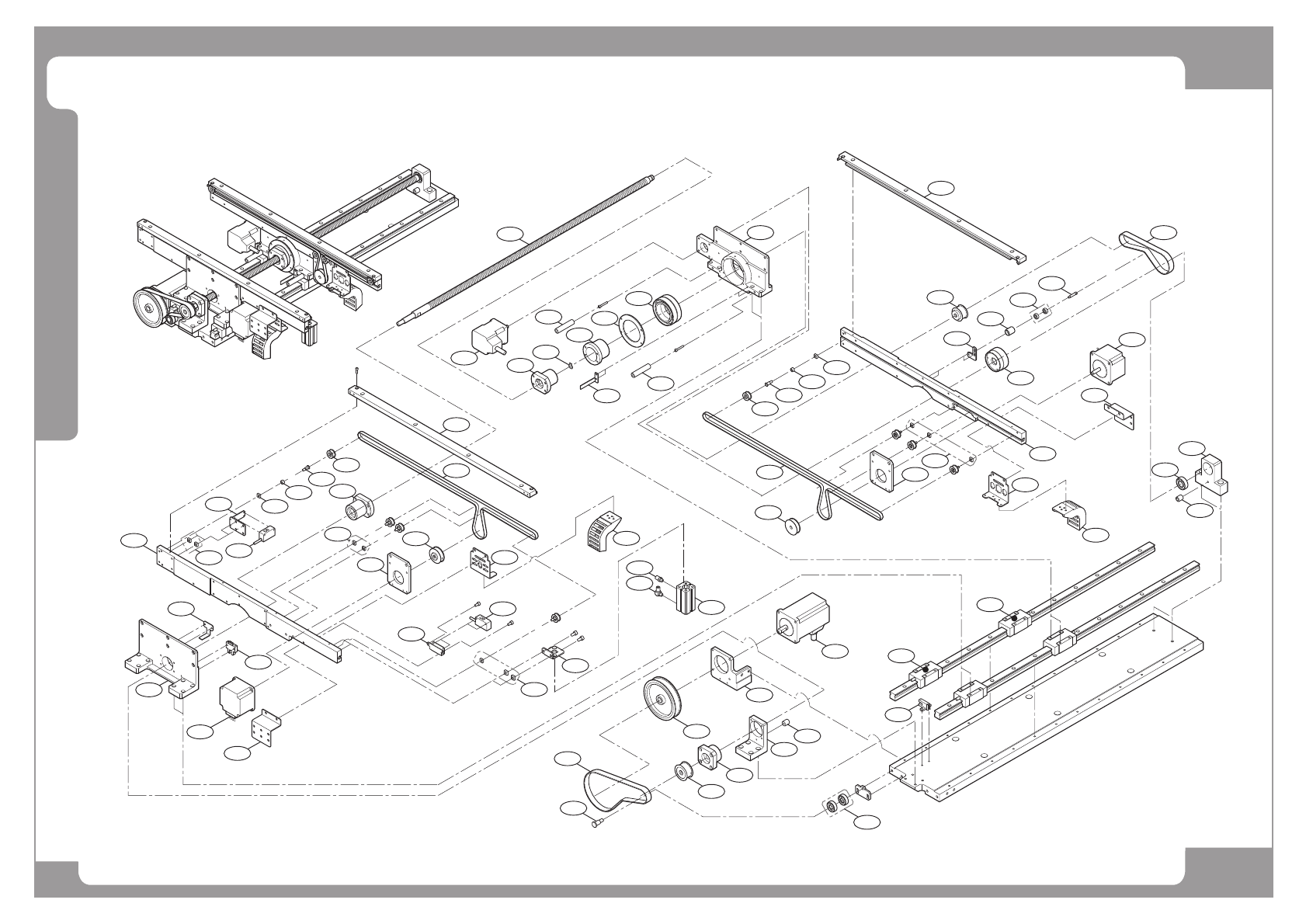

Conveyor Ass'y (1/6)
110
94
105
12
23
23
84
103
90
63
102
110
74
59
79
60
98
98
71
92
83
93
90
64
103
65
70
95
48
67
75
97
69
68
72
23
77
22
10
110
76
23
111
105
73
86
78
10
22
77
23
23
76
111
63
84
89
82
80
62
81
88
16
14
87
96
101
13
66
45
85
104
104
61
61
91
