Page SAMSUNG TECHWIN 11 SM411 C onveyor Ass'y (1/6) 110 94 105 12 23 23 84 103 90 63 102 110 74 59 79 60 98 98 71 92 83 93 90 64 103 65 70 95 48 67 75 97 69 68 72 23 77 22 10 110 76 23 111 105 73 86 78 10 22 77 23 2…
Page
SAMSUNG TECHWIN
10
SM411
Feeder Base Ass'y - DC
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90571011A FEEDER_BASE_ASSY-DC J90571011A 1
1 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1
2 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
3 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1
4 J6711256A COUPLER[KD-M5-SA34697KR] 1
5 J6703033A SPEED CON[AS2201F-01-06S] 1
6 J6703034A SPEED CON[ASP330F-01-06S] 1
7 J6711009A ELBOW FITTING [KQ2L06-M5] 1
8 J6711247A ELBOW FITTING[PT18EF] 2
9 J6711001A ELBOW FITTING 1
10 J91741071A FEEDER_INPUT_EXT_BOARD 1
11 J91741070A FEEDER_IO_BOARD 1
12 J6711257A PLUG[KS-4-M5-SA34698KR] 2
13 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A
14 J6712008A PLUG [PT 1/8] 6
15 J67110119B UNION Y FITTING 2 J6711119A
16 J67050004B SILENCER [AN101-01] 4
17 J6703037A CHECK VALVE[AKH06-00] 2
18 J6061601000 DOWEL PIN [MS6-10] 8
19 J1300276 FITTING [KQ2L06-01/PL6-01] 10 J6711007A
20 J90830202B FRONT D-CART PWR CABLE ASSY, D-C 1 J9083202A [9] at 106,107 page
21 J90830203B REAR D-CART PWR CABLE ASSY, D-CA 1 J9083203A [10] at 106,107 page
22 J90831142A F_DOCKING_CART_SNS_CABLE_ASSY SM33-CV019 1 [11] at 88 page
23 J90831143A R_DOCKING_CART_SNS_CABLE_ASSY SM33-CV020 1 [12] at 88 page
24 J90831149B F_DOCKING_CART_SOL_CABLE_ASSY SM33-CV028 1 J90831149A [13] at 86 page
25 J90831150B REAR_DOCKING_CART_SOL_CABLE_ASSY SM33-CV 1 J90831150A [14] at 86 page
Page
SAMSUNG TECHWIN
11
SM411

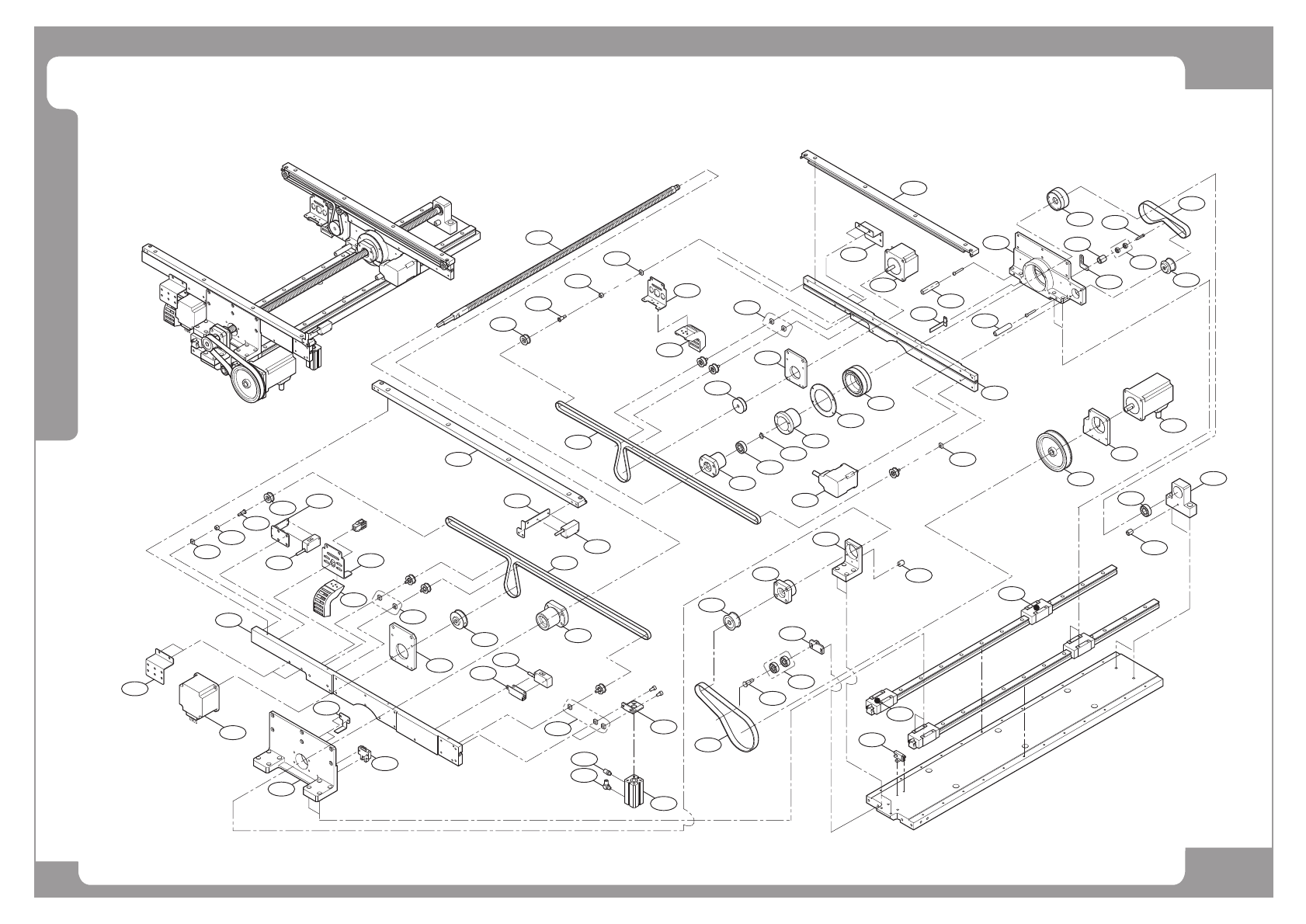

Conveyor Ass'y (1/6)
110
94
105
12
23
23
84
103
90
63
102
110
74
59
79
60
98
98
71
92
83
93
90
64
103
65
70
95
48
67
75
97
69
68
72
23
77
22
10
110
76
23
111
105
73
86
78
10
22
77
23
23
76
111
63
84
89
82
80
62
81
88
16
14
87
96
101
13
66
45
85
104
104
61
61
91
Page
SAMSUNG TECHWIN
12
SM411
Conveyor Ass'y (2/6)
94
12
10
22
77
23
92
105
71
72
23
111
76
110
73
105
100
23
78
66
69
68
63
90
84
103
60
79
74
110
56
105
102
83
98
98
64
89
82
62
80
81
88
23
77
22
10
76
111
23
23
93
84
103
90
110
65
101
99
95
48
53
67
75
97
45
16
87
96
14
13
86
85
104
104
59
61
61
63
91
