Page SAMSUNG TECHWIN 17 SM411 C onveyor Ass'y NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. S tock Apply Reference A-1 J90531068 A SM420_LR_CONVEYOR_ASSY J 90531068A 1 1 J66021005A BEL T_WIDTH_S YNC 025-XL-1…
Page
SAMSUNG TECHWIN
16
SM411

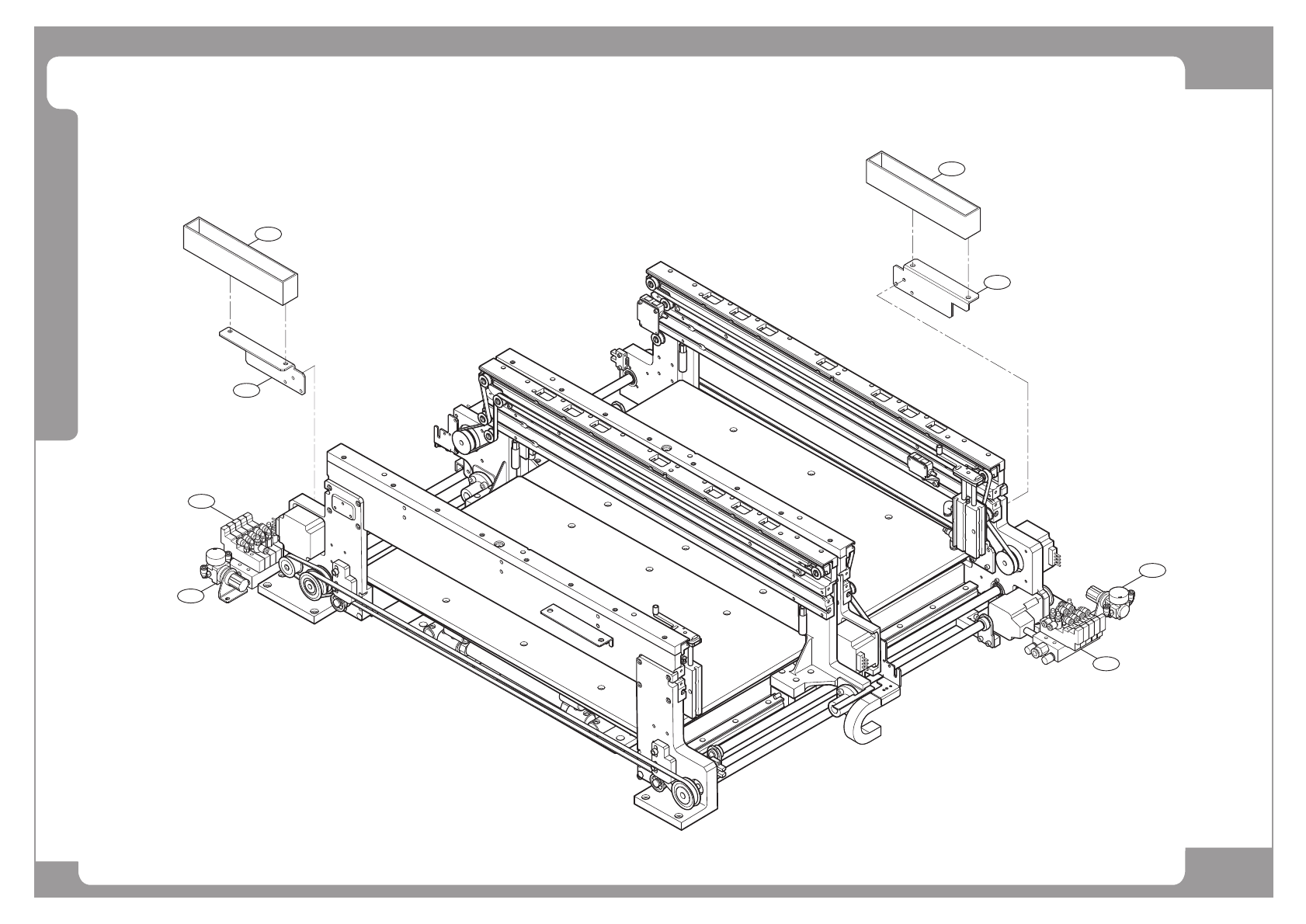

Conveyor Ass'y (6/6)
56
56
57
57
107
107
109
109
Page
SAMSUNG TECHWIN
17
SM411
Conveyor Ass'y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90531068A SM420_LR_CONVEYOR_ASSY J90531068A 1
1 J66021005A BELT_WIDTH_SYNC 025-XL-1457 2
2 J70531024A BRACKET_TAIL J70531024A 4
3 J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2
4 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2
5 J72531002A BUSH_TAIL J72531002A 4
6 J71531045B CLAMP_FRONT_FRAME 2
7 J71531046B CLAMP_REAR_FRAME 2
8 J66141001C LEAD_SCREW 4 J66141001B
9 J67011007B CYLINDER CQ2B6-2-CJK2341 2
10 J66191022A IDLER_ASSY_195 A-1_19.5 6 J72531001A
11
12 J3212002A PHOTO SENSOR 4
13 J3212004A PHOTO SENSOR 2
14 J6601008A BALL BEARING 4
15 J66011035A BALL_BUSH LMU5 16
16 J6601109A BALL BEARING[608ZZ] 4
17 J6607016A LM SLIDE 4
18 J6703007A THROTTLE VALVE(ELBOW) 2
19 J6711001A ELBOW FITTING 4
20 J66191025A IDLER_ASSY_95 A-4_9.5 4 J7053047A
21
22
23 J7053184A SQUARE NUT M4 8
24 J7153010B ADJUST SHAFT [J7153010B] 8
25 J7153033A BUSH SPACER 8
26 J7153034A CLAMP SHAFT 8
Page
SAMSUNG TECHWIN
18
SM411
Conveyor Ass'y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
27 J7153036A SLIDE GUIDE 2
28 J7153373A FIDUCIAL DISK[J7153373A] 12
29 J7253008A STOPPER 8
30 J7253009B STOPPER 2 [J7253009B] 8
31 J71531010B LM_BASE 2
32 J66071087A LM_GUIDE_WORK 2 J66071015A
J66071088A LM_GUIDE_SHUTTLE 2
33 J70531017B PCB_GUIDE_FC J70531017A 2
34 J70531016B PCB_GUIDE_RC J70531016A 2
35 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2
36 J70531015A STOPPER_BRACKET_WORK J70531015A 2
37 J70531050A STOPPER_TOP_PLATE J70531050A 2
38 J70531029B STOPPER_POST 2 J70531029A
39 J71531006A SUPPORT_BRACKET_L J71531006A 2
40 J71531005A SUPPORT_BRACKET_S J71531005A 2
41 J70531014B SUPPORT_FIX_RAIL_LEFT 2 J70531014A
42 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2
43 J70531012C SUPPORT_MOVE_RAIL_TL 2 J70531012B
44 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2
45 J70531028A TENSION_BEARING_PIN J70531028A 4
46 J70531027A TENSION_BRACKET J70531027A 4
47 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 2
48 J71531008A PULLEY_W_MOTOR J71531008A 2
49 J71531024A WIDTH_PULLEY J71531024A 2
50 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2
51 J66021006A BELT_WORK MAM-5P-1550-6W 4
52 J71531013B WORK_FRONT_FRAME J71531013A 2
