Page SAMSUNG TECHWIN 23 SM411 B ackup Table Ass’y NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. S tock Apply Reference A-1 J90531080A SM420_BUT_ASSY J 90531080A 2 J90531080A 1 J70531054A BUT_SENSOR_DOG J7 0531054…
Page
SAMSUNG TECHWIN
22
SM411

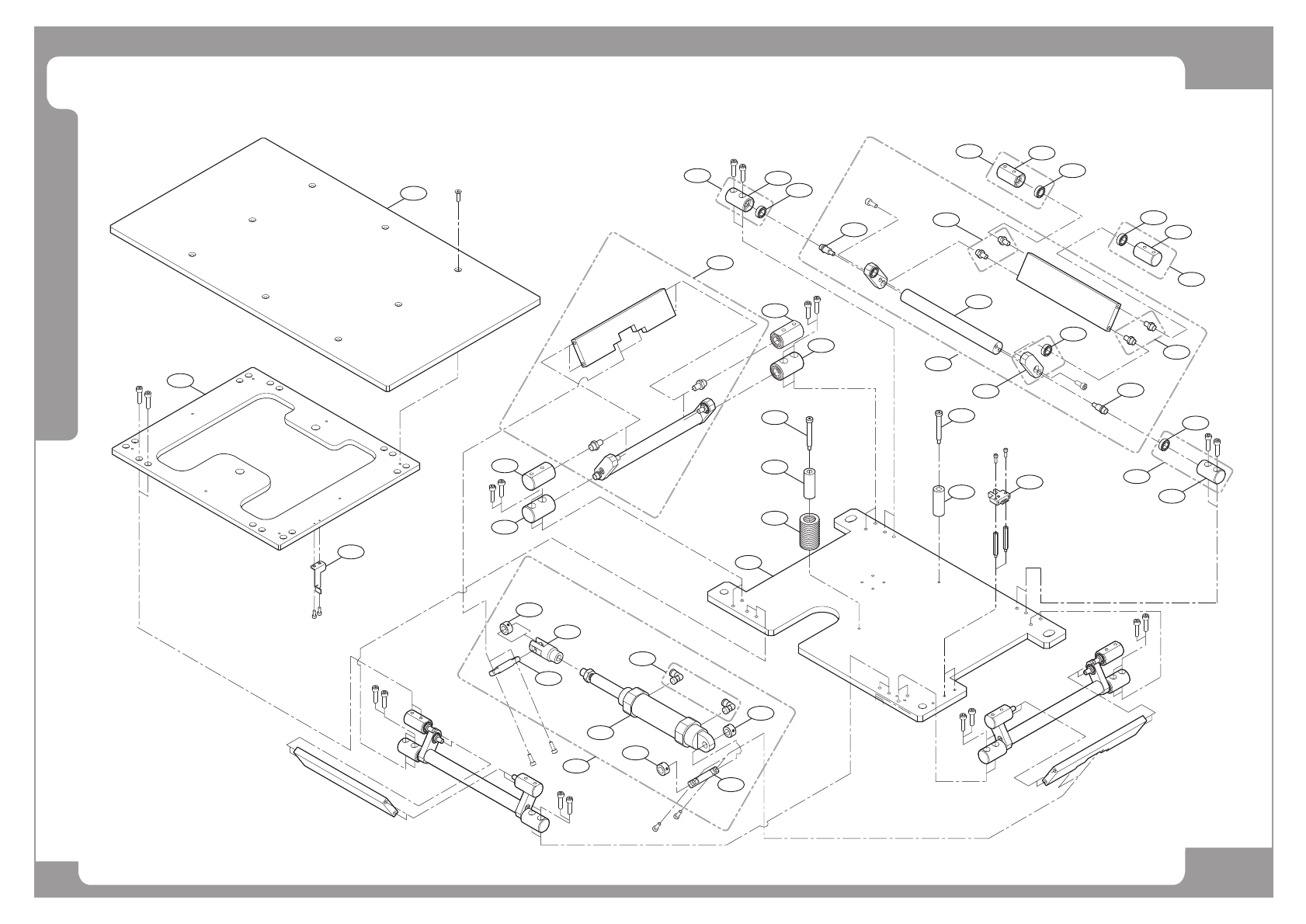

Backup Table Ass’y
8
7
17
10
24
22
2
22
23
24
22
24
22
24
1
3
4
5
6
8
6
9
11
11
12
13
15
14
16
18
18
19
19
19
20
21
12
23
15
25
15
15
25
15
Page
SAMSUNG TECHWIN
23
SM411
Backup Table Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90531080A SM420_BUT_ASSY J90531080A 2 J90531080A
1 J70531054A BUT_SENSOR_DOG J70531054A 1 J70531054A
2 J70531052C LOWER_PLATE 1 J70531052B J70531052B
3 J70531051C BACK_UP_PLATE 1 J70531051B J70531051B
4 J70531053C UPPER_PLATE 1 J70531053A J70531053B
5 J3212002A PHOTO SENSOR 1 EE-SX670A
6 J6015064000 SHOULDER SCREW[MSB6-40] 2 MSB6-40
7 J6107047A SPRING[SWU26-70] 1 SWU26-70
8 J6308003A URETHAN CUSHION[AXNSK15-40] 1 AXNSK15-40
9 J6711028A ELBOW FITTING [KQ2L04-01] 2 KQ2L04-01
10 J90531003A DRIVING_LINK_ASSY 2 J90531003A
11 J7053792A UPPER LINK PIN[J7053792A] 4 J7053792A
12 J7053793A LOWER LINK PIN[J7053793A] 2 J7053793A
13 J7053796A LOWER LINK SHAFT[J7053796A] 1 J7053796A
14 J70530797B LOWER LINK END 1 J7053797A J7053797A
15 J6601005A BALL BEARING 1 688ZZ
16 J90531004A FREE_LINK_ASSY 2 J90531004A
17 J90531005A BUT_CYLINDER_ASSY 1 J90531005A
18 J70530794B CYLINDER JOINT PIN 2 J70530794B
19 J7053795A RING FIXER[J7053795A] 3 J7053795A
20 J6619062A CYLINDER JOINT[Y-032B] 1 Y-032B
21 J67010088B CYLINDER CM2C32-50-XC3BB 1 CM2C32-50-XC3BB
22 J90531006A LOWER_BEARING_ASSY 8 J90531006A
23 J7053790A LOWER BEARING HOLDER[J7053790A] 1 J7053790A
24 J90531007A UPPER_BEARING_ASSY 8 J90531007A
25 J7053791A UPPER BEARING HOLDER[J7053791A] 1 J7053791A
Page
SAMSUNG TECHWIN
24
SM411

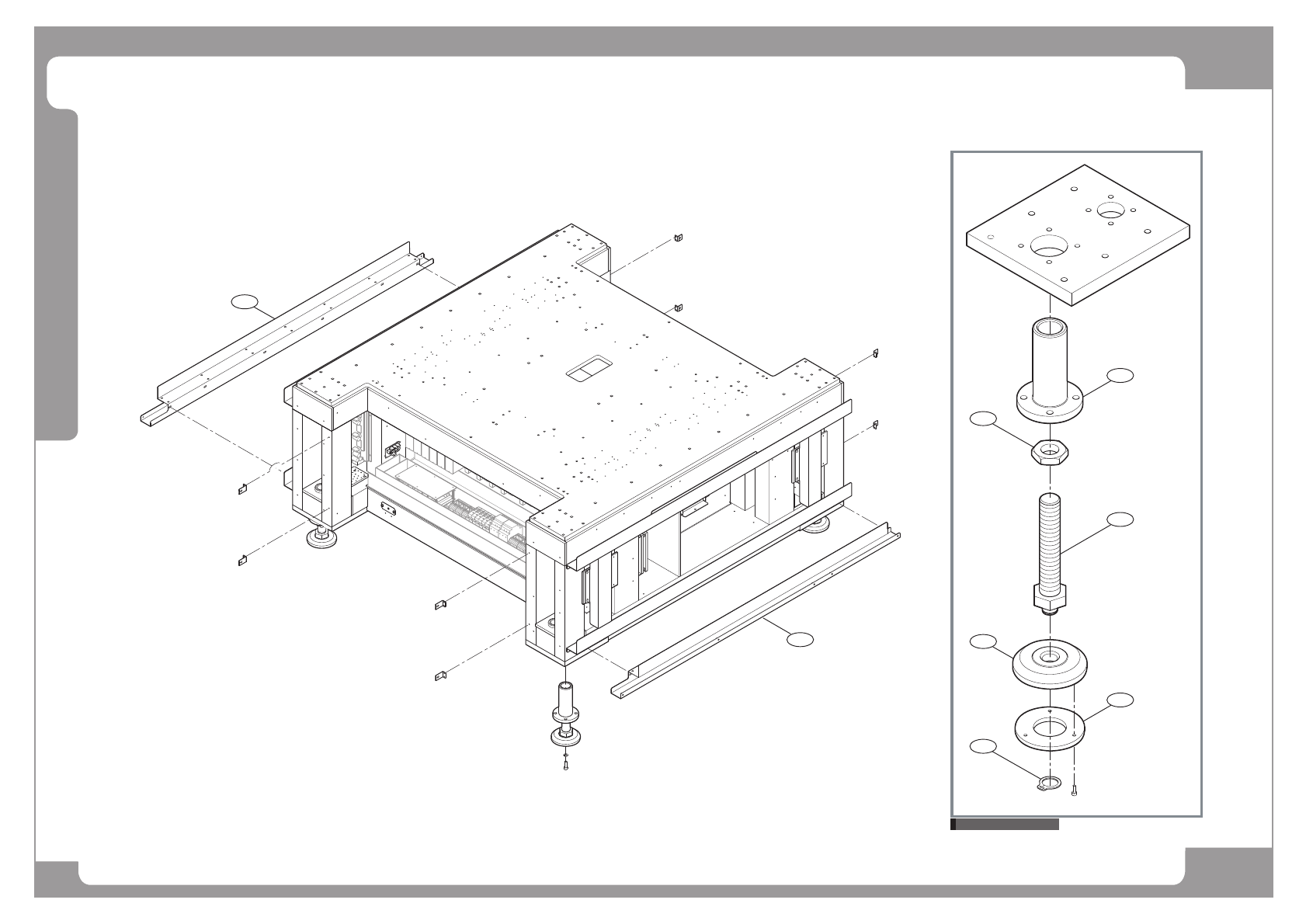

Base Frame Ass’y
LC1D096BDLC1D096BD
LC1D096BDLC1D096BD
Base Frame Ass'y
1
2
3
4
5
6
7
8
