Page SAMSUNG TECHWIN 47 SM411 X-Y Frame Ass’y (5/5) 34 6 9 33 29 32 V acuum Generator Ass'y Driver BOX Ass'y
Page
SAMSUNG TECHWIN
46
SM411
X-Y Frame Ass’y (4/5)
F. R
R.L
35
21
21
24
36
23
24
24
25
28
27
26
22
22
23
25
28
27
26
35
36
24
Page
SAMSUNG TECHWIN
47
SM411
X-Y Frame Ass’y (5/5)
34
6
9
33
29
32
Vacuum Generator Ass'y
Driver BOX Ass'y
Page
SAMSUNG TECHWIN
48
SM411

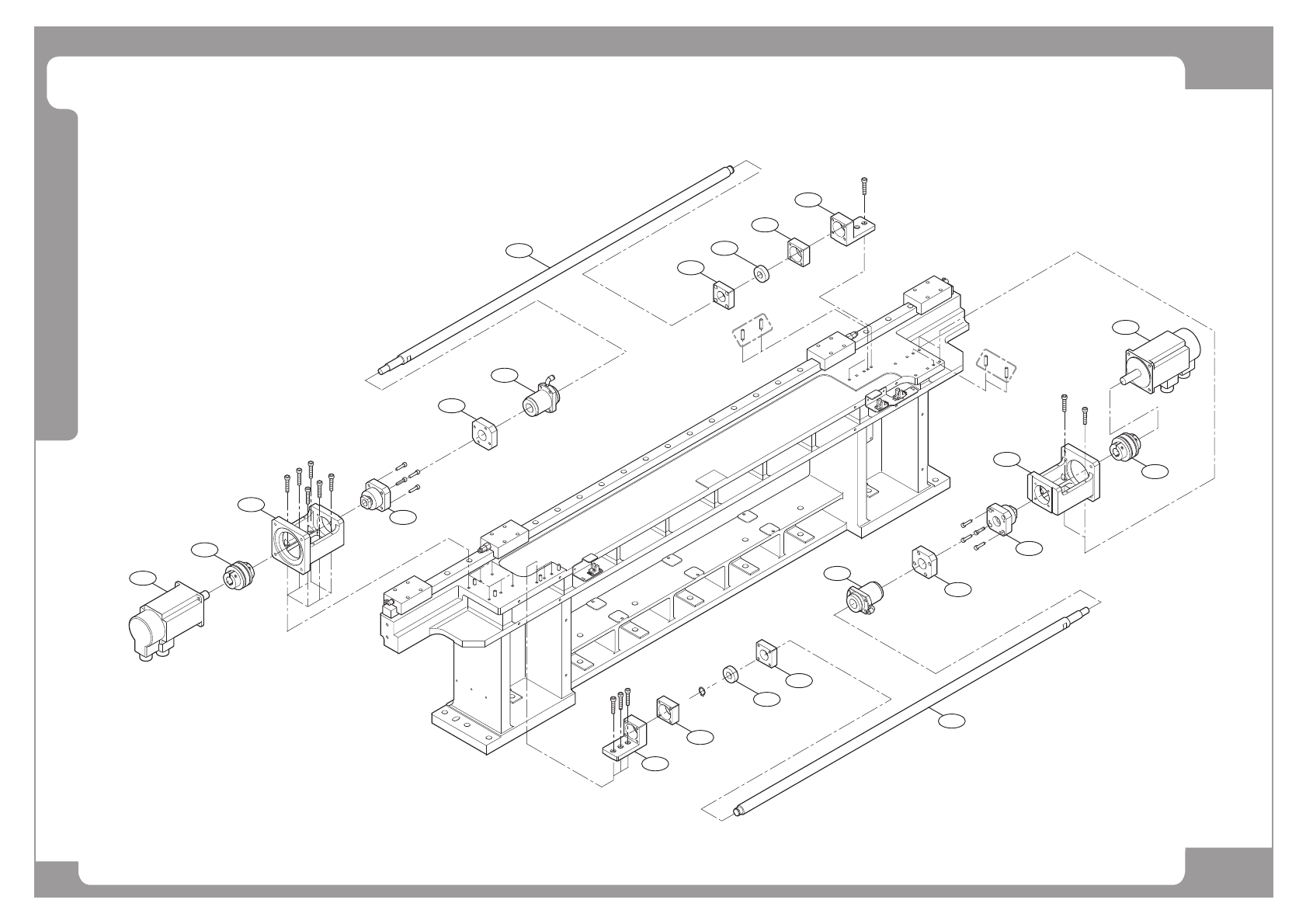

X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90541011A X-Y_ASSY J90541011A 1
1 J66061003A X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1
2 J6601008A BALL BEARING 1
3 J71541009A BRG_SUPPORT-X J71541009A 1
4 J71541010A BRG_HOUSING-X J71541010A 1
5 J1300517 C-RING [10mm (SHAFT)] 1
6 J7354024A CABLE CUSHION Y[J7354024A] 1
7 J7354023A CABLE CUSHION X[J7354023A] 4
8 J71541020B HEAD_BASE 1
9 J7054256A CUSHION BRACKET Y[J7054256A] 1
10 J7054255A CUSHION BRACKET X[J7054255A] 4 J70540255B
11 J70541105A GREASE_NIPPLE_NUT J70541105A 4
12 J70541355A Y_NIPPLE_PLATE 2 J70541099A
13 J70541038A SENSOR_DOG_X J70541038A 2
14 J70541008A SENSOR_DOG-Y J70541008A 1
15 J70541007A BRACKET_CABLE_CHAIN-Y J70541007A 1
16 J6719025A GREASE NIPPLE [M6*1.0-STRAIGHT] 4
17 J66071014A LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2
18 J6061601000 DOWEL PIN [MS6-10] 4
19 J3212022A LIMIT SENSOR [EE-SX674] 3
20 J1300502 PIN DOWEL [MS5-10] 4 J6061501036
21 J70541005C Y_MOTOR_BLOCK 1 J70541005B
22 J6601124A SUPPORT UNIT[FK-15] 1
23 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1
24 J66061002A Y-BALL_SCREW J66061002A 1
25 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1
26 J70541006B BS_REAR_SUPPORT 1 J70541006A
