Page
SAMSUNG TECHWIN
47
SM411

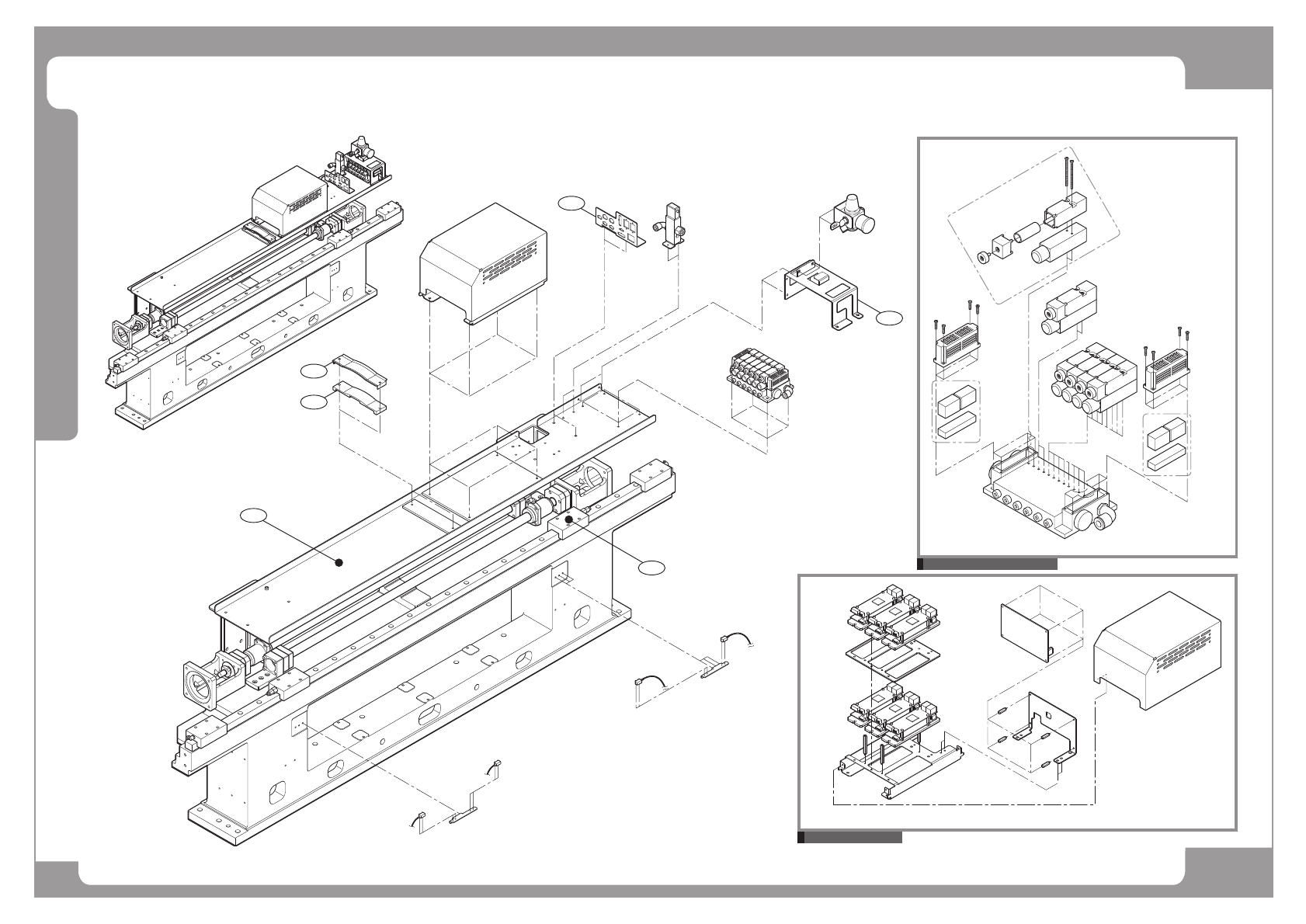

X-Y Frame Ass’y (5/5)
34
6
9
33
29
32
Vacuum Generator Ass'y
Driver BOX Ass'y
Page
SAMSUNG TECHWIN
48
SM411
X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90541011A X-Y_ASSY J90541011A 1
1 J66061003A X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1
2 J6601008A BALL BEARING 1
3 J71541009A BRG_SUPPORT-X J71541009A 1
4 J71541010A BRG_HOUSING-X J71541010A 1
5 J1300517 C-RING [10mm (SHAFT)] 1
6 J7354024A CABLE CUSHION Y[J7354024A] 1
7 J7354023A CABLE CUSHION X[J7354023A] 4
8 J71541020B HEAD_BASE 1
9 J7054256A CUSHION BRACKET Y[J7054256A] 1
10 J7054255A CUSHION BRACKET X[J7054255A] 4 J70540255B
11 J70541105A GREASE_NIPPLE_NUT J70541105A 4
12 J70541355A Y_NIPPLE_PLATE 2 J70541099A
13 J70541038A SENSOR_DOG_X J70541038A 2
14 J70541008A SENSOR_DOG-Y J70541008A 1
15 J70541007A BRACKET_CABLE_CHAIN-Y J70541007A 1
16 J6719025A GREASE NIPPLE [M6*1.0-STRAIGHT] 4
17 J66071014A LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2
18 J6061601000 DOWEL PIN [MS6-10] 4
19 J3212022A LIMIT SENSOR [EE-SX674] 3
20 J1300502 PIN DOWEL [MS5-10] 4 J6061501036
21 J70541005C Y_MOTOR_BLOCK 1 J70541005B
22 J6601124A SUPPORT UNIT[FK-15] 1
23 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1
24 J66061002A Y-BALL_SCREW J66061002A 1
25 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1
26 J70541006B BS_REAR_SUPPORT 1 J70541006A
Page
SAMSUNG TECHWIN
49
SM411
X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
27 J70541030A BRG_HOUSING_Y J70541030A 1
28 J6601020A BALL BEARING 1
29 J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1
30 J66011017A SUPPORT_UNIT FK12-MP5 1
31 J72541002A CUSHION_CRASH J72541002A 2
32 J70541104B VACUMM_GEN_BKT J70541104A 1 J70541104A
33 J70541101D CONNECTOR_PANEL-Y 1 J70541101A
34 J70541367B Y_CABLE_DUCT_SUPPORT-2 1 J70541012B
35 J3108064A SERVO MOTOR[MSMA102P1C01] 4
36 J6612036A COUPLING 4 J6612036A
37 J6612035A COUPLING 2 J6612035A
38 J72540016E INNER GUIDE-MAT J72540016E 6 J7254016D
39 J71541079B HEAD_TOP_COVER 2
40 J71541078A HEAD_FRONT_COVER J71541078A 2
41 J3108063A SERVO MOTOR[MSMA082P1A01] 2
42 J67111016A STRAIGHT_FITTING KQ2H04-M6 1
43 J72541005B CUSHION_X_REAR 1
44 J72541003A CUSHION_X_FRONT J72541003A 1
