Page SAMSUNG TECHWIN 51 SM411 F ixed ANC Ass’y NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. S tock Apply Reference A-1 J90561003A ANC_FRONT_REAR_A SSY J905610 03A 1 1 J90561001A ANC_ASSY J9 0561001A 1 2 J7156100…
Page
SAMSUNG TECHWIN
50
SM411
Fixed ANC Ass’y
34
32
30
29
27
28
25
26
23
24
21
22
20
19
17
18
16
15
13
14
11
12
10
9
7
8
6
5
3
4
2
1
35
33
31
34
32
30
29
27
28
25
26
23
24
21
22
20
19
17
18
16
15
13
14
11
12
10
9
7
8
6
5
3
4
2
1
35
33
31

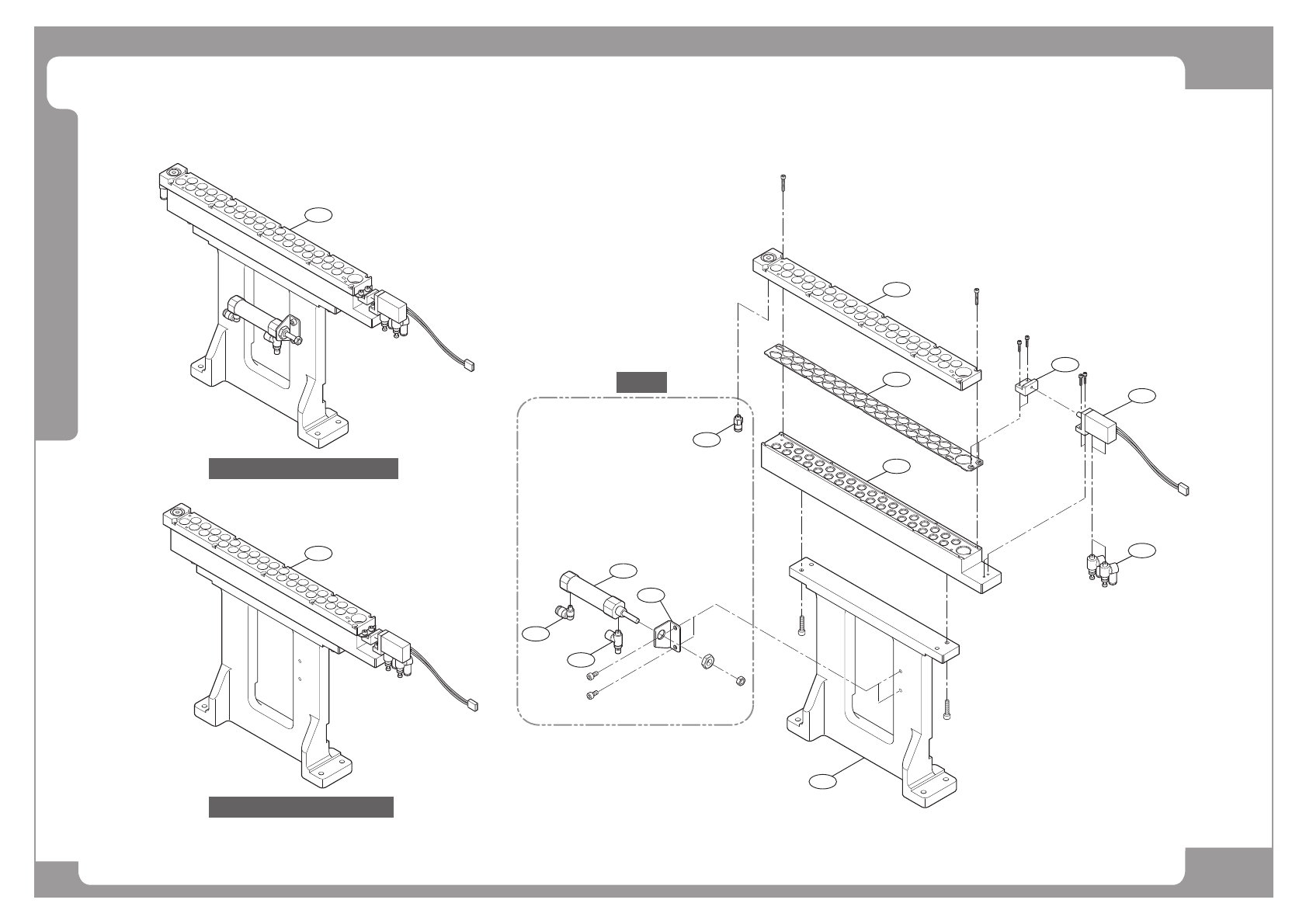

Front Fixed ANC Ass'y
Front
Rear Fixed ANC Ass'y
1
14
2
3
4
5
6
8
7
34
32
30
29
27
28
25
26
23
24
21
22
20
19
17
18
16
15
13
14
11
12
10
9
7
8
6
5
3
4
2
1
35
33
31
9
10
11
12
13
Page
SAMSUNG TECHWIN
51
SM411
Fixed ANC Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90561003A ANC_FRONT_REAR_ASSY J90561003A 1
1 J90561001A ANC_ASSY J90561001A 1
2 J71561004A ANC_SUPPORT J71561004A 1
3 J7156043B SHUTTER BRACKET[J7156043B] 1
4 J6703028A SPEED CONTROLLER [SS4-M5MA] 2
5 J6701029A AIR CYLINDER [BDAS6*5-1A-ZC153A2] 1
6 J70561001A CYLINDER_BRACKET J70561001A 1
7 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
8 J6703031A SPEED CONTROLLER[AS1211F-M5-04] 1
9 J6711147A STRAIGHT FITTING KQ2H04-M5 1
10 J67011016B AIR_CYLINDER 1
11 J71561001B ANC_PLATE_1 1
12 J71561002B ANC_NOZZLE_SHUTTER 1
13 J71561003B ANC_MAIN_BODY 1
14 J90561002A ANC_ASSY_REAR J90561002A 1
15 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1 [44] at 89 page
Page
SAMSUNG TECHWIN
52
SM411
Windows Ass’y
1
5
5
2
3
4
6
1
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
