Page SAMSUNG TECHWIN 55 SM411 C over Ass’y NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. S tock Apply Reference A-1 J90521 003A COVER_ASSY J9052100 3A 1 1 J70521027B UPPER COVER FL 2 J70521026A 2 J91651041A COVER…
Page
SAMSUNG TECHWIN
54
SM411

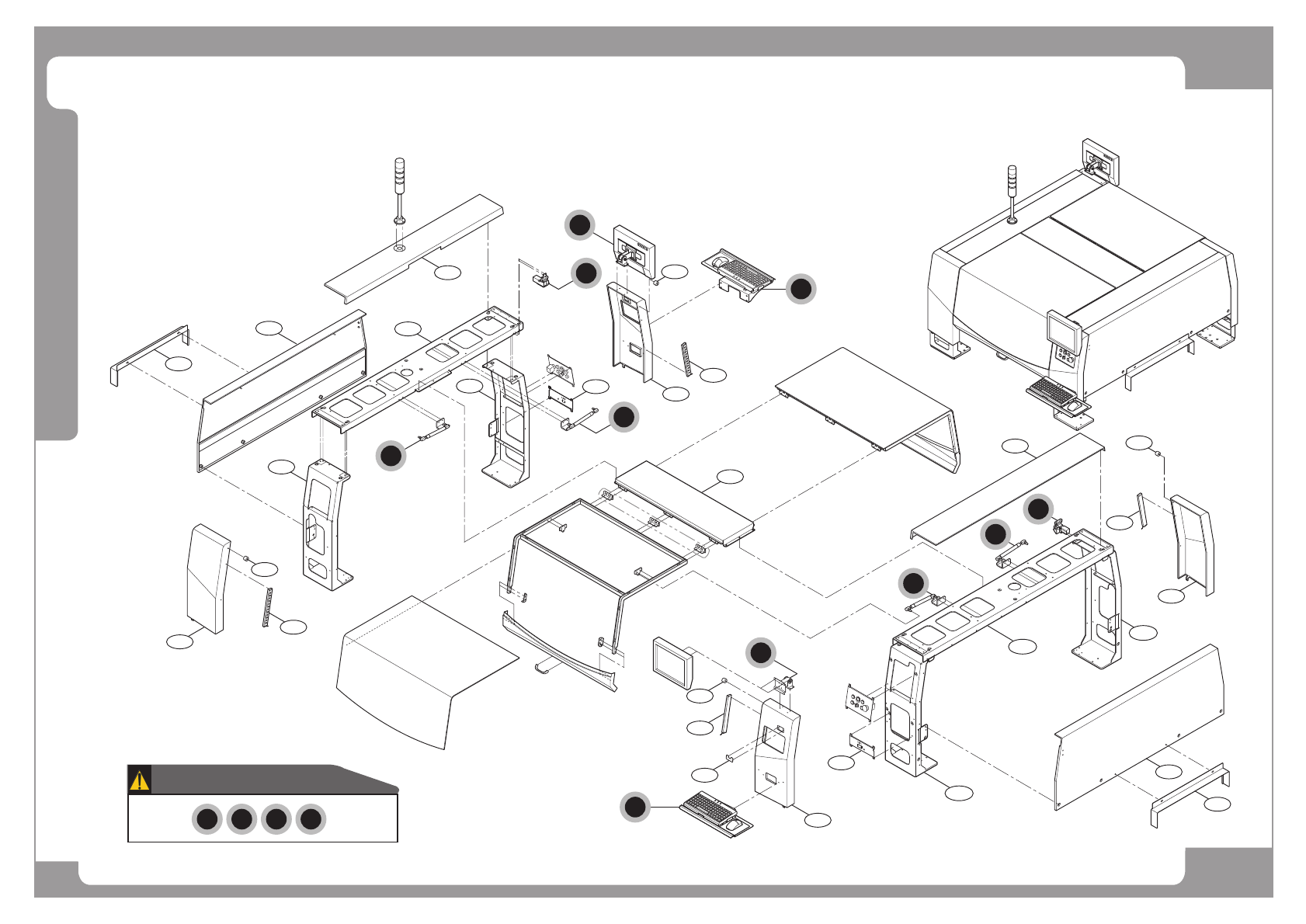

Cover Ass’y (1/3)
Refer to 'Detail View'
A B C D
A
C
D
D
C
11
5
14
15
2
3
6
13
6
4
13
1
13
12
16
13
4
4
4
8
2
7
15
14
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
A
A
B
9
10
STOP
RES
ET
SELECT
FEEDER
CHANGE
S
TART
READY
A
B
16
1
Page
SAMSUNG TECHWIN
55
SM411
Cover Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90521003A COVER_ASSY J90521003A 1
1 J70521027B UPPER COVER FL 2 J70521026A
2 J91651041A COVER FRAME TOP 1 ASSY 2
3 J70521039C TOP SIDE COVER R 1 J70521039A
4 J3212049A AREA SENSOR 4
5 J70521040C TOP SIDE COVER L 1 J70521040A
6 J70521027B UPPER COVER FL 2 J70521027A
7 J91651046A COVER_FRAME_SUB_R-ASSY 1 J91651048A
8 J70521376C COVER FRAME REAR R 1 J70521376B
9 J70521379C COVER FRAME FRONT L 1 J70521379B
10 J91651047A COVER FRAME SUB L ASSY 1
11 J70521378B TOP COVER-2 1 J70521378A
12 J7070297A MONITOR CABLE COVER 1
13 J73520001B DOOR CUSHION 4
14 J70521053B CONVEYOR COVER 2 J70521053A
15 J70521038B UPPER SIDE COVER 2 J70521038A
16 J70521025B SM330 LOWER OP PANEL 2
A-2 J90721014A NON_SCANNER_ASSY J90721014A 1
A-3 J90721015A LT_SCANNER_ASSY_LR J90721015A 1
A-4 J90721015A LT_SCANNER_ASSY_LR J90721015A 1
A-5 J91731014A AREA_SENSOR_ASSY J91731014A 1
Page
SAMSUNG TECHWIN
56
SM411

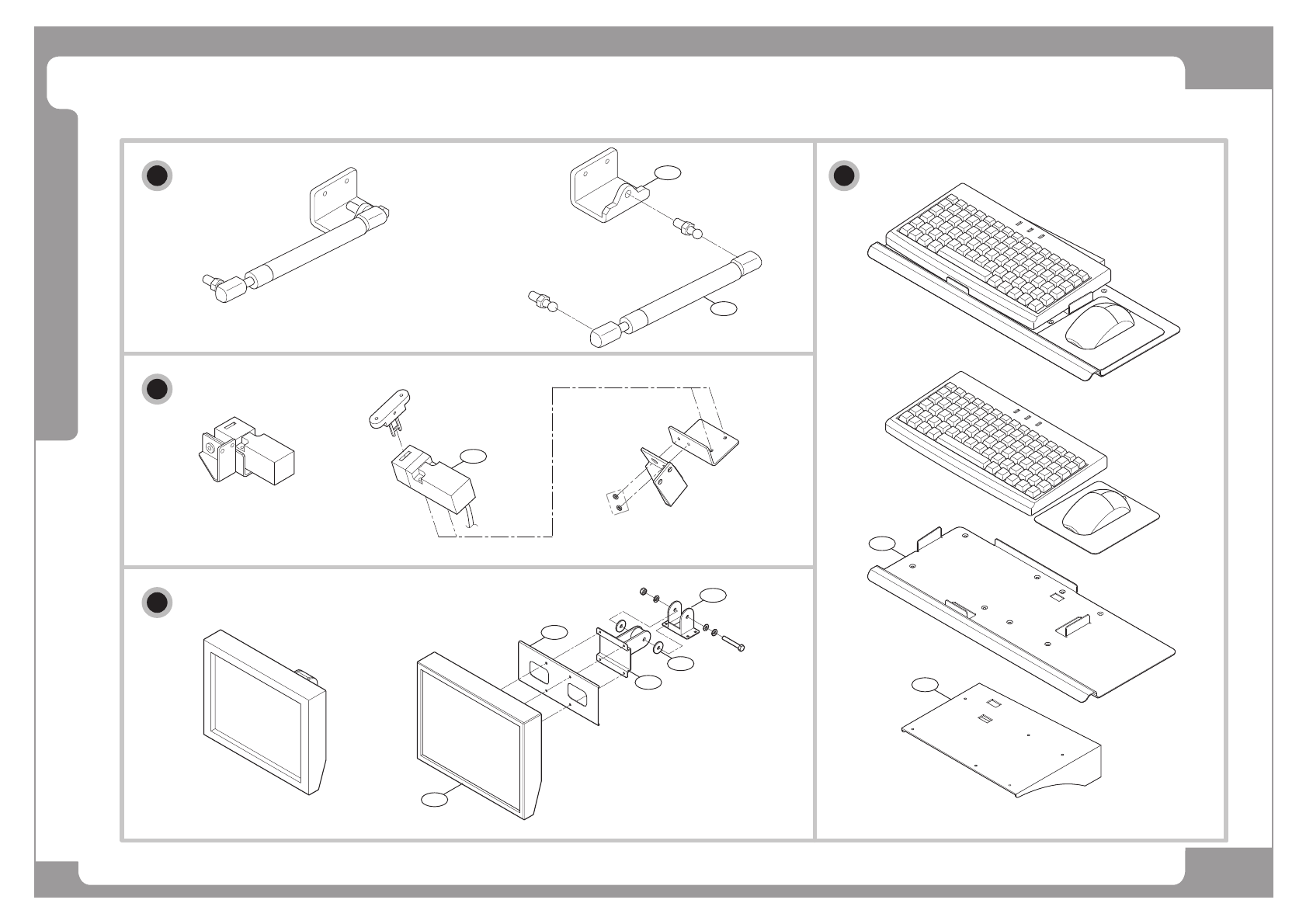

Cover Ass’y (2/3)
A
B
C
D
OMRON
D4DS
8
9
1
2
3
4
5
7
6
10
