Page
SAMSUNG TECHWIN
58
SM411

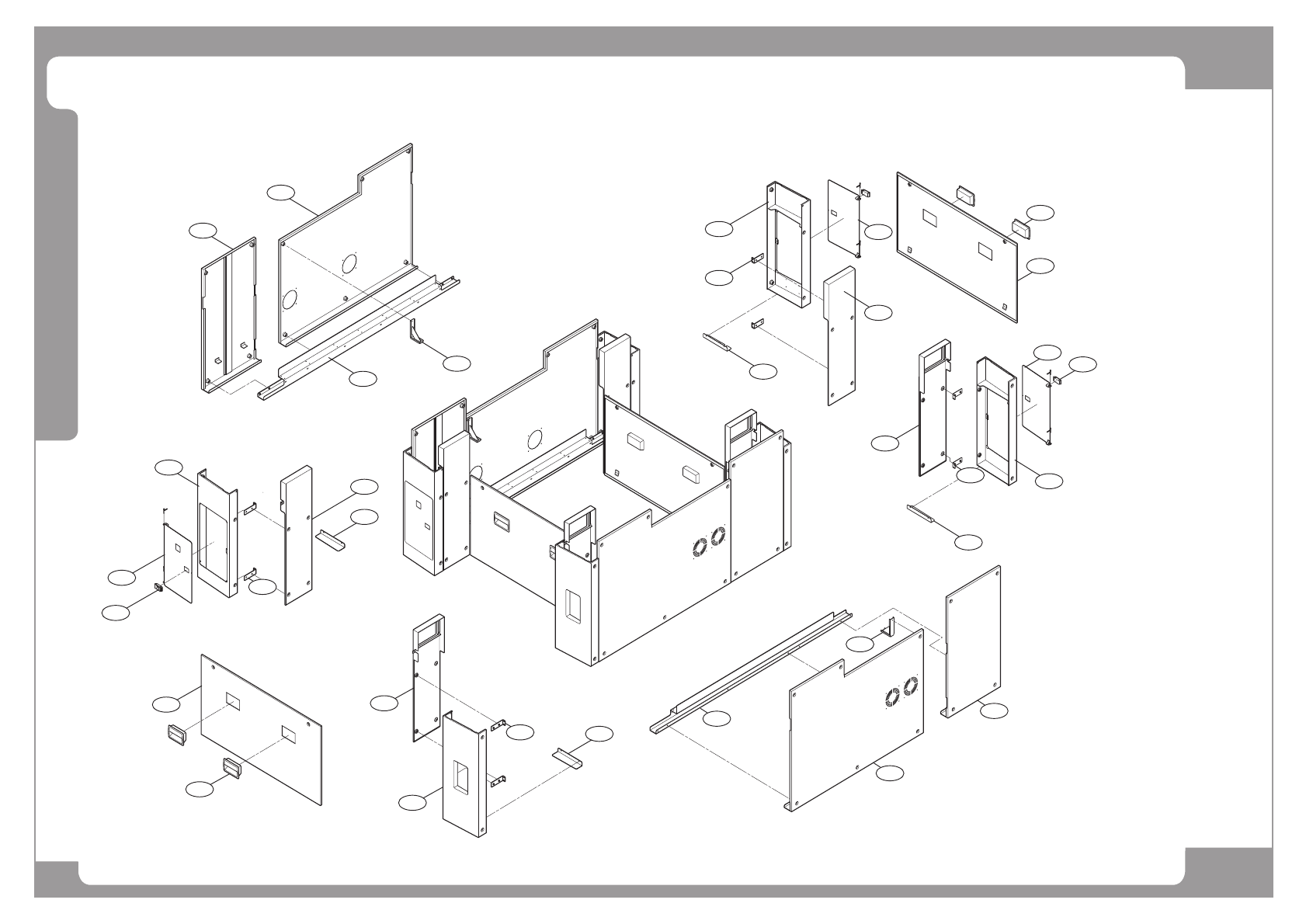

Cover Ass’y (3/3)
5
11
6
18
17
7
14
20
21
7
10
12
13
16
1
2
6
12
3
1
2
9
10
14
19
21
4
15
9
8
11
22
22
Page
SAMSUNG TECHWIN
59
SM411
Cover Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J1300101 DRAWER PULL 4 HD-108
2 J70521033B COVER LFM 2 J70521033A
3 J70521390A LOWER OPEN DOOR A 1
4 J70521386A LOWER CABLE DUCT R-2 1
5 J70521387A LOWER CABLE DUCT L-2 1
6 J70521391A LOWER OPEN DOOR B 2
7 J70521383B LOWER COVER L-2 2
8 J70521382B LOWER COVER R-2 1
9 J70521388A CATCH BRACKET F-2 4
10 J70521389A CATCH BRACKET R-2 4
11 J70521392A INNER SIDE COVER R-2 2
12 J70521393A INNER SIDE COVER L-2 2
13 J70521385B LOWER COVER RL-2 1
14 J70521049B SIDE COVER SUPPORT 2 J70521049A
15 J70521045B BOTTOM COVER FR 1 J70521045A
16 J70521046B BOTTOM COVER FR 1 J70521046A
17 J70521047B BOTTOM COVER FR 1
18 J70521048B BOTTOM COVER FR 1 J70521048A
19 J70521034D LOWER_SIDE_COVER_R 1 J70521034A
20 J70521035D LOWER SIDE COVER L 1 J70521035A
21 J70521036D LOWER SIDE COVER 2 J70521036A
22 J64091022A SLIDE_LATCH 3
Page
SAMSUNG TECHWIN
60
SM411
Control Rack Ass’y
17
7
8
9
9
10
11
12
13
14
15
16
3
4
2
1
5
6
18
