Page SAMSUNG TECHWIN 63 SM411 E lectric Panel Ass’y (2/2) 17 LC1D096B D LC1D096B D 13 17 12 13 12 14 18 18 F. R R.L C1D0
Page
SAMSUNG TECHWIN
62
SM411
Electric Panel Ass’y (1/2)
9
LC1D096BD
LC1D096BD
11
3
15
2
3
7
8
6
10
5
10
4
6
1
Cover Ass'y
16
16
Page
SAMSUNG TECHWIN
63
SM411

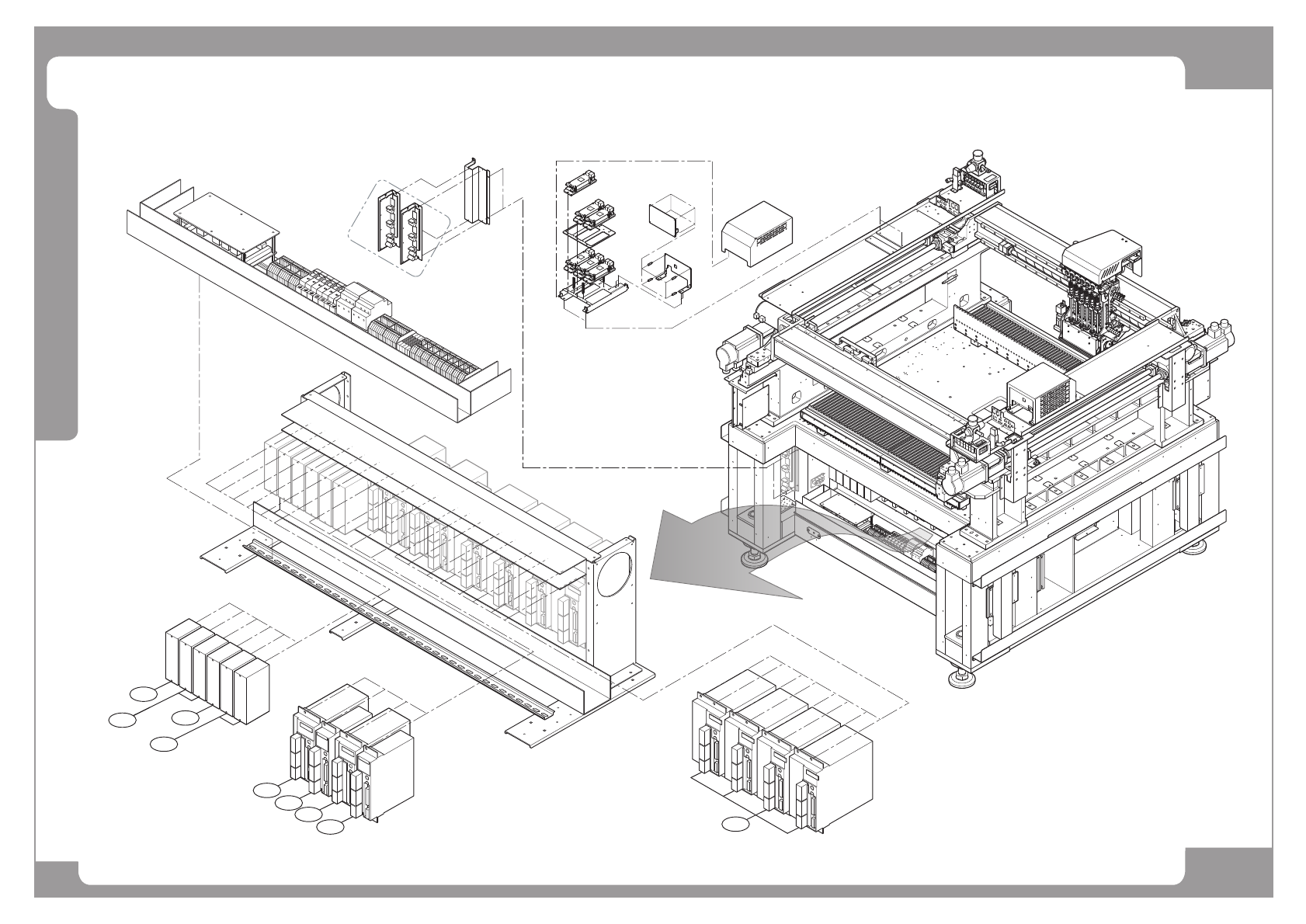

Electric Panel Ass’y (2/2)
17
LC1D096B
D
LC1D096B
D
13
17
12
13
12
14
18
18
F. R
R.L
C1D0
Page
SAMSUNG TECHWIN
64
SM411
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90781004A REAR_ELECTRIC_PANEL_ASSY J90781004A 1
1 J3501040A MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 2
2 J3603015A CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 2
3 J3603016A CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1
4 J3601018A FUSE[250V 5A] 3
5 J3601019A FUSE[250V 10A] 2
6 J3716042A STOPPER[UA-51] 2
7 J3716044A TEMINAL BLOCK[WDU 2.5] 63
8 J3716046A END PLATE[WAP2.5-10] 11
9 J3716047A CROSS CONNECTION[ZQV2.5] 6
10 J3716067A FUSE TERMINAL BLOCK[ASK 1] 5
11 J91741087A SAFETY_CONTROL_DC_POWER_BOARD 1
12 J3153055A SERVO MOTOR DRIVER(100W) 2
13 J3153056A SERVO MOTOR DRIVER(750W)[MCDDT3520] 2
14 J3153057A SERVO MOTOR DRIVER(1KW)[MDDDT5540] 4
15 J7251007A BOARD COVER[J7251007A] 1
16 J3105010A COOLING FAN[4715MS-22T-B50] 2
17 J3153059B SERVO MOTOR DRIVER-PB[PB1D003P101] 2
18 J3153060B SERVO MOTOR DRIVER-PB[PB1D002P101] 4
19 J90831153B AXIS_SENSOR_BD_PW_CABLE_ASSY SM33-AX001 1 J90831153A [55] at 93, 106 page
20 J90831265B MS1_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831265A [56] at 99 page
21 J90831266C WW1_SERVO_MTR_PWR_EXT_CABLE_ASSY 1 J90831266B [57] at 99 page
22 J90831267B WS1_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831267A [58] at 99 page
23 J90831268B MS2_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831268B [59] at 100 page
24 J90831269B WW2_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831269B [60] at 100 page
25 J90831270B WS2_SERVO_MTR_PWR_EXT_CABLE_ASSY SM33-CS 1 J90831270B [61] at 100 page
26 J90831271C MS1_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 J90831271A [62] at 99 page
