SAMSUNG TECHWIN
66
SM411
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
54 J90831075D SERVO_FAN_POWER_CABLE_ASSY 1 J90831075B [90] at 110 page
55 J90831077C MC2_TB1_CABLE_ASSY 1 J90831077B [91] at 112 page
56 J90831078B FX_FS_SERVO_POWER_CABLE_ASSY SM33-PW016 1 J90831078A [92] at 96, 112 page
57 J90831079C RX_RS_SERVO_POWER_CABLE_ASSY 1 J90831079B [93] at 96, 112 page
58 J90831080B FY1_FY2_SERVO_POWER_CABLE_ASSY SM33-PW01 1 J90831080A [94] at 95, 112 page
59 J90831081B RY1_RY2_SERVO_POWER_CABLE_ASSY SM33-PW01 1 J90831081A [95] at 95, 112 page
60 J90831082C PS1_1_DC_POWER_BD_CABLE_ASSY 1 J90831082B [96] at 111 page
61 J90831083D PS1_2_DC_POWER_BD_CABLE_ASSY 1 J90831083C [97] at 111 page
62 J90831458C FRONT_MONITOR_POWER_CABLE_ASSY 1 J90831458B [98] at 110 page
63 J90831088B SERVO_FAN_CABLE_ASSY SM33-PW026 1 J90831088A [99] at 110 page
64 J90831089C PS1_PS2_SAFETY_CTRL_CABLE_ASSY 1 J90831089A [100] at 105, 110 page
65 J90831092B TRANSFORMER_INPUT_EXT_CABLE_ASSY 1 J90831092A [101] at 109 page
66 J90831231C SEDES_BD_POWER_CABLE_ASSY 1 J90831231B [102] at 106 page
67 J90831052D FRONT_EM_DOOR_RDY_SW_CABLE_ASSY 1 J90831052A [103] at 105 page
68 J90831053B REAR_EM_DOOR_RDY_SW_CABLE_ASSY SM33-SC00 1 J90831053A [104] at 105 page
69 J90831250E SEDES_SLAVE_HEAD1_BD_POWER_CABLE 1 J90831250B [105] at 106 page
70 J90831251B SEDES_SLAVE_HEAD2_BD_POWER_CABLE SM33-SC 1 J90831251A [106] at 106 page
71 J90831056E CONVEYOR_SUB_CONN_CABLE_ASSY 1 J90831056B [107] at 106 page
72 J90831335C MC1_ENABLE_CABLE_ASSY SM33-SC006 1 J90831335B [108] at 107 page
73
74 J90831060E F_OVERRIDE_KEY_EXT_CABLE_ASSY 1 J90831060B [110] at 107 page
75 J90831062E FR_RR_STEP_DRV_PW_CABLE_ASSY 1 J90831062B [111] at 101, 107 page
76 J90831093C VME_IO_BD_POWER_CABLE_ASSY 1 J90831093B [112] at 82, 106 page
77 J90831120B FR1_FR3_FR5_DRV_CMD_CABLE_ASSY SM33-VM01 1 J90831120A [113] at 101 page
78 J90831121B RR1_RR3_RR5_DRV_CMD_CABLE_ASSY SM33-VM01 1 J90831121A [114] at 101 page
79 J90831122A MS1_WS1_DRV_COMMAND_CABLE_ASSY SM33-VM01 1 [115] at 99, 100 page
80 J90831123B WW1_DRV_COMMAND_CABLE_ASSY 1 [116] at 99, 100 page
Page
SAMSUNG TECHWIN
67
SM411

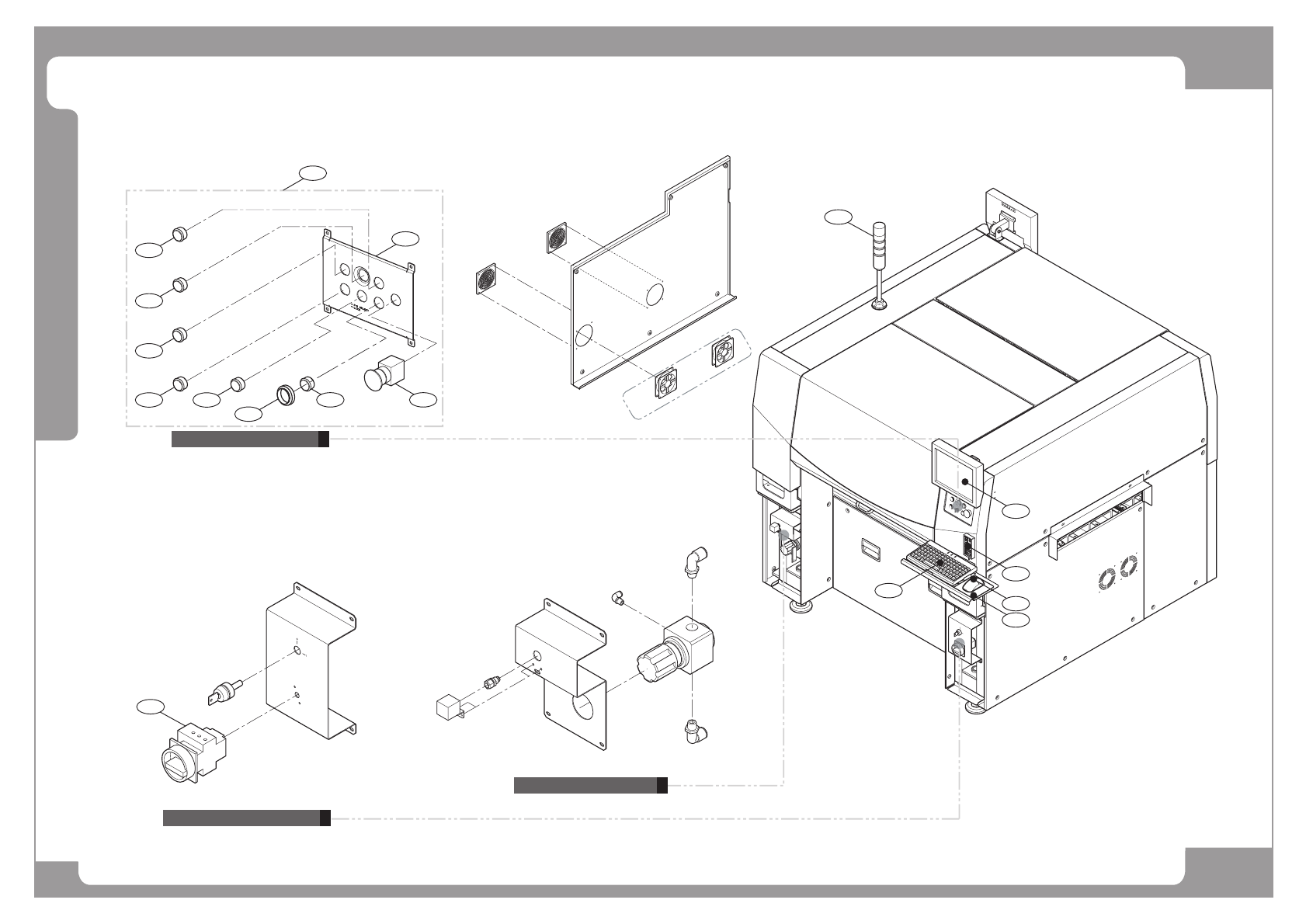

Electric Device Ass’y (1/4)
STOP
RESET
FEEDER
CHANGE
START
READY
27
28 30
46
24
25
26
32
2930
AIR PRESSURE
SAFEGUARD
OVERRIDE
MAIN SWITCH
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
Front Power Panel Ass'y
SAFEGUARD
OVERRIDE
MAIN SWITCH
MAIN SWITCH
AIR PRESSURE
Front O/P Panel Ass'y
5
Front Air Panel Ass'y
35
36
39
38
37
40
Page
SAMSUNG TECHWIN
68
SM411
Electric Device Ass’y (2/4)
10
[CH1]
TRAY
LAN
GROUND
[CH2]
FEEDER
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
8
6
9
[CH1]
TRAY
NEXT
PREVIOUS
LAN
MCCB
GROUND
INTERFACE
[CH2]
FEEDER
35
36
39
38
40
Rear Power Panel Ass'y
7
OMRON
D4DS
43
42
44
45
41
Door Switch Ass'y
A
A
