SAMSUNG TECHWIN
74
SM411
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
50 J90831184A FY1_REGEN_RESISTOR_CABLE_ASSY SM33-MD028 1 [120] at 95 page
51 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY SM33-MD029 1 [121] at 95 page
52 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY SM33-MD030 1 [122] at 96 page
53 J90831187C RY1_REGEN_RESISTOR_CABLE_ASSY SM33-MD031 1 [123] at 95 page
54 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY SM33-MD032 1 [124] at 95 page
55 J90831252A REAR_ELEC_PANEL_EARTH_CABLE_ASSY SM33-PW 1 [125] at 109 page
56 J90831254A EARTH_HEAD1_CABLE_ASSY SM33-PW003-3 1 [126] at 109 page
57 J90831255C EARTH_HEAD2_CABLE_ASSY 1 J90831255B [127] at 109 page
58 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 J90831059B [128] at 107 page
59 J44011001C POWER_SUPPLY 2 SM411N
60 J70511006A POWER_SUPPLY_BRACKET 2 SM411N
61 FC09-000371A SM400N_POWER_SUPPLY_STAND 1 SM411N
62 J44021015A SMPS 2 SM411N
63 FC09-000372A sm400n_smps_base_2 2 SM411N
64 FC09-000371A sm400n_smps_base_1 1 SM411N
65 FC09-000373A SM400N_SMPS_BASE_FIXER 4 SM411N
Page
SAMSUNG TECHWIN
75
SM411
Cable Ass’y (1/2)

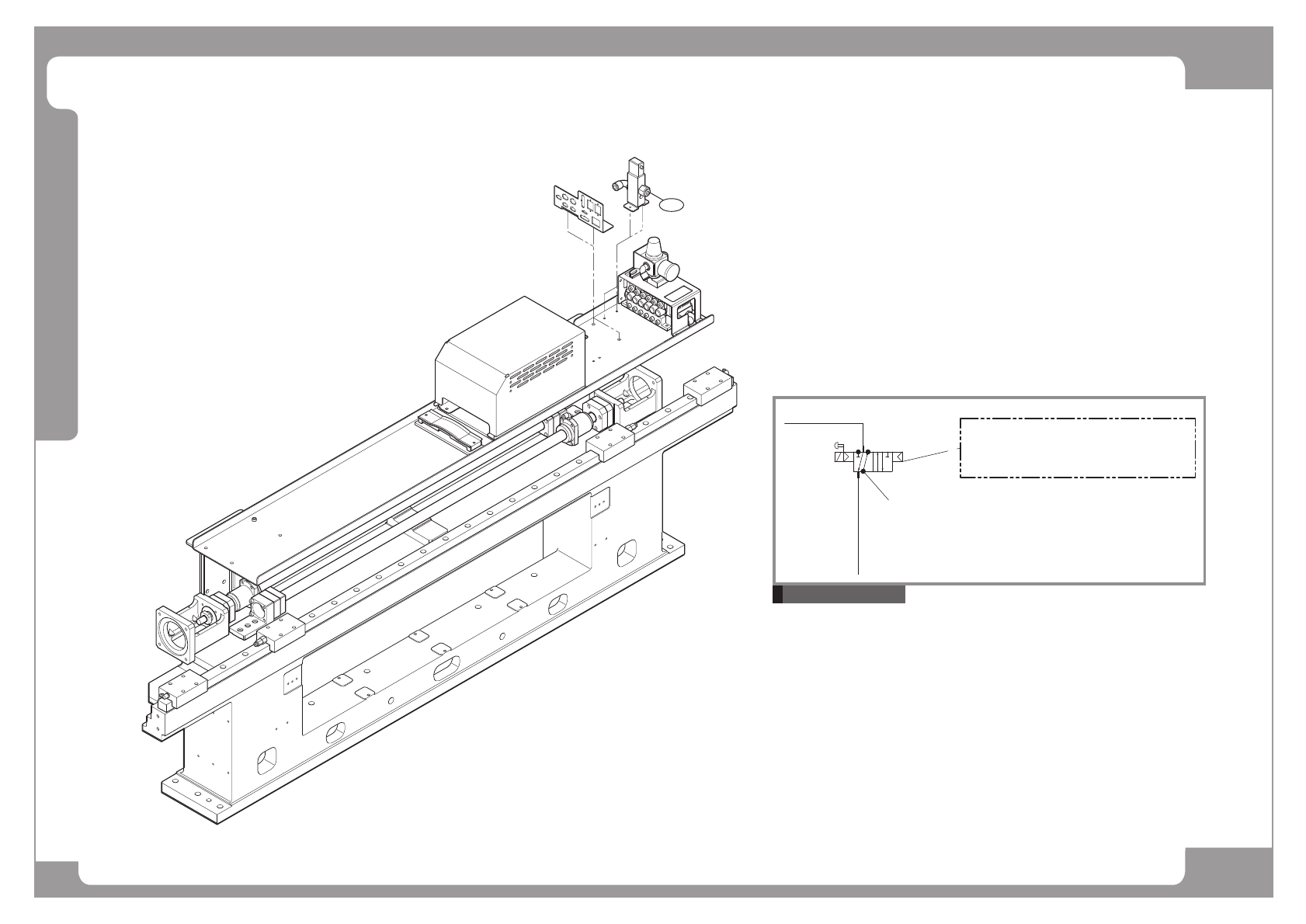

Solenoid Valve
U2-4-8*5U2-4-8*5
J6702021A J6702021A
K180-4E1-21-DC24VK180-4E1-21-DC24V
J6711157AJ6711157A
KQ2L08-01SKQ2L08-01S
3-J6712008A3-J6712008A
PT 1/8PT 1/8
U2-4-8*5U2-4-8*5
J6711140AJ6711140A
SS8-1/8SS8-1/8
HARNESS ASSYHARNESS ASSY
J9080795A MAIN AIR SOL PWR CABLE ASSYJ9080795A MAIN AIR SOL PWR CABLE ASSY
1
Page
SAMSUNG TECHWIN
76
SM411

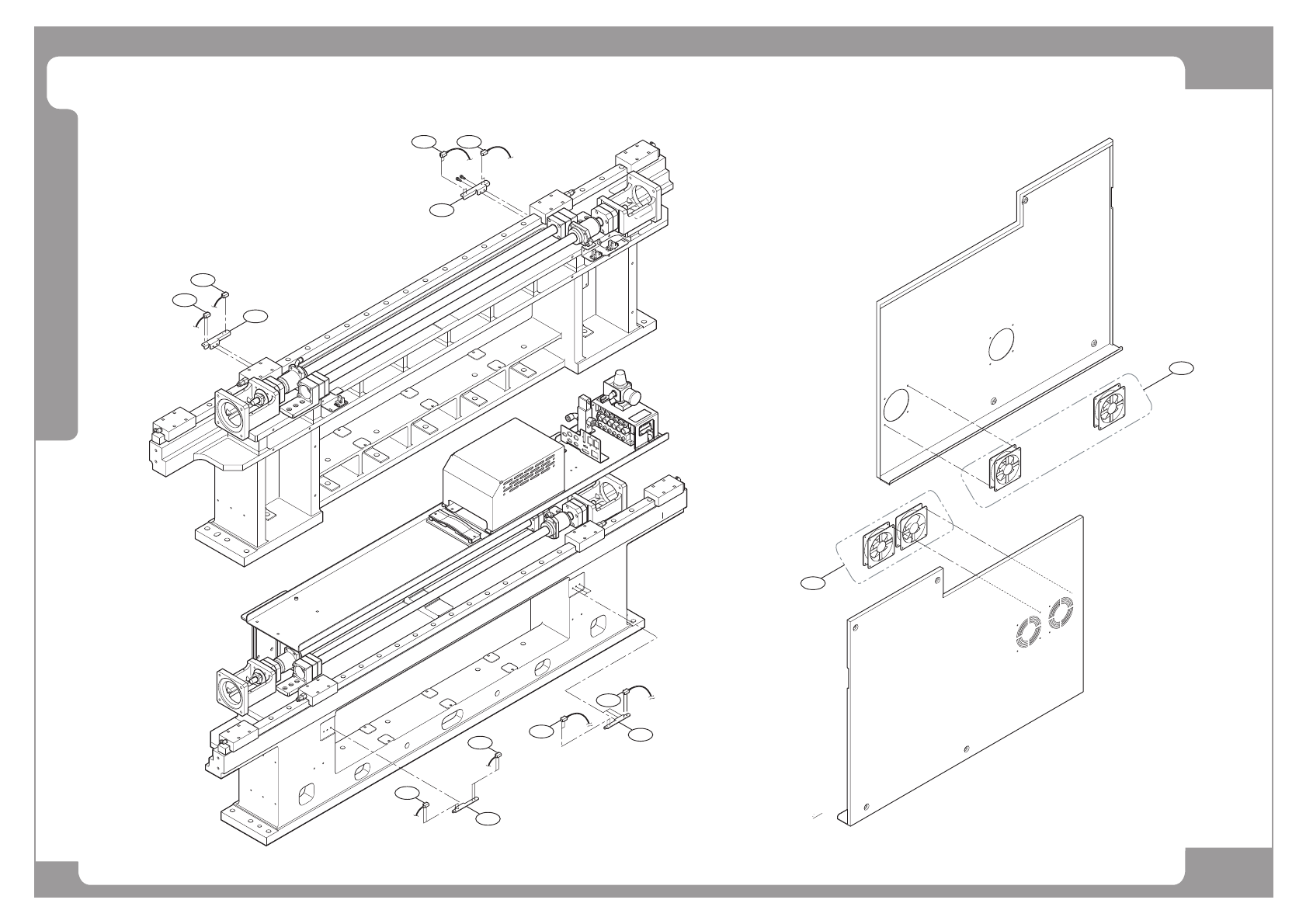

Cable Ass’y (2/2)
3
4
3
3
3
5
F. R
R.L
3
3
3 3
4
5
2
