Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
63 FC09-004238B BRACKET-SENSOR BKT 1 FC09-004238A Option of Single Conveyor
64 FC09-004185B BRACKET-S DUMP BOX 1 FC09-004185A Option of Single Conveyor
65 J73531001A DUMP_BOX_ABSORBER J73531001A Option of Single Conveyor
66 J73531004A L_DUMP_BOX_ABSORBER J73531004A 1
67 FC09-004184C BRACKET-S DUMP BOX BKT 1
AM03-015259B CABLE ASSY-FIX ILL IF EXT 1 AM03-015259A
AM03-015260B CABLE ASSY-FIX ILL IF 1 AM03-015260A
AM03-015262A CABLE ASSY-FIX ILL SCM HEAD IF CAN 1
AM03-015263A CABLE ASSY-FIX ILL POWER 1
68 FC09-006123A BRACKET-BASE FIX ILL BD DECAN 1
Page
HANWHA TECHWIN
115
DECAN
L2
Page
HANWHA TECHWIN
116
DECAN
L2

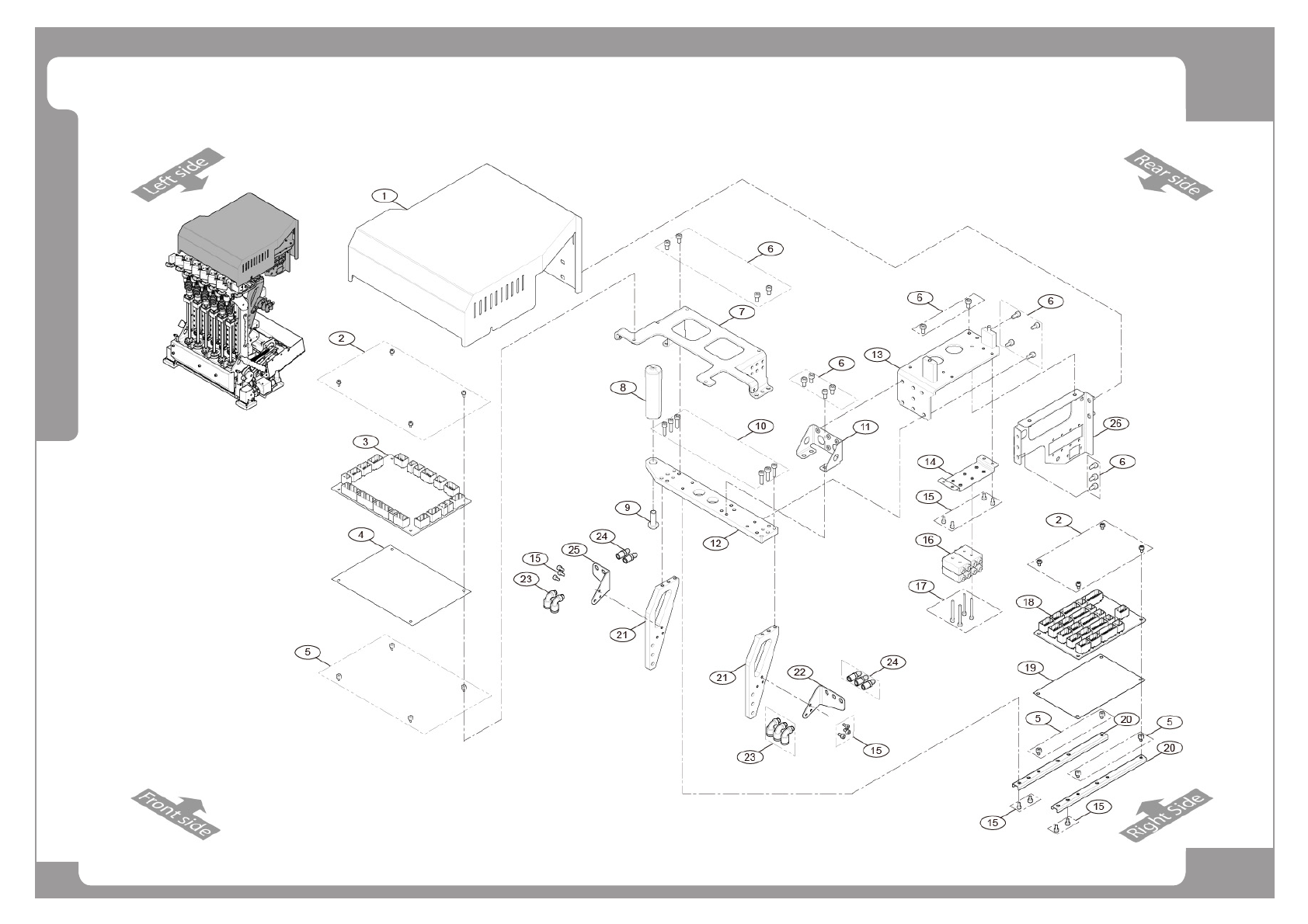

Head (1/5)
