Page HANWHA TECHWIN 129 DECAN L2 Head (5/5) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC18-902719 SOCKET HEAD CAP SCREW 58 2 FC09-004874A BRACKET -FID_COVER_1 1 3 FC18-902741 SOCKET HEAD CA…
Page
HANWHA TECHWIN
128
DECAN
L2

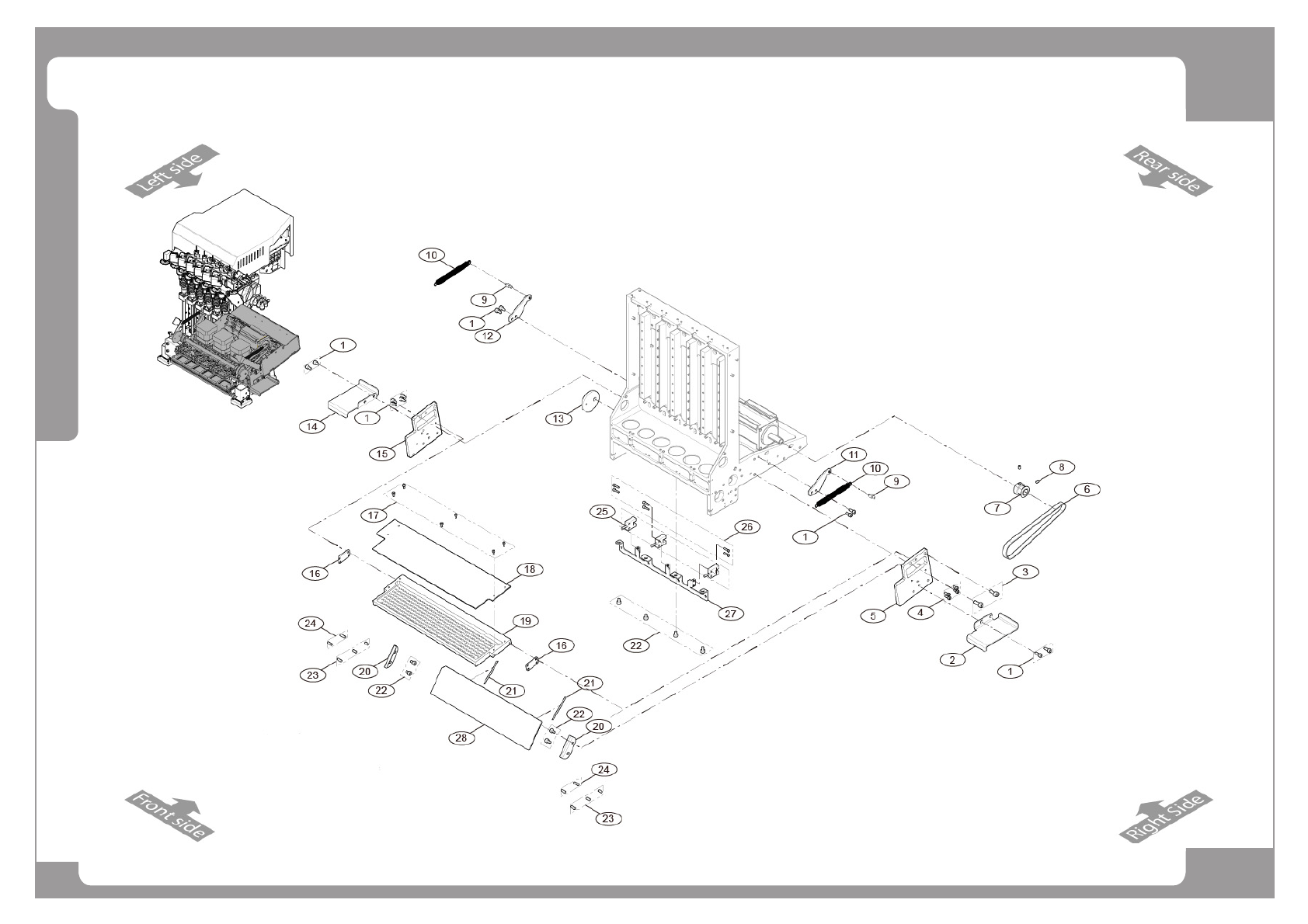

Head (5/5)
Page
HANWHA TECHWIN
129
DECAN
L2
Head (5/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-902719 SOCKET HEAD CAP SCREW 58
2 FC09-004874A BRACKET-FID_COVER_1 1
3 FC18-902741 SOCKET HEAD CAP SCREW 4
4 FC18-902710 SOCKET HEAD CAP SCREW 44
5 FC09-006538A BLOCK-ILLU BKT 1 1 FC07-001729A
6 MC05-900055 S_BELT_267_3GT_6 1
7 J7155523A PULLEY (S-AXIS 2) 1
8 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 12
9 FC29-004275A BRACKET-SPRING_POST1 2
10 FC38-900011 SPRING-AWY 6-55 2
11 FC09-002292A SPRING_BKT_R 1
12 FC09-002292A SPRING_BKT_L 1
13 J7055143B CAM 1
14 FC09-004875A BRACKET-FID_COVER_2 1
15 FC09-006539A BLOCK-ILLU BKT 2 1 FC07-001731A
16 FC09-004862A BRACKET-ILL BKT 3 1
17 FC18-902704 SOCKET HEAD CAP SCREW 51
18 AM06-005408A ASSY,PCB SMD-COAXIAL LED PCB ASSEMBLY 1 AM06-003329A
19 FC07-003229A BLOCK-HOLE COAXIAL L2 1 FC07-001732A
20 FC09-004861A BRACKET-BS BKT 2
21 FC28-000855A PAD-BS BKT RUBBER 2
22 FC18-902718 SOCKET HEAD CAP SCREW 8
23 FC18-901191 DOWEL_PIN MS3-8 6
24 FC18-001608 MS3-6 12
25 EP19-900123 MICRO PHOTO SENSOR[PM-U24] 9
26 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 19
27 FC18-902719 SOCKET HEAD CAP SCREW 58
28 EP12-001003A MIRROR,OPTICS-BEAM SPLITTER L2 1 EP12-000076A
Page
HANWHA TECHWIN
130
DECAN
L2

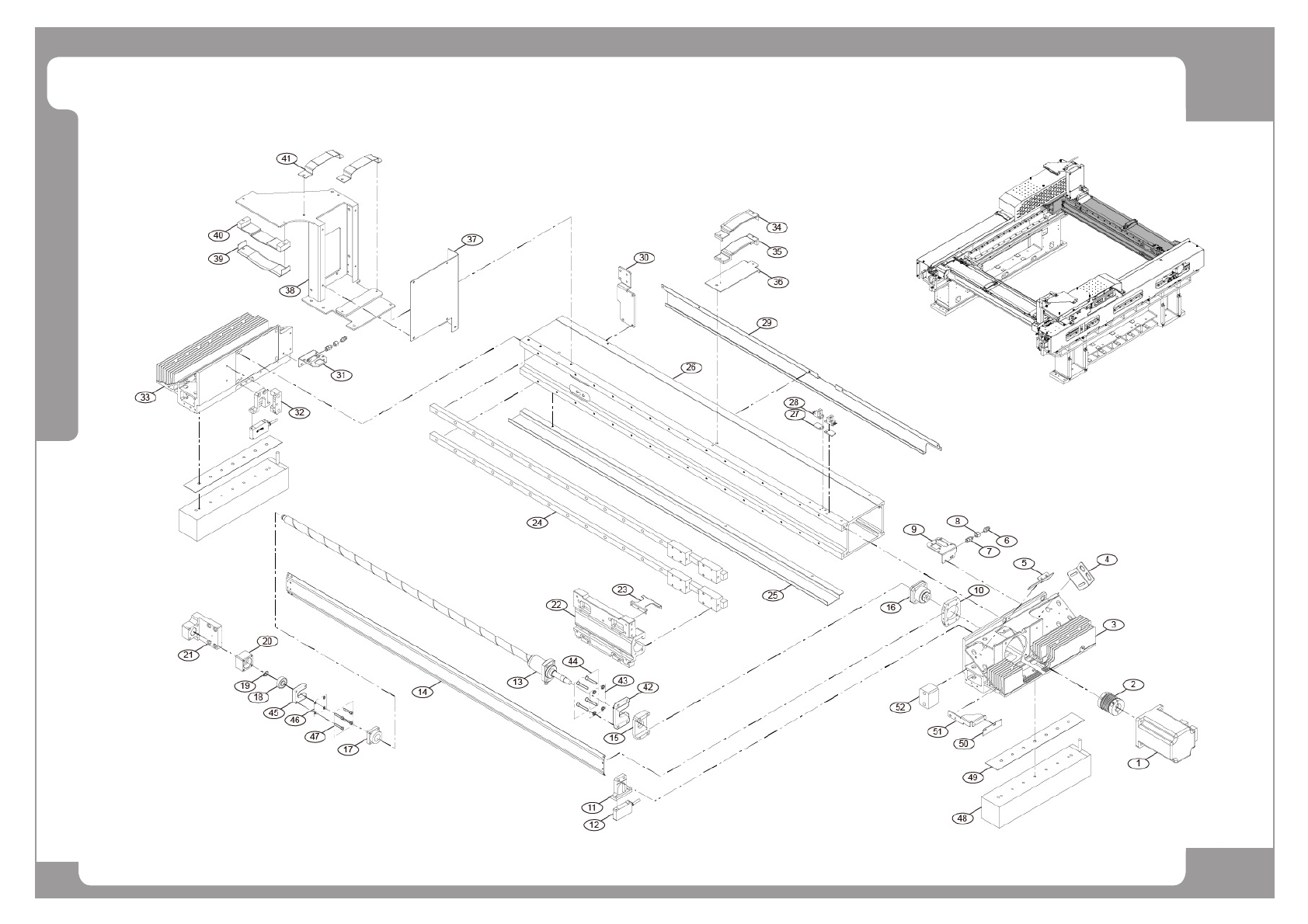

X Frame (1/2)
