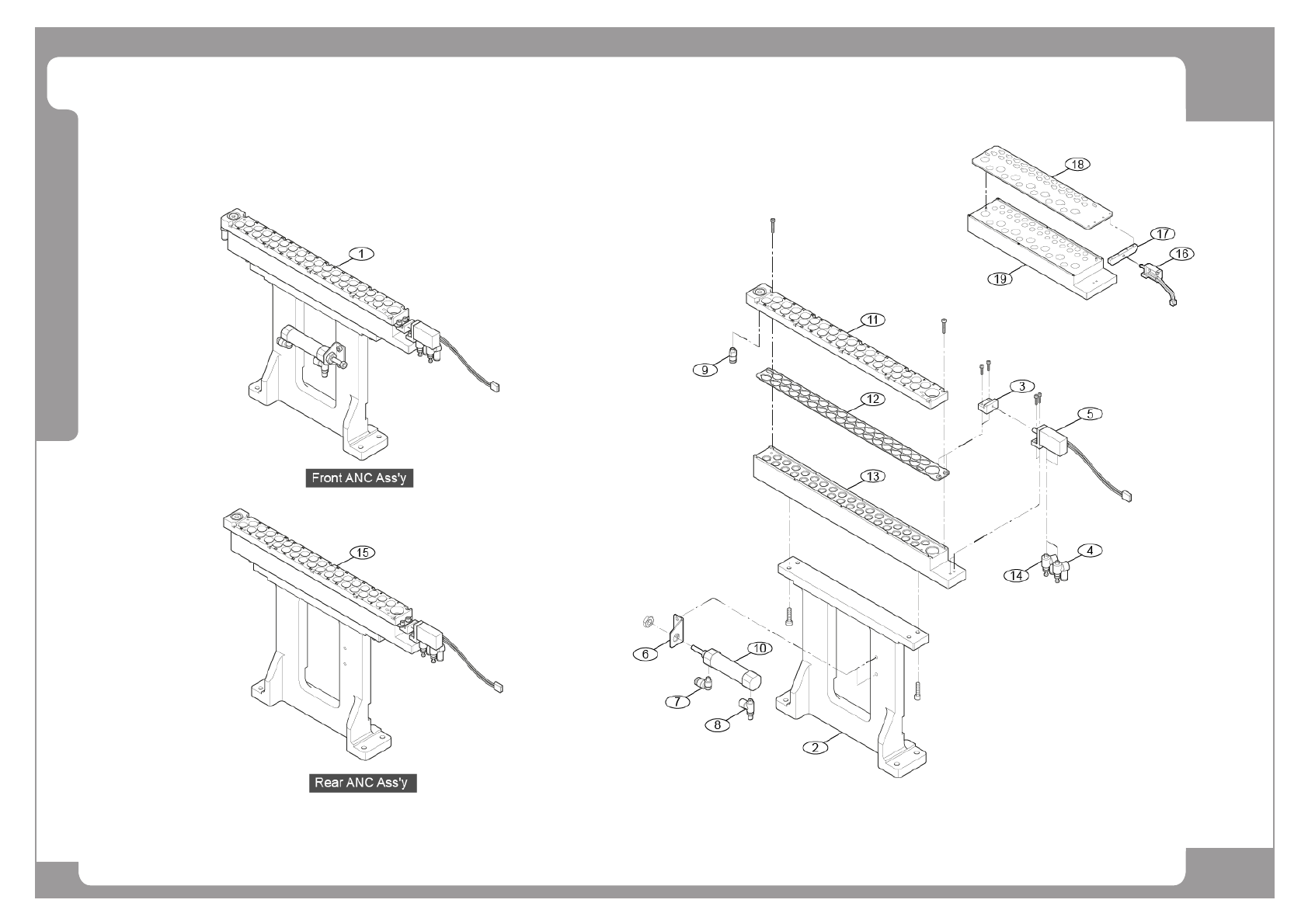

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90561001A ANC_ASSY J90561001A 1 Rear: J90561002A
2 FC05-000463B ANC_SUPPORT 1 FC05-000463A
3 J7156043B SHUTTER BRACKET[J7156043B] 1
4 HP14-900090 SPEED CON[ASP330F-01-06S] 1
5 HP03-900017 AIR CYLINDER BDAS 6X5-1A-ZC153A2 1 CYLINDER ONLY
6 FC09-004601A CYLINDER_BRACKET J70561001A 1 J70561001A
7 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
8 HP14-900088 SPEED CONTROLLER[AS1211F-M5-04] 1
9 HP06-900255 STRAIGHT FITTING KQ2H04-M5 1
10 HP03-900054 AIR_CYLINDER 1
11 FC30-000241A ANC_PLATE_1 1
12 J71561002B ANC_NOZZLE_SHUTTER 1
13 J71561003B ANC_MAIN_BODY 1
14 HP14-900089 SPEED CON[AS2201F-01-06S] 1
15 J90561002A ANC_ASSY_REAR J90561002A 1
16 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1 FS Single Option
17 J7156087A SHUTTER BRACKET[J7156087A] 1 FS Single Option
18 J71561034A MAIN_BODY_SMALL_PIN J71561034A 1 FS Single Option
19 J71561036A NOZZLE_SHUTTER_SMALL_PIN J71561036A 1 FS Single Option
