Page
HANWHA TECHWIN
148
DECAN
L2
Cover (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
29 FC39-001576B COVER FRAME FL N 1 FC39-001576A
30 AM03-011864A ASSY,COVER-ACRYL DOOR ESD N 2
31 FC15-002624B COVER-SIDE UPPER T 1 FC15-002624A
33 FC15-002282A FRAME TOP SIDE N 2
34 FC15-002094A GAS SPRING BKT 4
35 FC38-000168 GAS_SPRING_KS2-300-PS1-032 4
36 FC29-004382A DOOR CUSHION 4 J73520001B
37 FC18-901832 SHOULDER SCREW 4
38 FC09-003491A DOOR SWITCH BKT 2
39 FC09-003511A DOOR SWITCH BKT 2
40 EP20-900137 SAFETY_DOOR_SWTICH 2
41 FC15-002098A TOP CENTER 1
42 FC15-002177A LOOF FAN UNDER 2
43 EP02-001745B HARNESS-V1+ LOOF FAN CABLE ASSY 2
44 FC28-000107 FINGER_GUARD_109-719 2
45 FC15-002095A TOP SIDE L 1
46 EP13-900134 TOWER_LAMP 1
47 FC15-002093A TOP SIDE R 1
48 FC39-001577B FRAME RR N ASSY 1 FC39-001577A
49 FC39-001578B COVER FRAME RL N 1 FC39-001578A
50 FC15-002293C ACRYL ESD 2 FC15-002293A/ FC15-002293B
51 FC29-900019 SET_CAP CP-328-B-4-Ivory 1
52 EP20-900156 DOOR_KEY 2
53 FC29-000007 CAP-PULL;AP-268-2-BLACK,PL15:ABS 2
54 J70521087A WINDOW_HINGE 4
55 AM03-012012A ACRYL DOOR STD 2
56 FC15-002285B COVER-SIDE UPPER N 1 FC15-002285A
57 FC15-002625A COVER-DOOR SIDE T 1
58 FC18-901051 NYLON NUT[M8] 1
59 FC18-900485 HEX CAP SCREW[M8 X 55L] 1
Page
HANWHA TECHWIN
149
DECAN
L2
Cover (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
60 EP05-000463 ADAPTOR,CONNECTOR-IDEC SWITCH CONNECTOR 6
61 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1
62 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm 1
63 FC15-002156A COVER-LCD BASE 45 1 SPECIAL OPTION
64 FC15-002154A COVER-M SUB BKT 45 D 1 SPECIAL OPTION
65 AM03-013511A ASSY,COVER-SAFETY EXT-CV 1
66 FC29-900195 HINGE KH-65-4(SATELITE) 3
67 FC15-002787A COVER-ACRYL DOOR EXT-CV 1
68 FC29-900169 HANDLE_BOLT KA-188N-1 2
69 FC10-000068 CUSHION,RUBBER-KD-80-F 4
70 FC15-002794A COVER-SIDE R EXT-CV 1
71 FC15-002796A COVER-MIDDLE EXT-CV 2
72 FC15-002786A COVER-TOP EXT-CV 1
73 FC15-002795A COVER-BOTTOM EXT-CV 1
74 TO04-001377A JIG-DOOR CLAMPING 2
75 FC15-002788A COVER-SIDE L EXT-CV 1
76 FC09-003569B BRACKET-COVER INNER BKT 2 FC09-003569A
Page
HANWHA TECHWIN
150
DECAN
L2

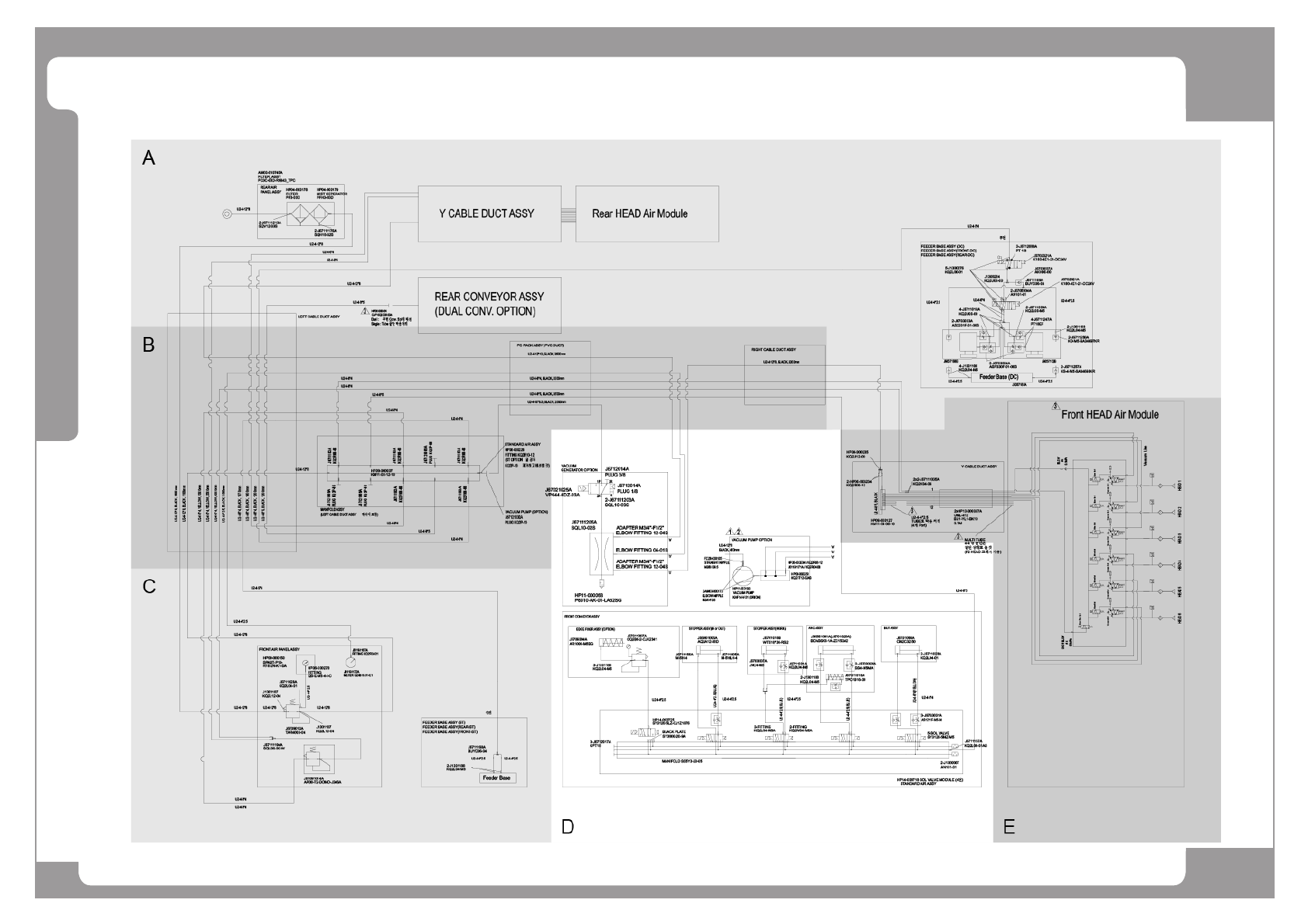

Air (1/6)
