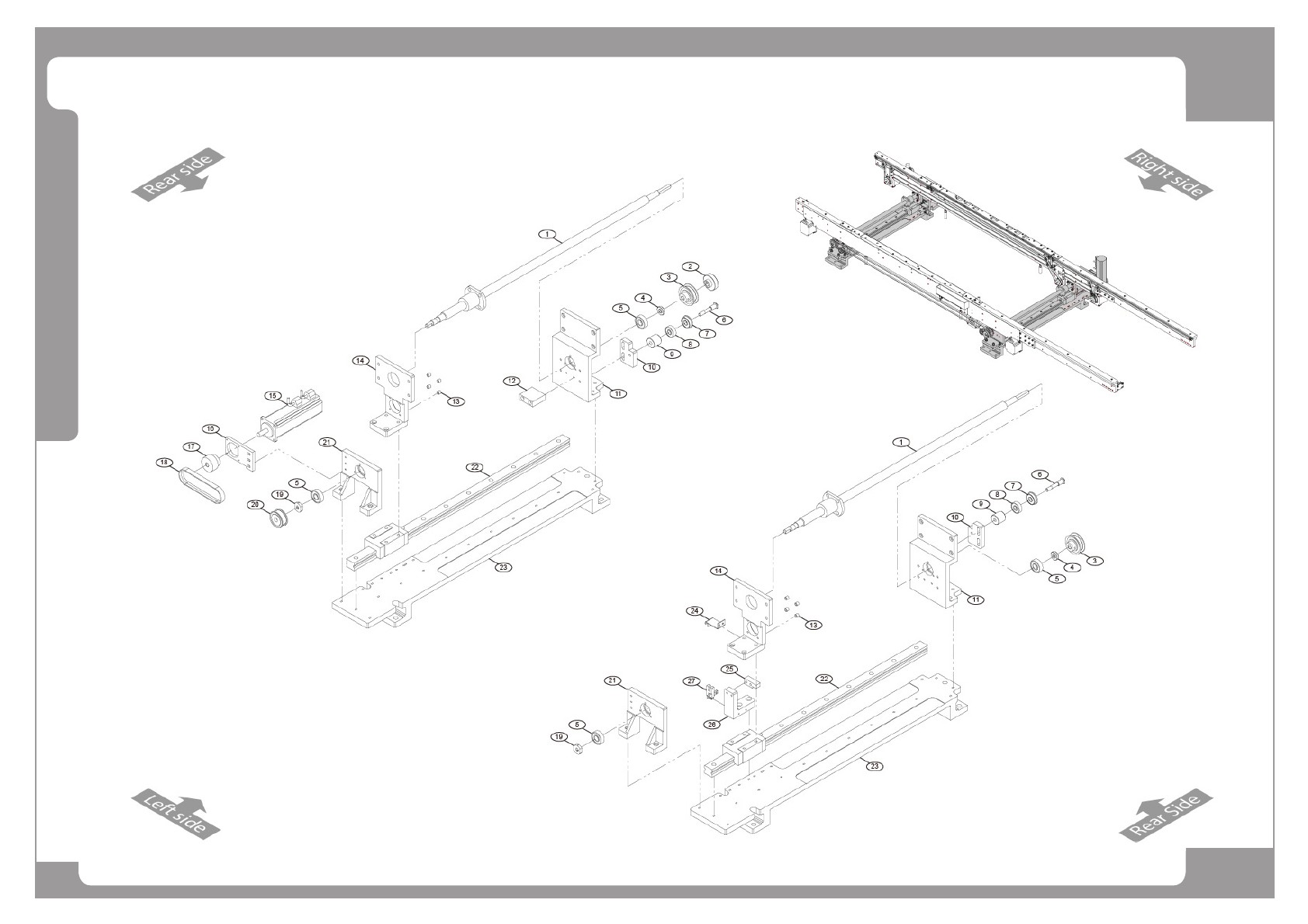

Single Conveyor L800(2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 J7053048A IDLER SPACER-M 3
33 J70531083A ALT_MOTOR_SUPPORT 4
34 J70531763A BRACKET_BELT_MOTOR_B 1
35 FC09-006192A BRACKET-STOPPER_CYL_L 1
36 J70531765A WORK_SENSOR_BKT J70531765A 1
37 J6701080A AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1
38 J70531643A H30_STOPPER_BAR J70531643A 1
39 J6703007A THROTTLE VALVE(ELBOW) 1
40 J1300121 ELBOW FITTING [M-5HLH-4] 1
41 J71531268A CLAMP_FRONT_FRAME J71531268A 1
42 J6607016A LM SLIDE 2
43 J7153036A SLIDE GUIDE 1
44 FC29-004426A STOPPER-CLAMP_SHAFT_STOPPER 2
45 FC01-000022A ADJUSTER-SHAFT_CONV;STS304_CP 2
46 J66011035A BALL_BUSH LMU5 4
47 FC18-001480A SPACER-BUSH_CONVEYOR;A6061BE-T6 2
48 J7153034A CLAMP SHAFT 2
49 MC05-001004 BELT-MAM-5P-1940-7W;1940,7,1.2 1
50 J66021141A FLAT_BELT_WORK_MOVE_750 MAM-5P 1
51 MC05-000254 BELT-MAM-5P-860-7W 1
