DECAN_L2_TRM(Ver2.9_CS15.51) - 第206页
Page HANWHA TECHWIN 202 DECAN L2 Camera IO Board (4/6)
Page
HANWHA TECHWIN
201
DECAN
L2
Camera IO Board (3/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013439A CABLE ASSY-SM511 FLAT 2 2 AM03-010516C
2 AM03-005548B CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A
3 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 2 AM03-005553A
4 AM03-013438A CABLE ASSY-SM511 FLAT 1 2 AM03-010515C/ AM03-010515D
5 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1
6 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 2 AM03-005543B
7 AM03-010967A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA2 1
Page
HANWHA TECHWIN
202
DECAN
L2

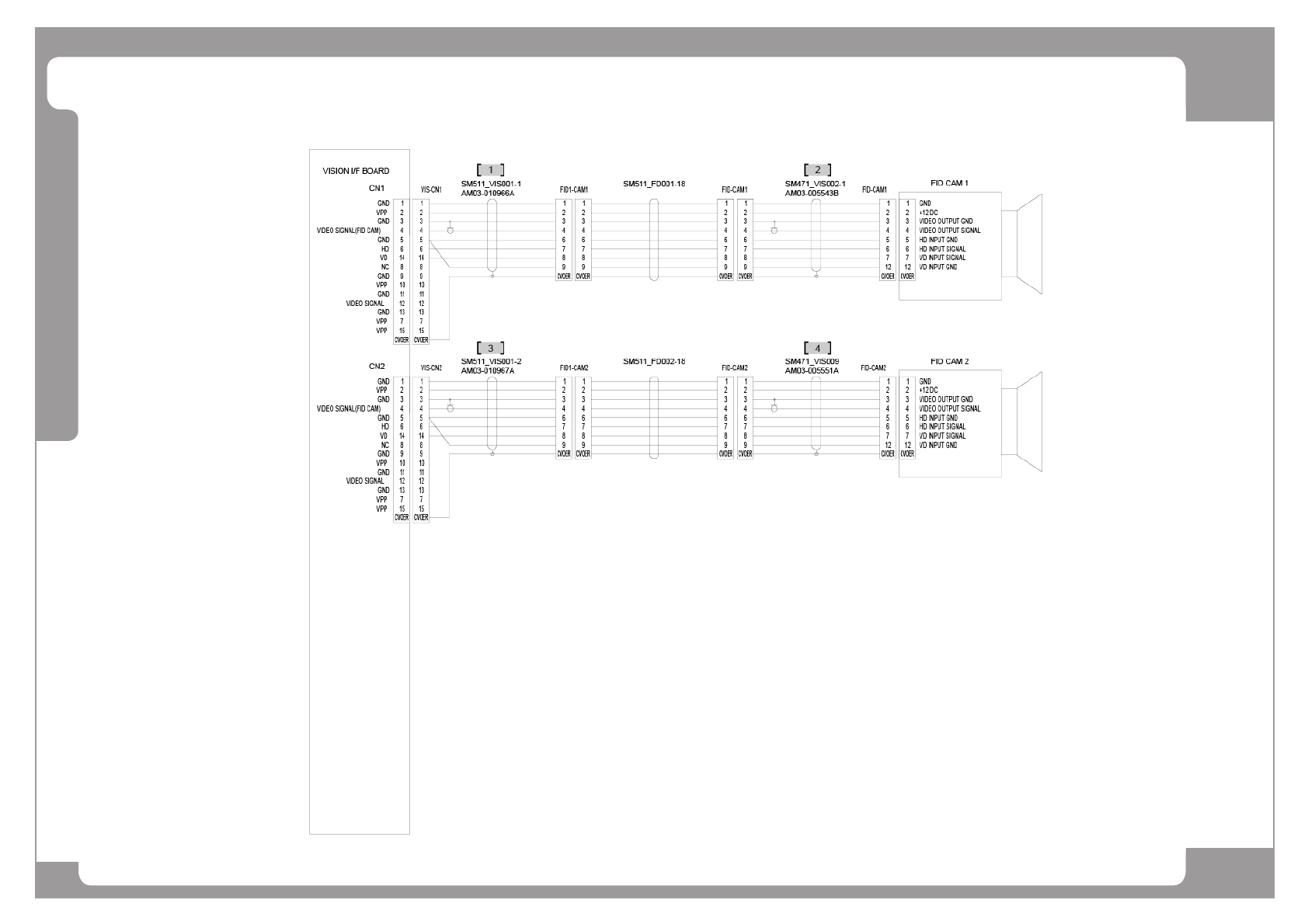

Camera IO Board (4/6)
Page
HANWHA TECHWIN
203
DECAN
L2
Camera IO Board (4/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010966A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA1 1
2 AM03-005543C CABLE ASSY-FLAT_FID_CAMERA_1 1 AM03-005543B
3 AM03-010967A CABLE ASSY-HEAD1_FIDUCIAL_CAMERA2 1
4 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1
