DECAN_L2_TRM(Ver2.9_CS15.51) - 第216页
Page HANWHA TECHWIN 212 DECAN L2 Front Feeder Board Interface (3/3)
Page
HANWHA TECHWIN
211
DECAN
L2
Front Feeder Board Interface (2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J9080857B FDR INPUT EXT CABLE ASSY, D-CART[SM_FD01 1
2 J9080854C LEFT FDR SENOR INPUT CABLE ASSY, D-CART[ 1
3 J9080855B RIGHT FDR SENOR INPUT CABLE ASSY, D-CART 1
4 AM03-000764A CABLE ASSY-SM-FD022 1
5 AM03-010871A CABLE ASSY-DEVICE_NET 2
6 AM03-000765A CABLE ASSY-SM-FD023 1
Page
HANWHA TECHWIN
212
DECAN
L2
Front Feeder Board Interface (3/3)
Page
HANWHA TECHWIN
213
DECAN
L2

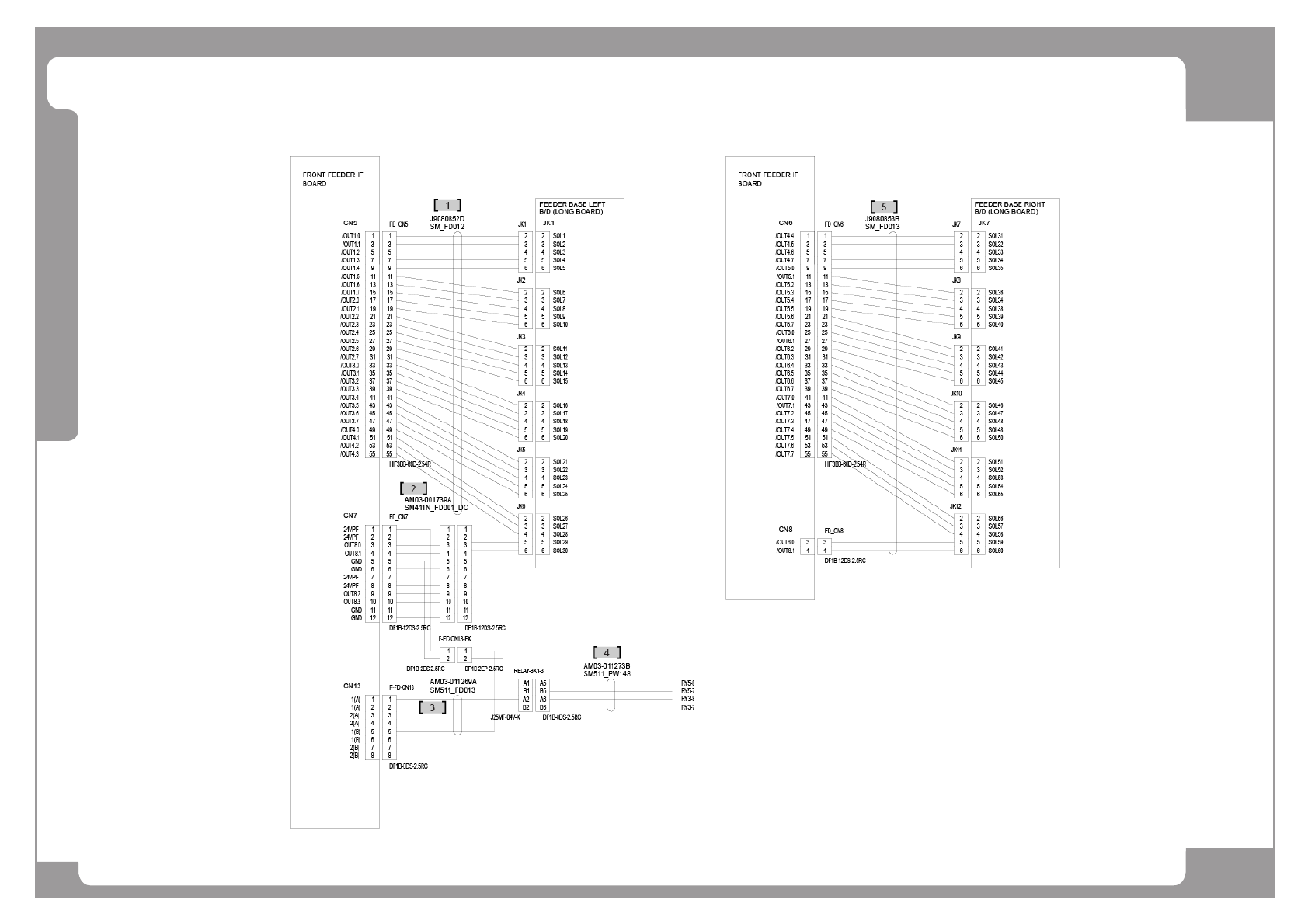

Front Feeder Board Interface (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J9080852D LEFT FDR SOL OUTPUT CABLE ASSY, D-CART[S 1
2 AM03-001739A CABLE ASSY-FEEDER CN7 EXT CABLE ASSY 1
3 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1
4 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 1
5 J9080853B RIGHT FDR SOL OUTPUT CABLE ASSY, D-CART 1
