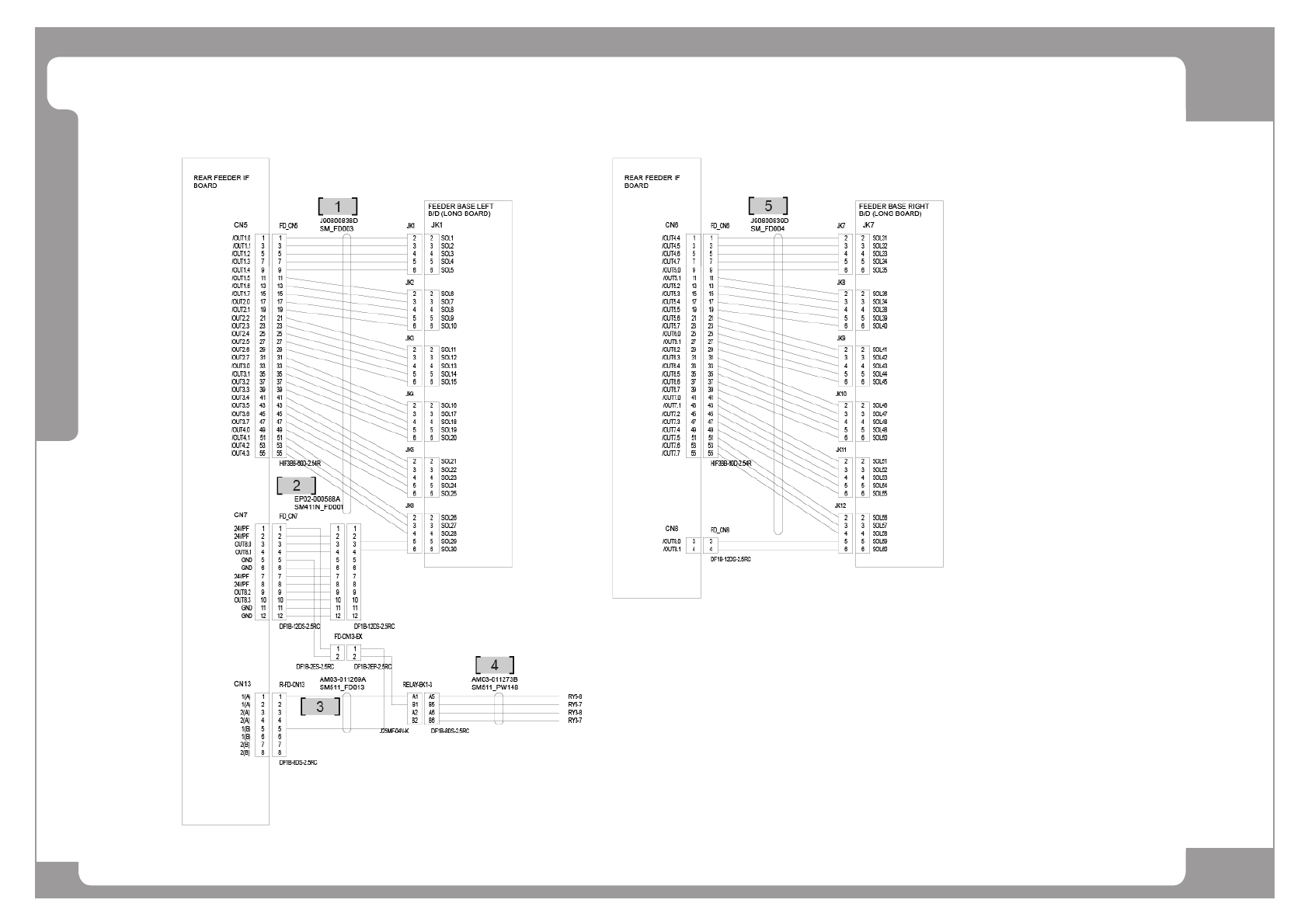

Rear Feeder Board Interface (3/3)
Page
HANWHA TECHWIN
219
DECAN
L2
Rear Feeder Board Interface (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1
2 EP02-000588A HARNESS,WIRING-FEEDER CN7 EXT CABLE ASSY 1
3 AM03-011269A CABLE ASSY-F_R_FDR_PWR_RELAY 1
4 AM03-011273B CABLE ASSY-RELAY_BRK_MODULE_DC 1
5 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1
Page
HANWHA TECHWIN
220
DECAN
L2

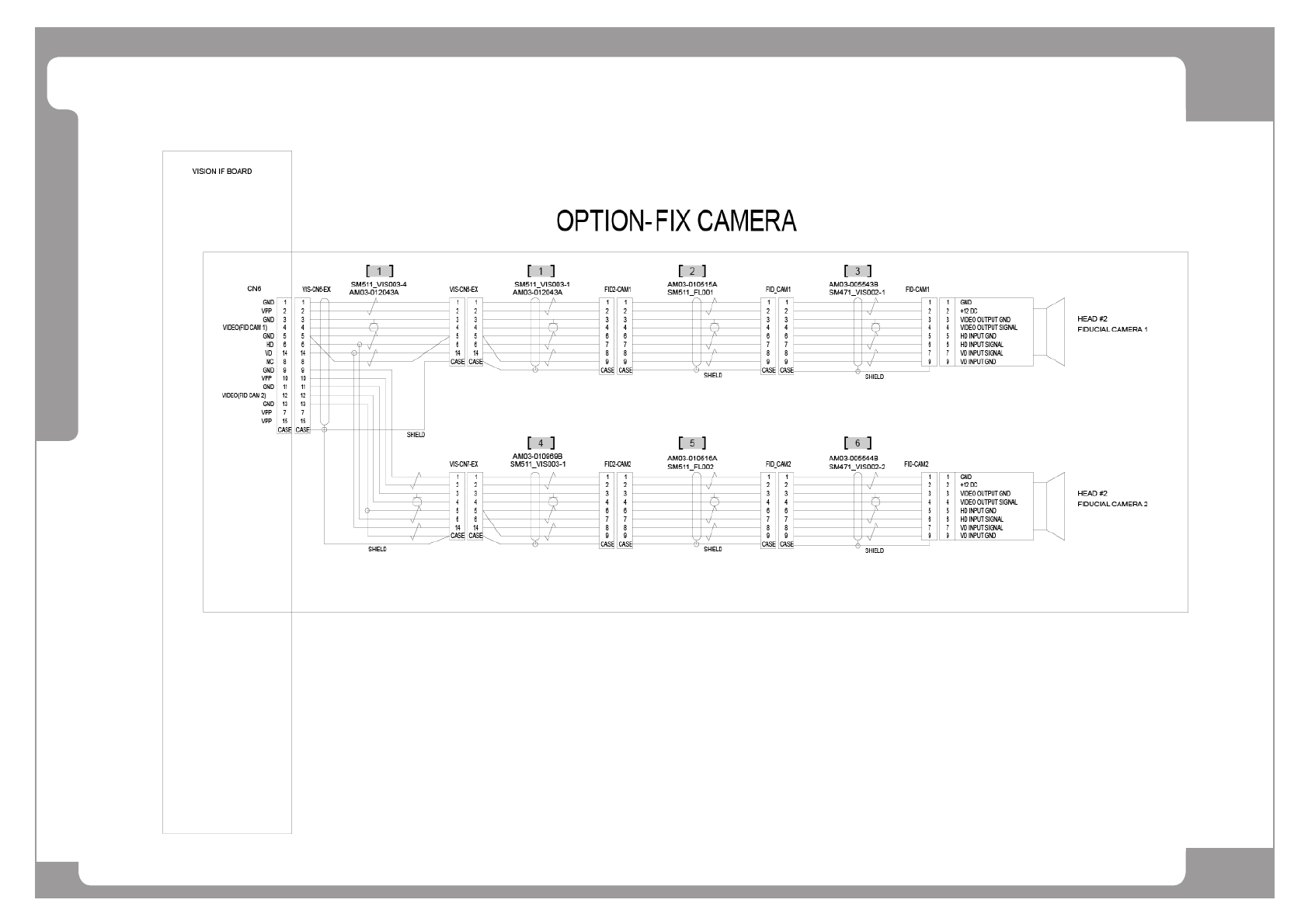

Fix Camera Interface (1/3)
