DECAN_L2_TRM(Ver2.9_CS15.51) - 第228页
Page HANWHA TECHWIN 224 DECAN L2 Fix Camera Interface (3/3)
Page
HANWHA TECHWIN
223
DECAN
L2

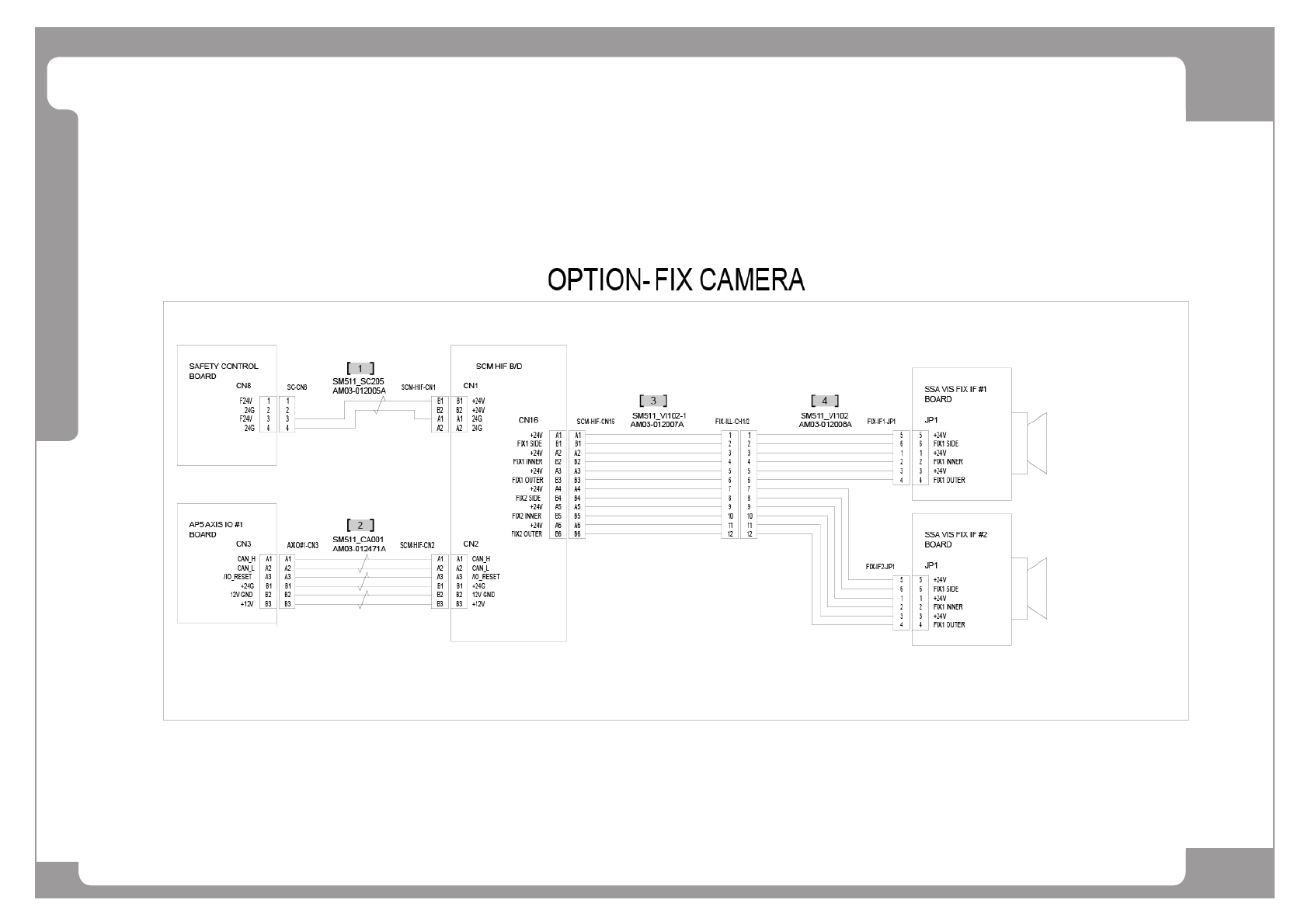

Fix Camera Interface (2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012487A CABLE ASSY-NEXTEYE BD2 IF MEGA 1
2 AM03-012398B CABLE ASSY-FIX 1-2 CAMERA 1 AM03-012398A
Page
HANWHA TECHWIN
224
DECAN
L2
Fix Camera Interface (3/3)
Page
HANWHA TECHWIN
225
DECAN
L2
Fix Camera Interface (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012005A CABLE ASSY-FIX ILL POWER 1
2 AM03-012471A CABLE ASSY-AXIO1 FIX_ILL CAN 1
3 AM03-012007A CABLE ASSY-FIX ILL IF EXT 1
4 AM03-012008A CABLE ASSY-FIX ILL IF 1
