Page HANWHA TECHWIN 236 DECAN L2 Conveyor IF Board (2/10)
Page
HANWHA TECHWIN
235
DECAN
L2
Conveyor IF Board (1/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010844B CABLE ASSY-INLINE_IN-OUT_CVIF 1
2 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1
3 AM03-010845A CABLE ASSY-REAR_SMEMA_EXT 1
4 AM03-010846A CABLE ASSY-INLINE_NEXT_PRE 1
5 AM03-010842B CABLE ASSY-TOWER_LAMP_J4R 1
6 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1
7 AM03-010843B CABLE ASSY-TOWER_LAMP_J9L 1
Page
HANWHA TECHWIN
236
DECAN
L2

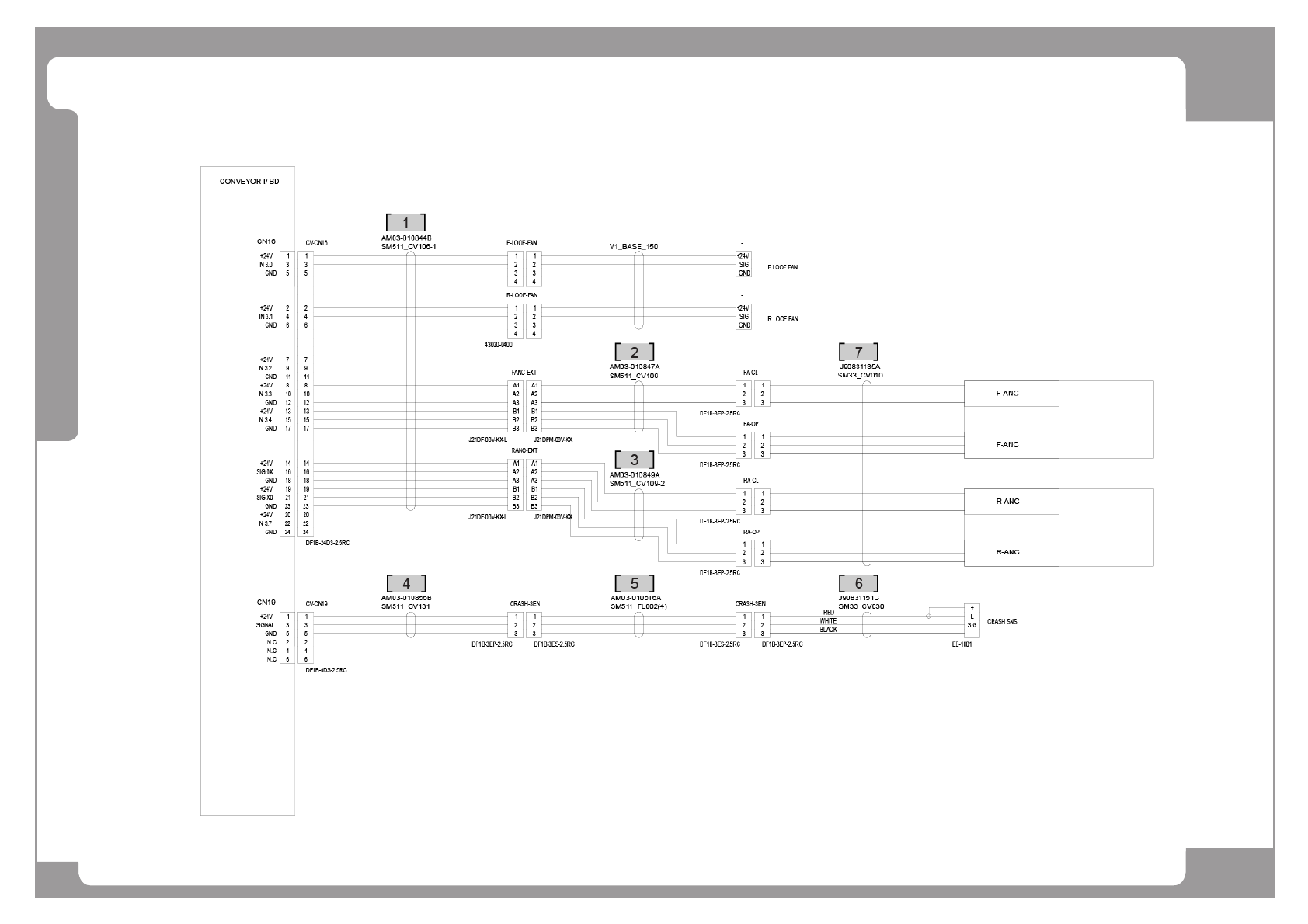

Conveyor IF Board (2/10)
Page
HANWHA TECHWIN
237
DECAN
L2
Conveyor IF Board (2/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010844B CABLE ASSY-INLINE_IN-OUT_CVIF 1
2 AM03-010847A CABLE ASSY-ANC_SENSOR_FRONT_EXT 1
3 AM03-010849B CABLE ASSY-ANC_SENSOR_REAR_EXT 1 AM03-010849A
4 AM03-010856B CABLE ASSY-CRASH_SENSOR_I-F 1
5 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
6 J90831151C CRASH_SENSOR_CABLE_ASSY 1
7 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1
