Page HANWHA TECHWIN 241 DECAN L2 Conveyor IF Board (4/10) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010836B CAB LE ASSY -CONV . S/W OUT PUT 1 2 AM03-010788B CA BLE ASSY -FFDR-CVIF_CAN …
Page
HANWHA TECHWIN
240
DECAN
L2

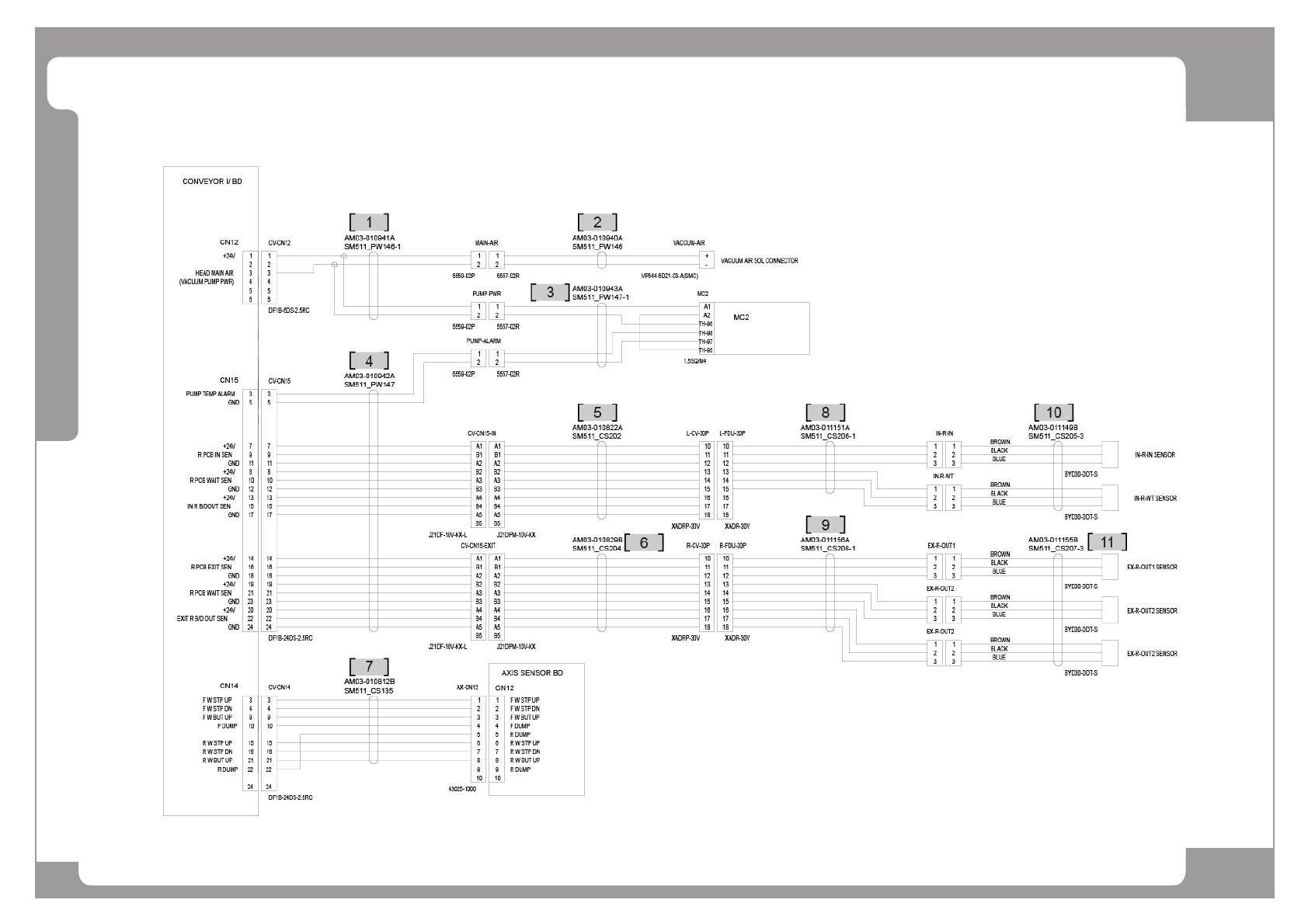

Conveyor IF Board (4/10)
Page
HANWHA TECHWIN
241
DECAN
L2
Conveyor IF Board (4/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010836B CABLE ASSY-CONV. S/W OUTPUT 1
2 AM03-010788B CABLE ASSY-FFDR-CVIF_CAN_J4R 1
3 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1
4 AM03-010789B CABLE ASSY-FFDR-CVIF_CAN_J9L 1
5 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1
6 AM03-011245B CABLE ASSY-CV_RDF_PWR_EXT 1 AM03-011245A
7 AM03-010791B CABLE ASSY-CVIF-FRONT_FLAT_CAN 1
8 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
Page
HANWHA TECHWIN
242
DECAN
L2
Conveyor IF Board (5/10)
