DECAN_L2_TRM(Ver2.9_CS15.51) - 第250页
Page HANWHA TECHWIN 246 DECAN L2 Conveyor IF Board (7/10)
Page
HANWHA TECHWIN
245
DECAN
L2
Conveyor IF Board (6/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012632A CABLE ASSY-AX_CN4_STP_DUMP_BOX_SEN 1
2 AM03-003872A CABLE ASSY-PLACE STOPPER SENSOR EXT 1
3 J90831401C CONVEYOR_PCB_SENSOR_ASSY 1
4 AM03-011145B CABLE ASSY-F_DUMP_BOX_SWITCH 1
5 AM03-013054A CABLE ASSY-R_DUMP_BOX_SWITCH 1
Page
HANWHA TECHWIN
246
DECAN
L2
Conveyor IF Board (7/10)
Page
HANWHA TECHWIN
247
DECAN
L2

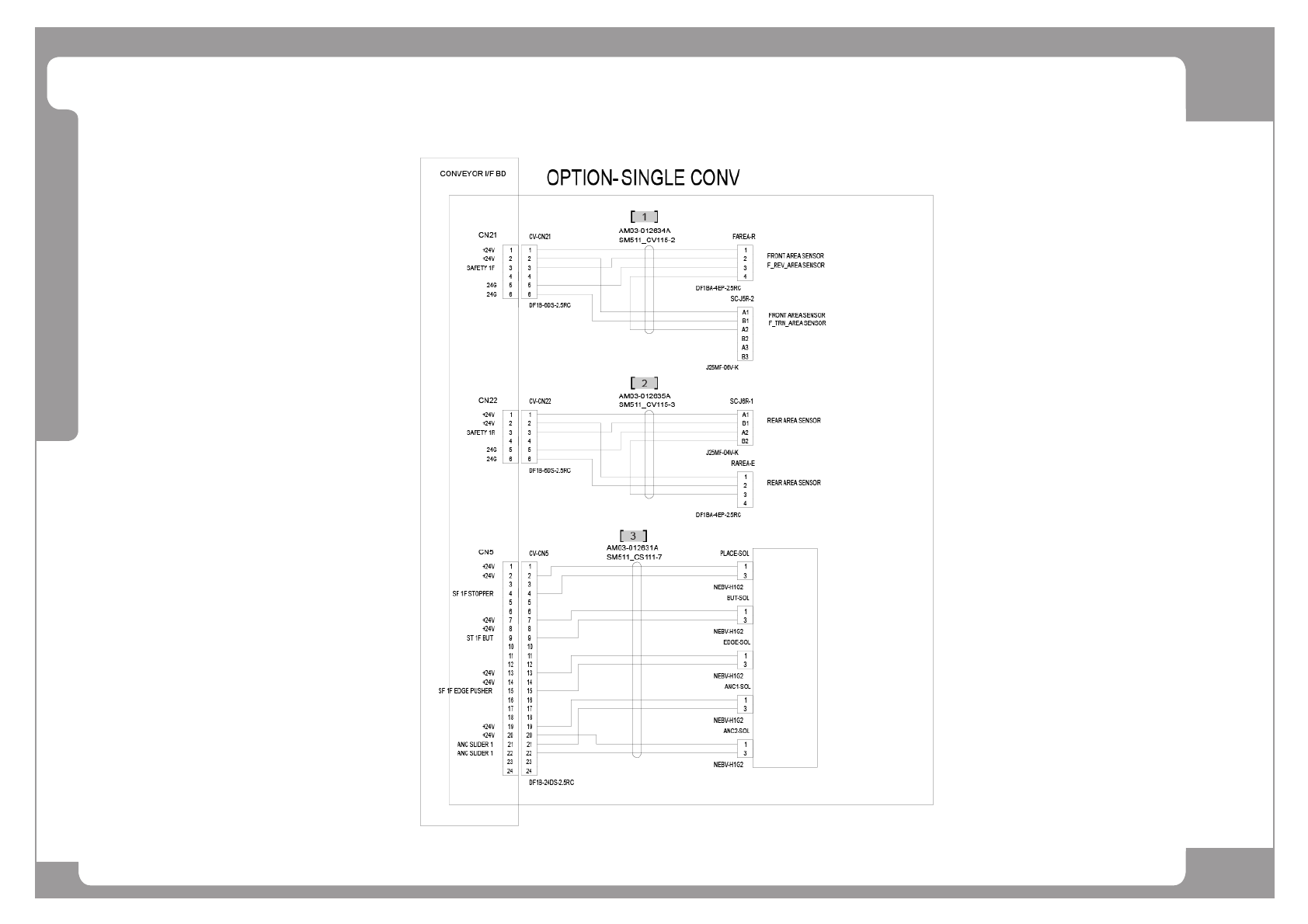

Conveyor IF Board (7/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-012634A CABLE ASSY-F_AREA_SENSOR_J5R 1
2 AM03-012635A CABLE ASSY-R_AREA_SENSOR_J6R 1
3 AM03-012631A CABLE ASSY-SINGLE_CONV_SOL 1
