Page HANWHA TECHWIN 267 DECAN L2 Head IF Board (4/5) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-015136A C ABLE ASSY -Z HOME SENSOR 1 2 AM03-017800A C ABLE ASSY -SW HOME SENSOR 1 AM03-01…
Page
HANWHA TECHWIN
266
DECAN
L2

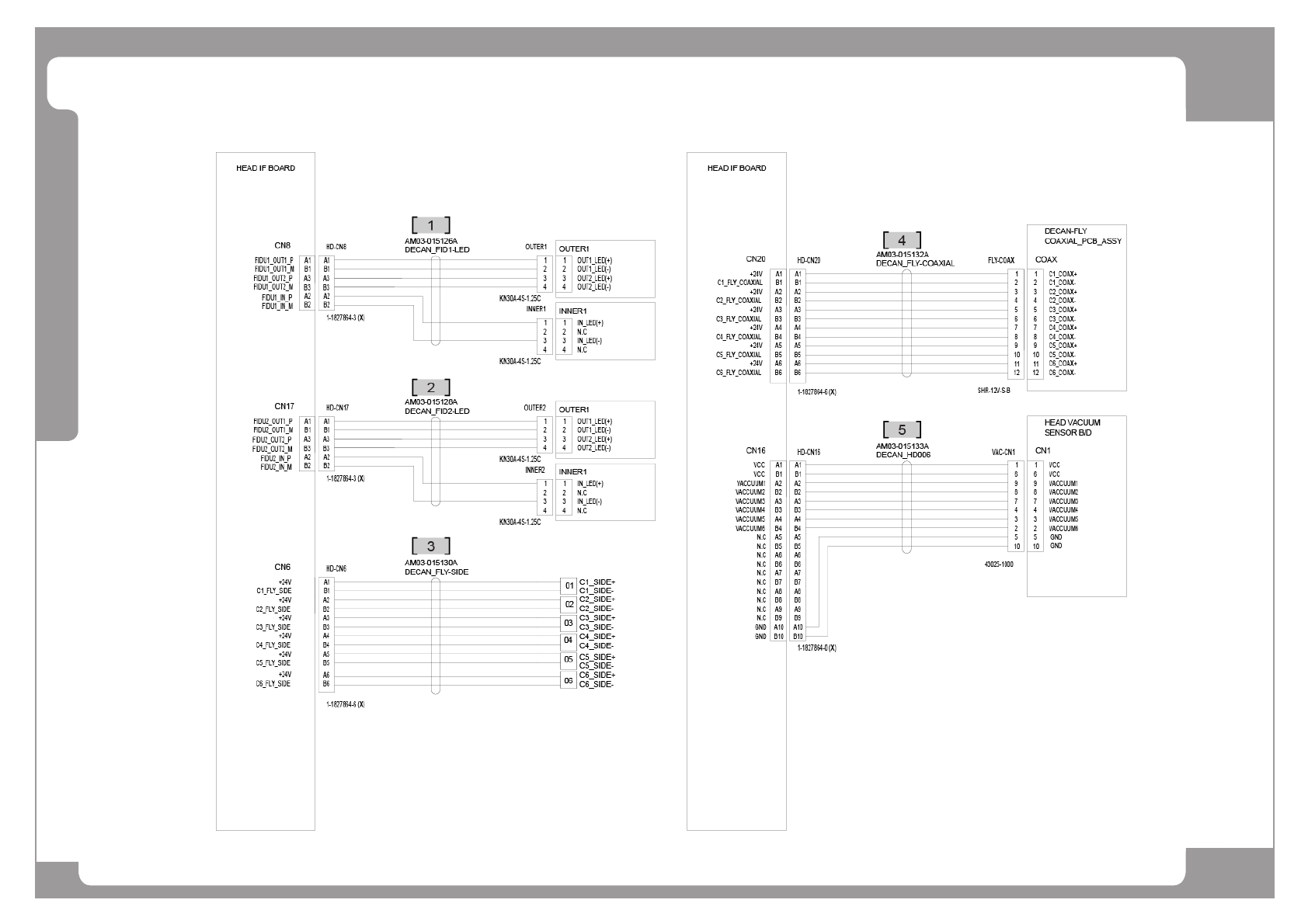

Head IF Board (4/5)
Page
HANWHA TECHWIN
267
DECAN
L2
Head IF Board (4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015136A CABLE ASSY-Z HOME SENSOR 1
2 AM03-017800A CABLE ASSY-SW HOME SENSOR 1 AM03-015137A
3 AM03-015139A CABLE ASSY-R AUX HOME SENSOR 1
4 AM03-017799A CABLE ASSY-R HOME SENSOR 1 AM03-015138A
Page
HANWHA TECHWIN
268
DECAN
L2
Head IF Board (5/5)
