DECAN_L2_TRM(Ver2.9_CS15.51) - 第275页
Page HANWHA TECHWIN 271 DECAN L2 Axis Sensor Board (1/6) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1671A CABLE ASSY -AXIS_SENSOR_BD_ PW 1 2 AM03-010798A CABLE A SSY -AXIS_SNS_BD_A X…
Page
HANWHA TECHWIN
270
DECAN
L2

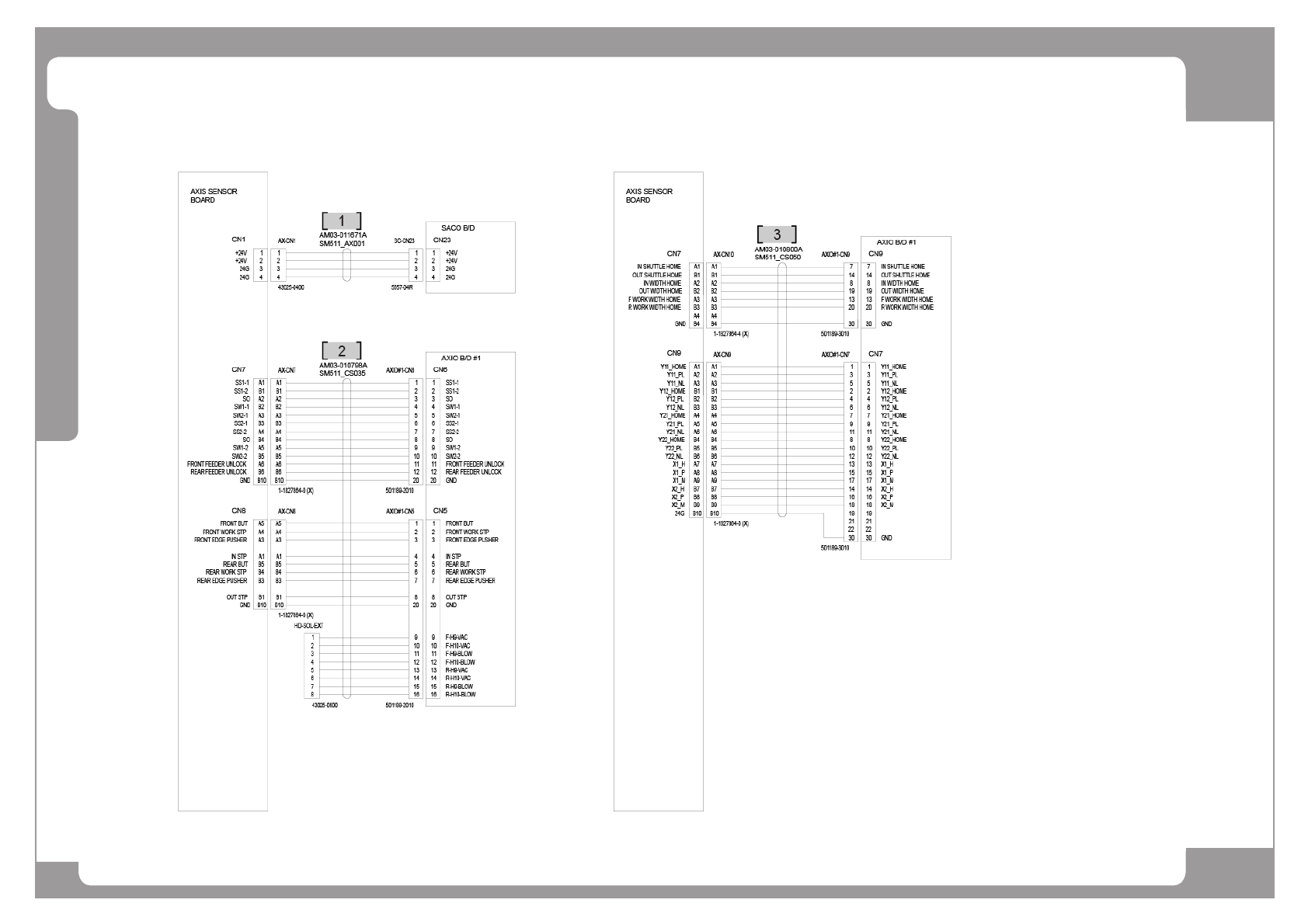

Axis Sensor Board (1/6)
Page
HANWHA TECHWIN
271
DECAN
L2
Axis Sensor Board (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011671A CABLE ASSY-AXIS_SENSOR_BD_PW 1
2 AM03-010798A CABLE ASSY-AXIS_SNS_BD_AXIO#1 1
3 AM03-010800A CABLE ASSY-AXIS_SNS_BD_CN9_10 1
Page
HANWHA TECHWIN
272
DECAN
L2

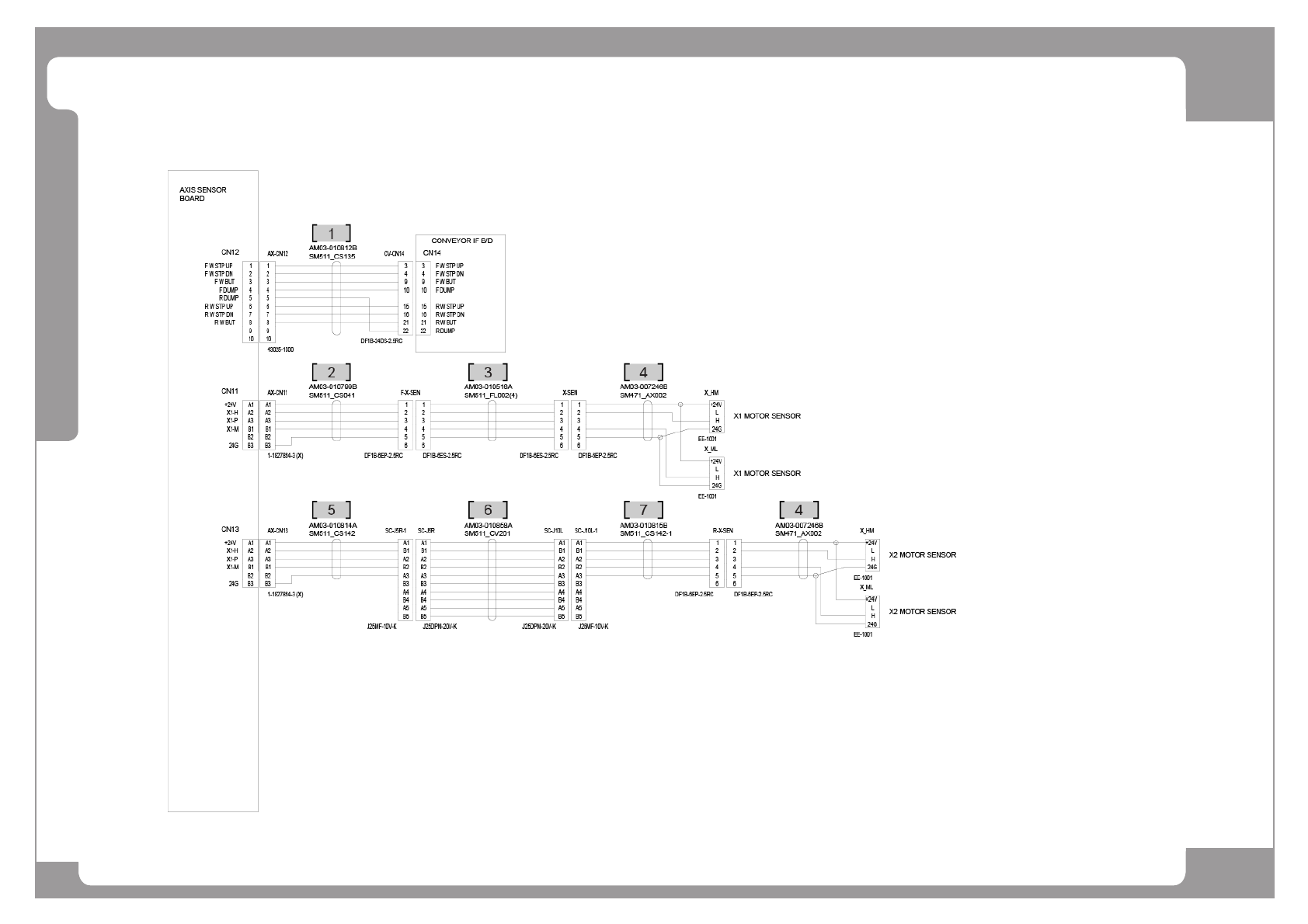

Axis Sensor Board (2/6)
