Page HANWHA TECHWIN 295 DECAN L2 Axis IO Board (7/16) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010985A CABLE ASSY -WS2_WW2_D RV_COMMAND 1 2 AM03-01 1290B CABLE ASSY -WS2_ENC_MS2_WS2 _…
Page
HANWHA TECHWIN
294
DECAN
L2

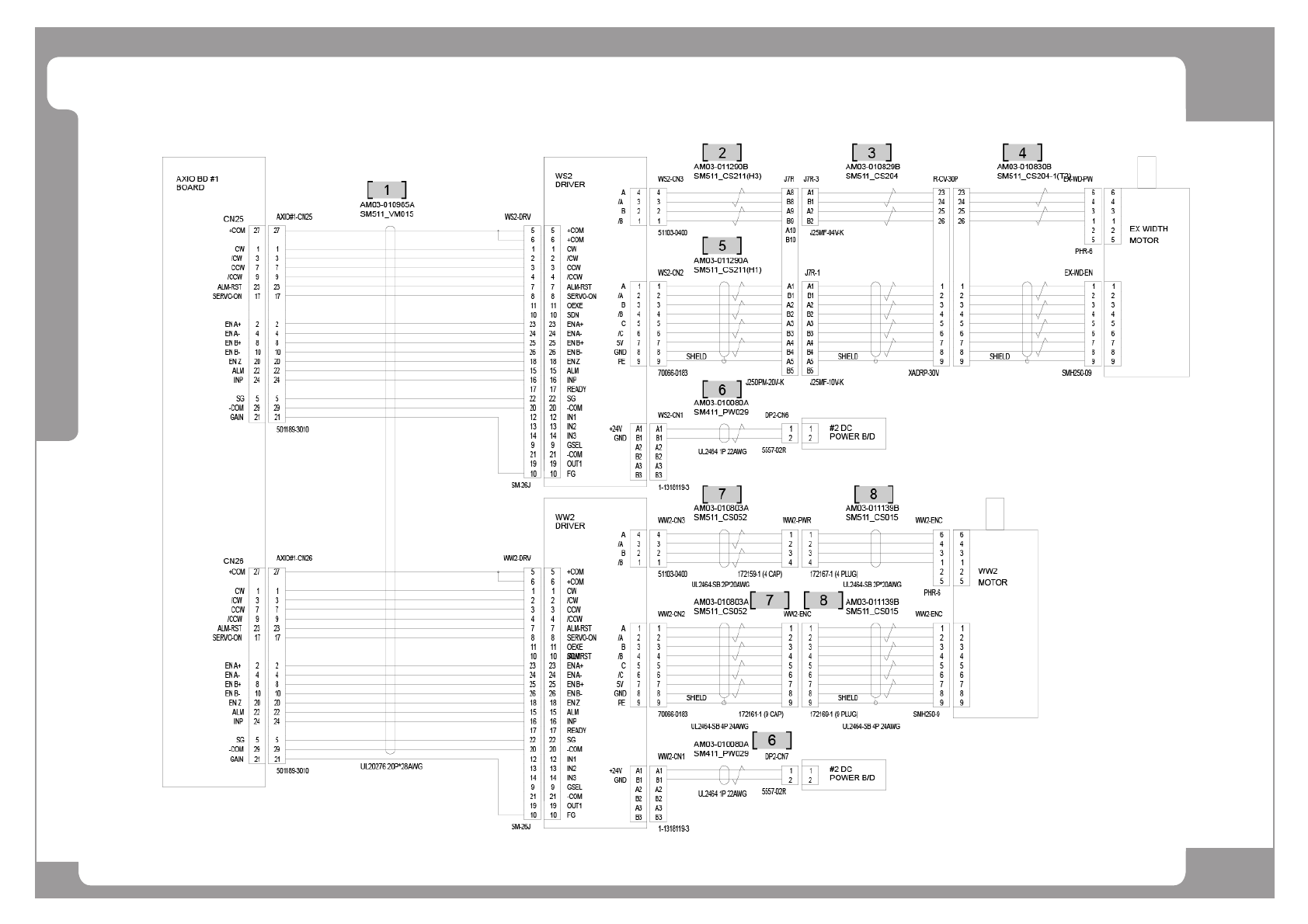

Axis IO Board (7/16)
Page
HANWHA TECHWIN
295
DECAN
L2
Axis IO Board (7/16)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010985A CABLE ASSY-WS2_WW2_DRV_COMMAND 1
2 AM03-011290B CABLE ASSY-WS2_ENC_MS2_WS2_BS2_PW_EXT 1
3 AM03-010829B CABLE ASSY-EXIT_CONV_30P_MODULE_A 1
4 AM03-010830B CABLE ASSY-EXIT_CONV_30P_MODULE_B 1
5 AM03-011290A CABLE ASSY-WS2_ENC_MS2_WS2_BS2_PW_EXT 1
6 AM03-010080A CABLE ASSY-SHUTTLE_WIDTH_PW 2
7 AM03-010803A CABLE ASSY-WW2_MOT_PW_ENC 2
8 AM03-011139C CABLE ASSY-WW2_SERVO_MOTOR 2
Page
HANWHA TECHWIN
296
DECAN
L2
Axis IO Board (8/16)
