Page HANWHA TECHWIN 299 DECAN L2 Axis IO Board (9/16) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1673A CABLE ASSY -BW34_BS34 _DRV_COMMAND 1 2 AM03-01 1289A CABLE ASSY -MS2_ENC_BS 2_P…
Page
HANWHA TECHWIN
298
DECAN
L2
Axis IO Board (9/16)
Page
HANWHA TECHWIN
299
DECAN
L2

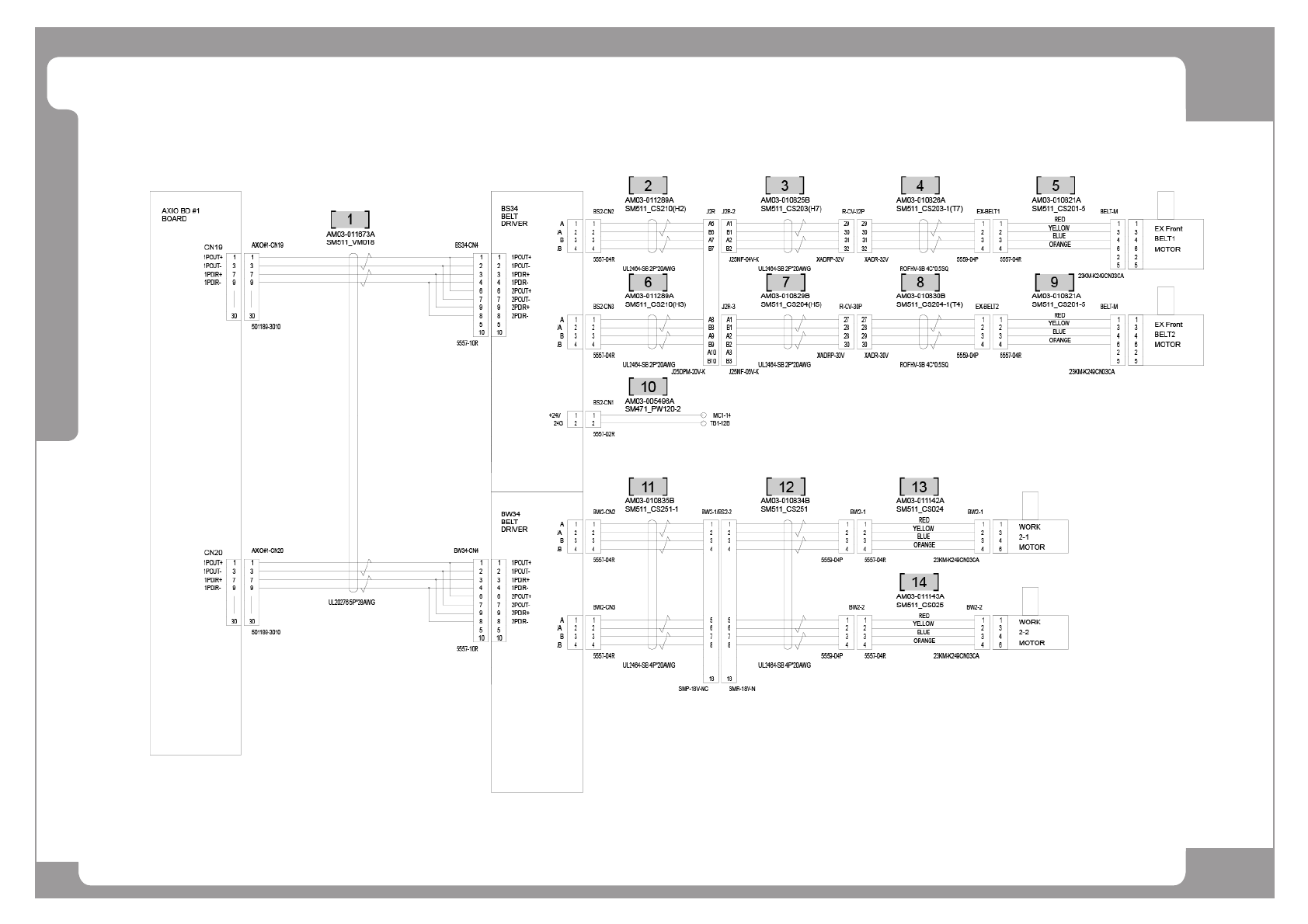

Axis IO Board (9/16)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011673A CABLE ASSY-BW34_BS34_DRV_COMMAND 1
2 AM03-011289A CABLE ASSY-MS2_ENC_BS2_PWR_EXT 1
3 AM03-010825B CABLE ASSY-EXIT_CONV_32P_MODULE_A 1
4 AM03-010826A CABLE ASSY-EXIT_CONV_32P_MODULE_B 1
5 AM03-010821A CABLE ASSY-CONV_BELT_STEP_MOTOR 1
6 AM03-011289A CABLE ASSY-MS2_ENC_BS2_PWR_EXT 1
7 AM03-010829B CABLE ASSY-EXIT_CONV_30P_MODULE_A 1
8 AM03-010830B CABLE ASSY-EXIT_CONV_30P_MODULE_B 1
9 AM03-010821A CABLE ASSY-CONV_BELT_STEP_MOTOR 1
10 AM03-005496A CABLE ASSY-BELT_DRV_PW 1
11 AM03-010835B CABLE ASSY-BW2-1,BW2-2_MOT_EXT1 1
12 AM03-010834B CABLE ASSY-BW2-1,BW2-1_MOT_EXT2 1
13 AM03-011142B CABLE ASSY-BELT MOTOR(BW2-1) 1
14 AM03-011143A CABLE ASSY-BELT MOTOR(BW2-2) 1
Page
HANWHA TECHWIN
300
DECAN
L2

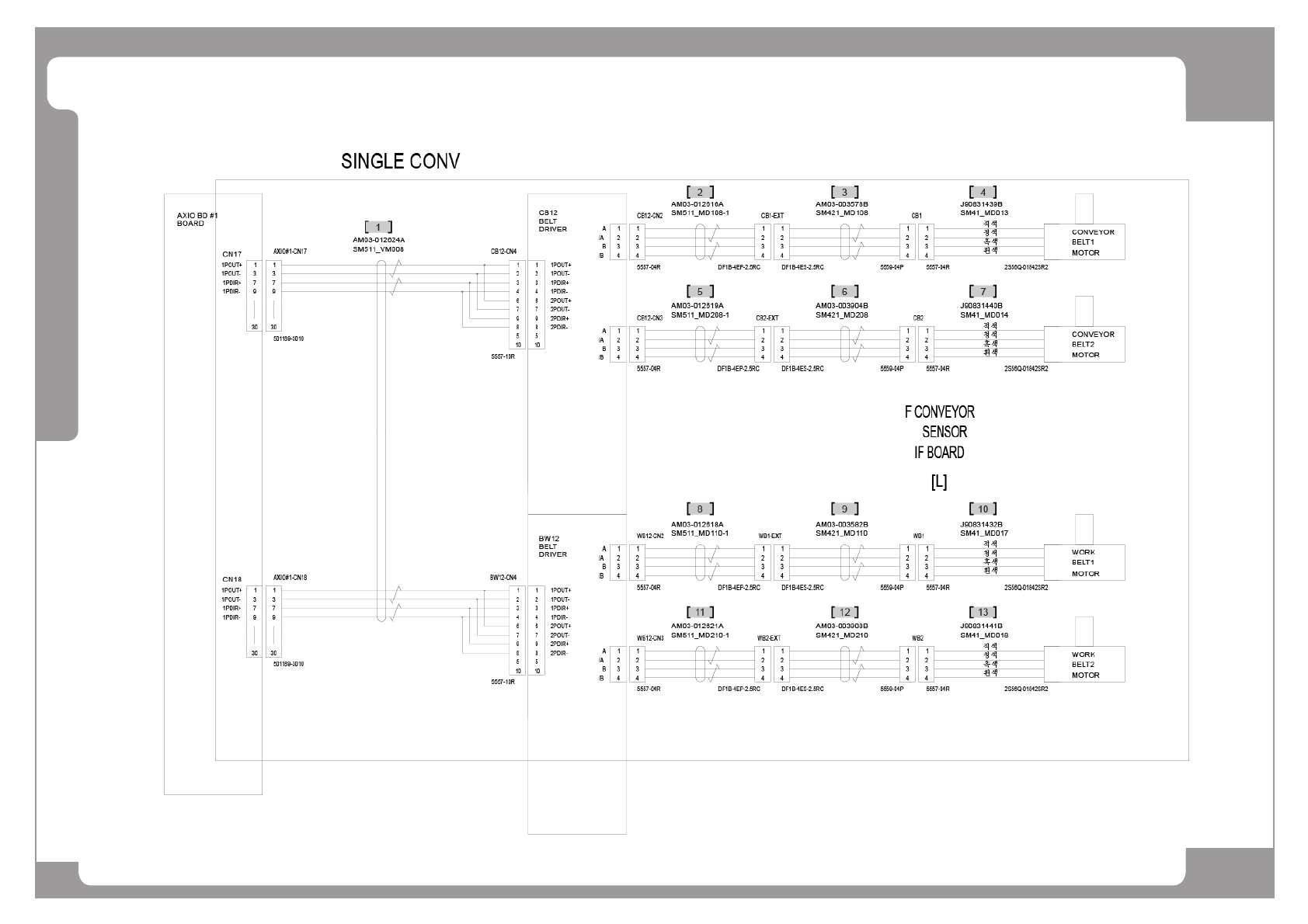

Axis IO Board (10/16)
