Page HANWHA TECHWIN 319 DECAN L2 Safety Control Board (3/8) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01094 8B CABLE ASSY -R_OP_P ANEL_IF 1 2 AM03-010905B CAB LE ASSY -OP_P ANEL_ASSY 1…
Page
HANWHA TECHWIN
318
DECAN
L2

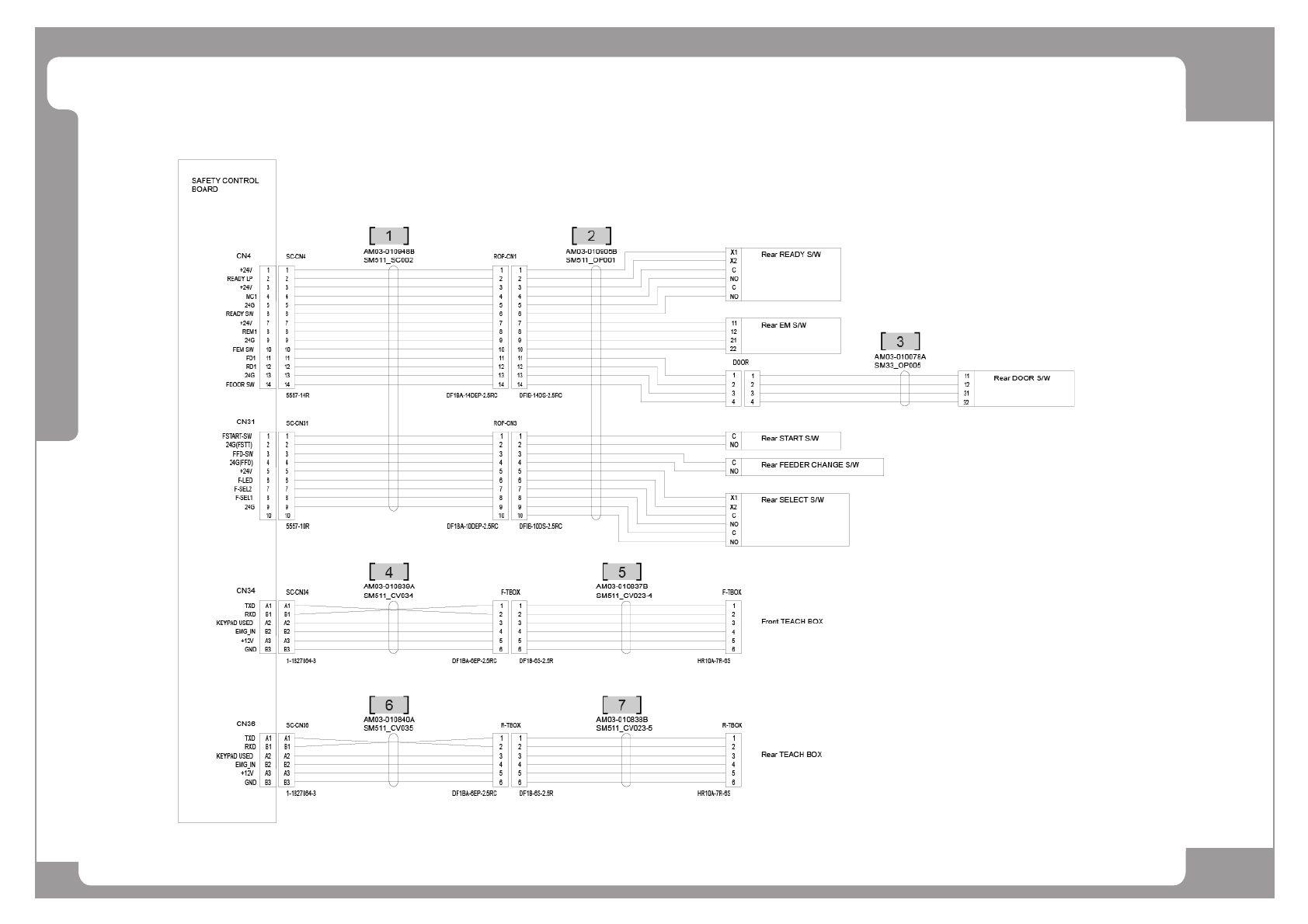

Safety Control Board (3/8)
Page
HANWHA TECHWIN
319
DECAN
L2
Safety Control Board (3/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010948B CABLE ASSY-R_OP_PANEL_IF 1
2 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1
3 AM03-010078A CABLE ASSY-FRONT_REAR_DOOR_SW 1
4 AM03-010839A CABLE ASSY-SACO_F_TBOX 1
5 AM03-010837C CABLE ASSY-FRONT_TEACHING_BOX_EXT 1 AM03-010837B
6 AM03-010840B CABLE ASSY-SACO_R_TBOX 1
7 AM03-010838C CABLE ASSY-REAR_TEACHING_BOX_EXT 1 AM03-010838B
Page
HANWHA TECHWIN
320
DECAN
L2
Safety Control Board (4/8)
