Page HANWHA TECHWIN 351 DECAN L2 Motor IF Board (11/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-00556 5A CABLE ASSY -Z34_D RV_COMMAND 1 2 AM03-013438 A CABLE ASSY -SM51 1 FLA T 1 1 A…

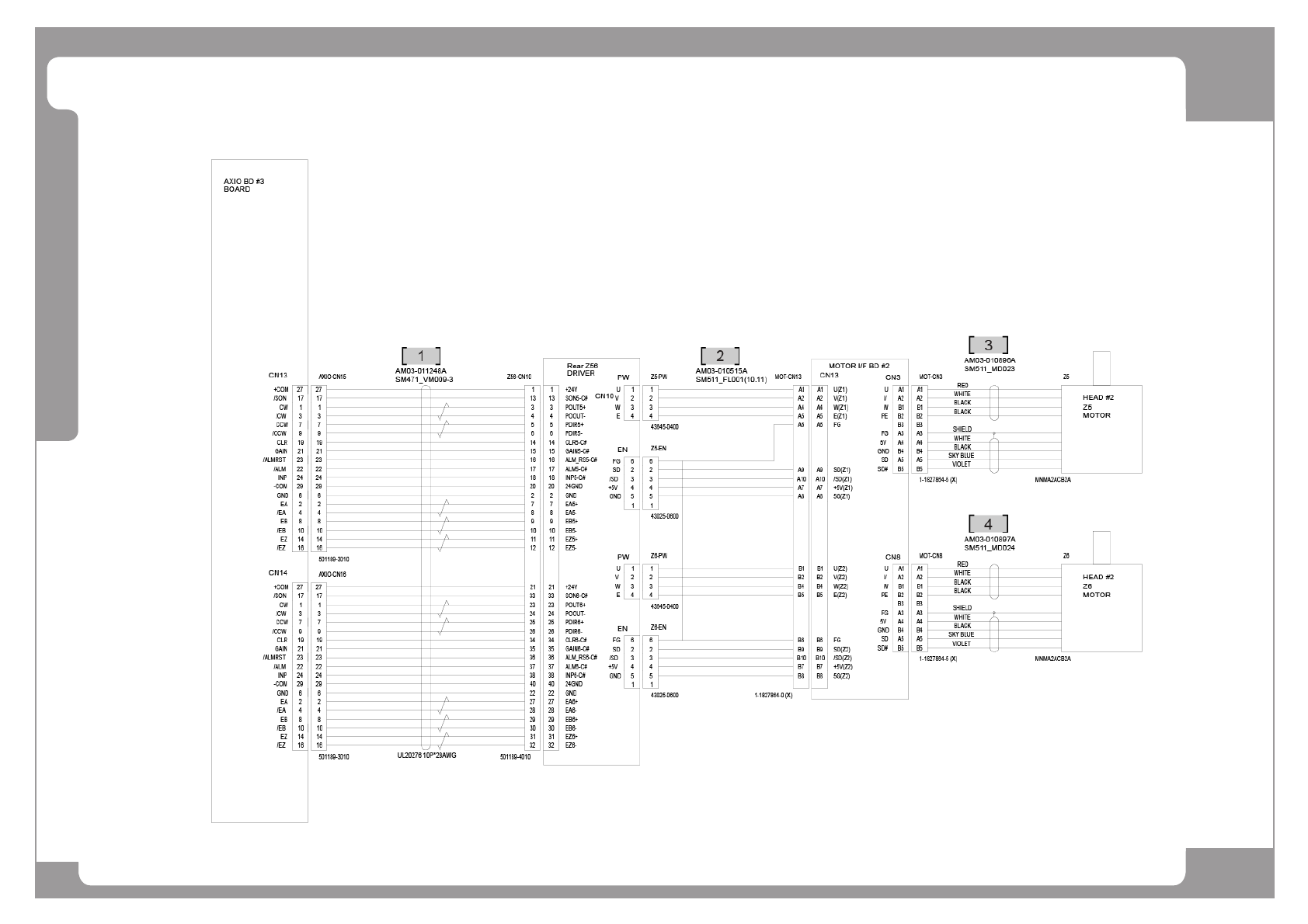

Page
HANWHA TECHWIN
350
DECAN
L2
Motor IF Board (11/18)

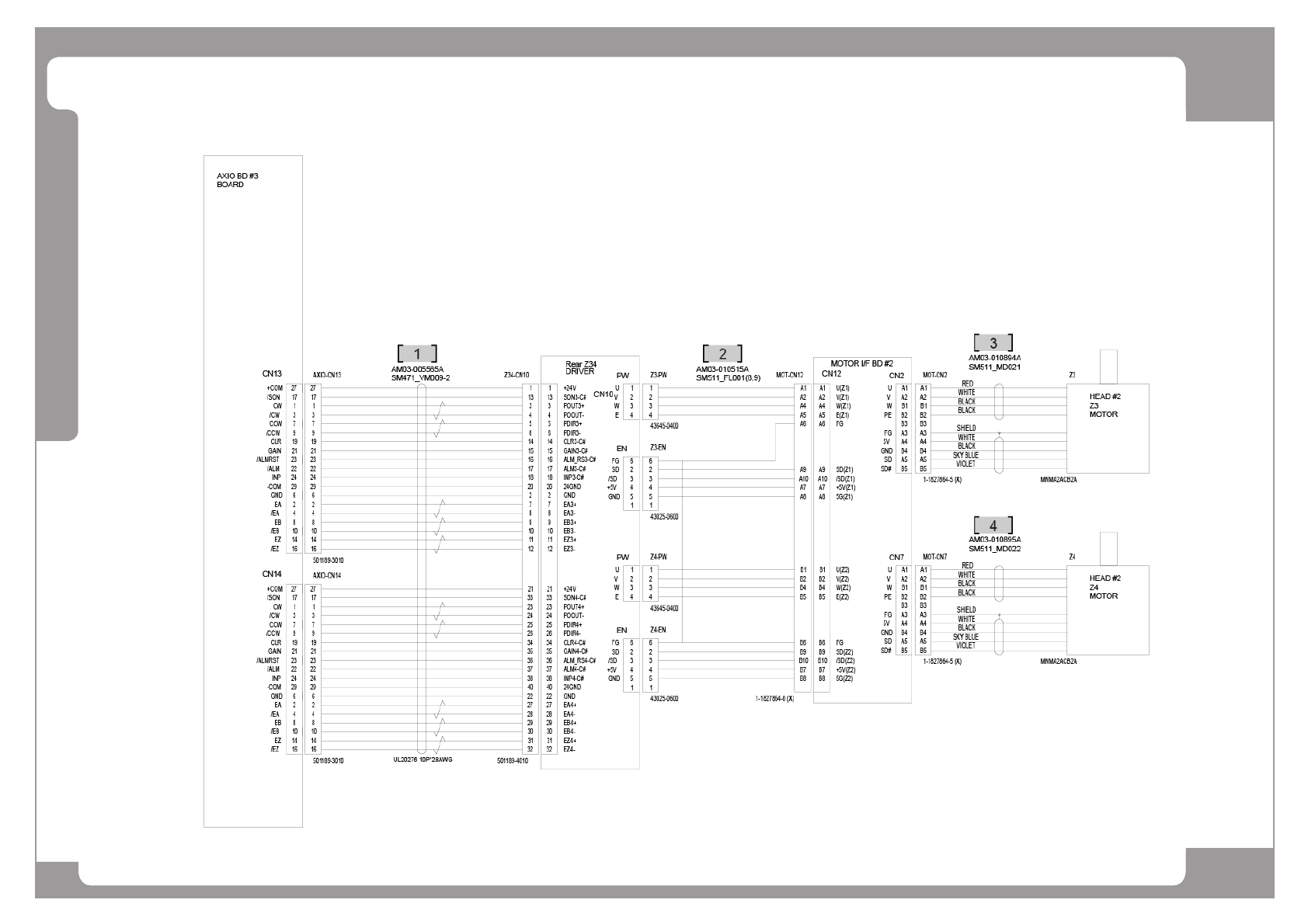

Page
HANWHA TECHWIN
351
DECAN
L2
Motor IF Board (11/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1
2 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
3 AM03-010894A CABLE ASSY-Z3_MOTOR 1
4 AM03-010895A CABLE ASSY-Z4_MOTOR 1
Page
HANWHA TECHWIN
352
DECAN
L2
Motor IF Board (12/18)
