Articles of Consumption
Articles of Consumption
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 3 Years
2 HP04-000178 FILTER-PF3-03D 3 Years
HP04-000103A FILTER-ELEMENT [PF3-24-005-01] 3 Years
3 HP04-000179 FILTER,OIL-PFH3-03D 3 Years
HP04-001045A FILTER,OIL-ELEMENT[PFH3000-005A-6081] 3 Years
4 HP11-000193 PUMP-KHF-14-V-01 6 Month
5 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years
6 EP02-001745B HARNESS-V1+ LOOF FAN CABLE ASSY 3 Years
7 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years
8 J90833316A FAN_CABLE_ASSY SM-FAN00 3 Years
9 EP10-900438 FUSE[250V 5A] Breakdown
10 EP10-900439 FUSE[250V 10A] Breakdown
11 MC05-000254 BELT-MAM-5P-860-7W Inspect and replace (6 Months)
12 MC05-900130 FLAT BELT-WORK_FIX_750 Inspect and replace (6 Months)
13 MC05-000261 BELT-MAM-5P-1760-7W;MAM-5P,1760,7,1.2 Inspect and replace (6 Months)
14 TE07-900010 CONV_WORK_BELT_2 MAM-5P-1065-7W Inspect and replace (6 Months)
15 MC05-000068A BELT_SHUTTLE_945 Inspect and replace (6 Months)
16 MC05-000234 BELT_SHUTTLE_1504 Inspect and replace (6 Months)
17 MC05-900057 BELT_WORK MAM-5P-1550-6W Inspect and replace (6 Months)
18 J7055140A STEEL BALL [DIA2, SUS304] 1 Years
19 J72550021C SILICON TUBE(BLACK) 1 Years
20 HP04-900036 SUCTION_FILTER VYF44-M-50M 3 Month
Page
HANWHA TECHWIN
376
DECAN
L2
Nozzle /JIG
Page
HANWHA TECHWIN
377
DECAN
L2
Nozzle /JIG

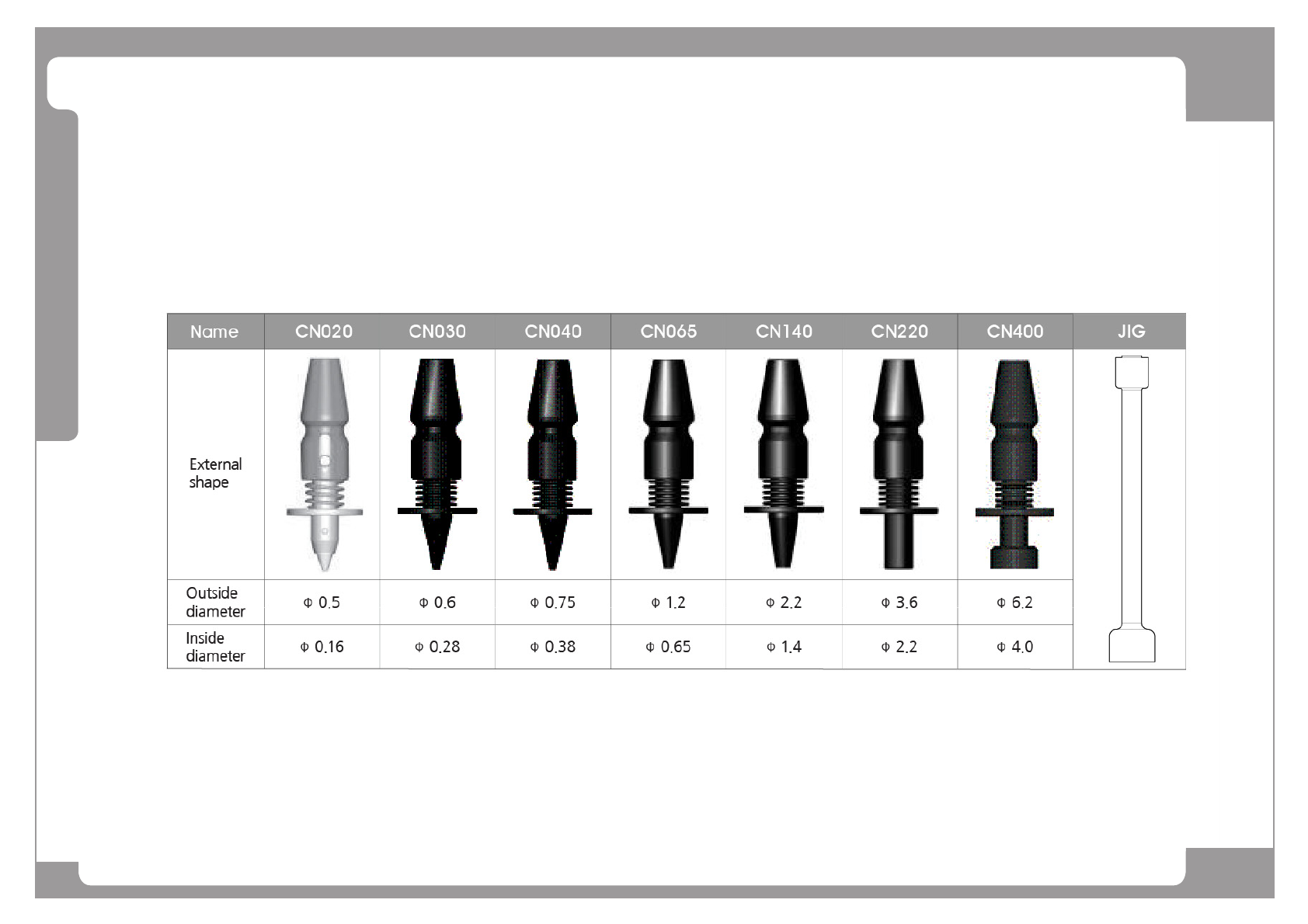

NO. PART NO. Part NAME Q'TY Old No. Reference
J90551006A NOZZLE_CN020_ASSY
J9055133C NOZZLE CN030 ASSY
J9055134C NOZZLE CN040 ASSY
J9055136C NOZZLE CN065 ASSY
J9055260B NOZZLE CN110 ASSY
J9055256A NOZZLE CN140 ASSY
J9055351A NOZZLE CN220 ASSY(CERAMIC)
J90551072A NOZZLE_CN400_ASSY
TO04-001051A SM511 HEAD PIN HEIGHT_MASTER JIG
J9055259B NOZZLE CN750 ASSY
J90551240A CALIBRATION_PLATE_ASSY
