Page HANWHA TECHWIN 44 DECAN L2 Shuttle Conveyor (6/10)
Page
HANWHA TECHWIN
43
DECAN
L2
Page
HANWHA TECHWIN
44
DECAN
L2

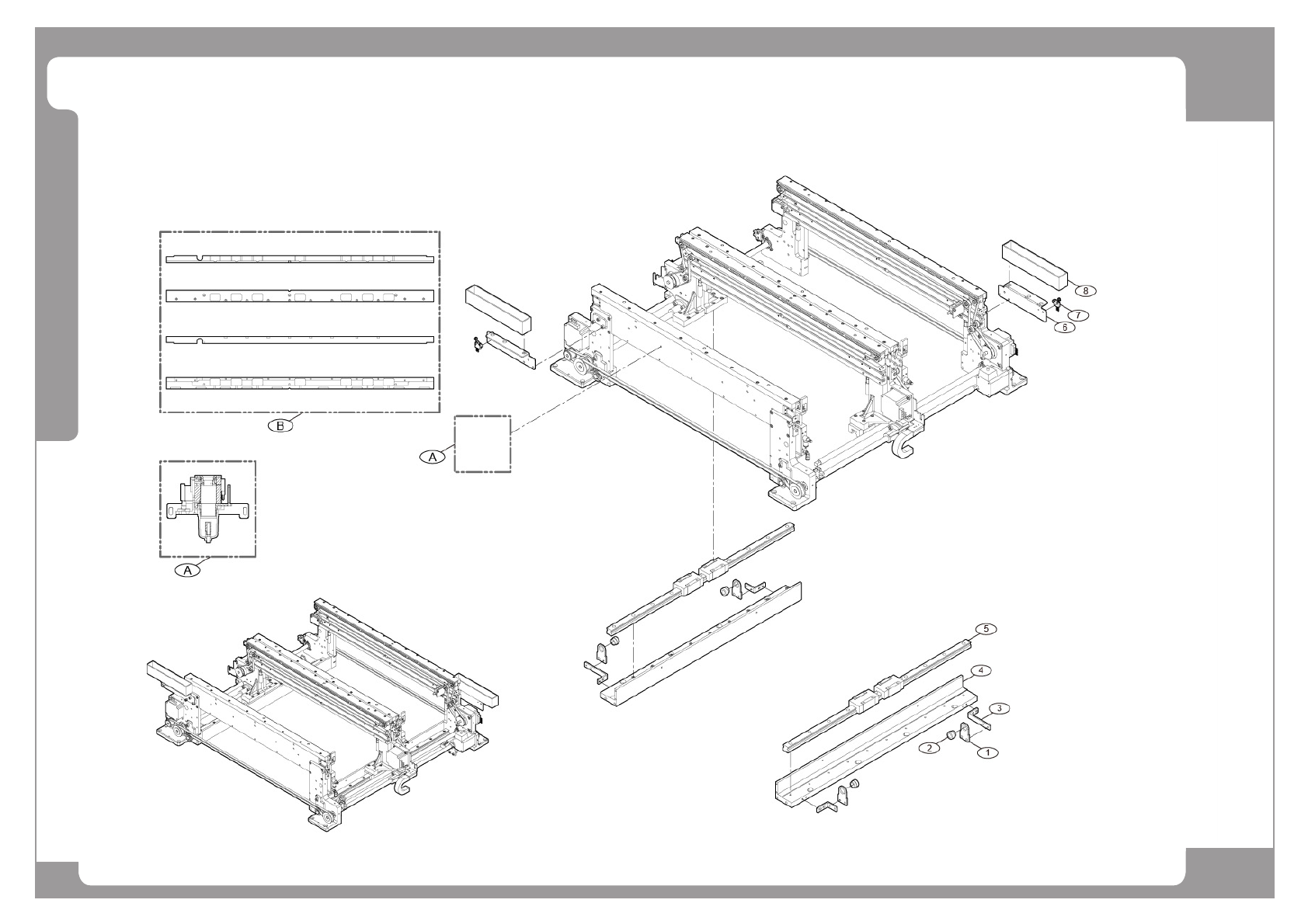

Shuttle Conveyor (6/10)
Page
HANWHA TECHWIN
45
DECAN
L2
Shuttle Conveyor (6/10)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-004582A BKT_TAIL 4 J70531024A
2 J72531002A BUSH_TAIL 4
3 FC09-004584A SUPPORT_BKT_L 4 J71531006B
J71531005B SUPPORT_BKT_S 4 FC09-004586A
4 J71531010C LM_BASE_R 2
5 MC13-900068 LM_GUIDE 2
6 FC29-002694D SUPPORT-DUMPBOX_1 2 FC29-002694C
7 EP20-900101 SW-D2HW_C243M-100 2
8 J72531005C DUMP_BOX 2
A AM03-017756A AIR_SHOWER_ASSY J90531115A 1 J90531115A OPTION
FC09-006376A BRACKET-SUPPORT F D 1 Dual Conveyor type Bracket (Front)
FC09-006377A BRACKET-SUPPORT F S 1 Single Conveyor type Bracket (Front)
FC09-006378A BRACKET-SUPPORT R 1 Sharing Bracket (Rear)
