Long bo ard option 2 Assembly instructions Long board op tion SIPLACE D1 / D2 06/2007 Edition 45 : Connect the air hose to the conveyor's pneumatic distri butor using the T -piece. T- p i e c e 2 : Run the connectin…
2 Assembly instructions Long board option SIPLACE D1 / D2 Long board option
06/2007 Edition
44

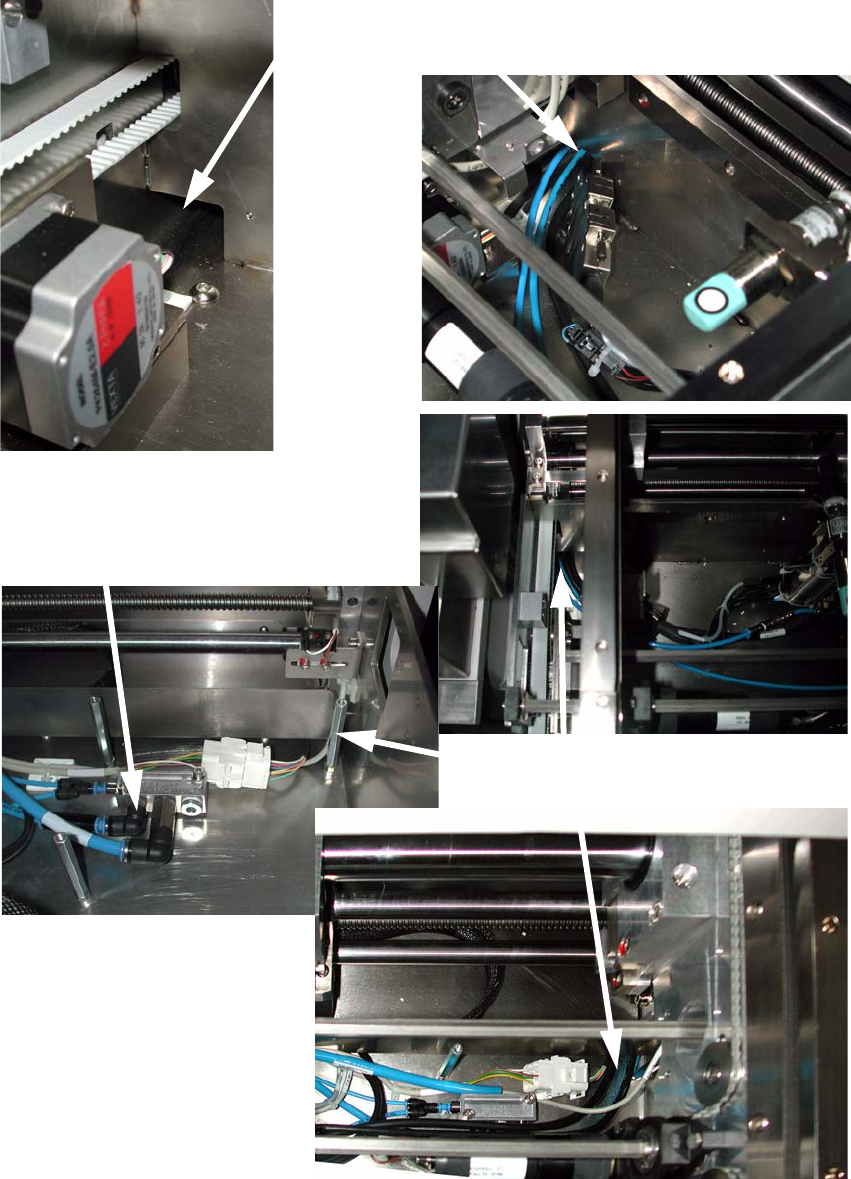

: Run the cable and hose (or 2 cables, 2 hoses on the DC) without bending through the opening
on the left-hand side beneath the conveyor width adjuster to the conversion board.
Cable gland
Cable gland
Air connection
2
Long board option 2 Assembly instructions Long board option SIPLACE D1 / D2
06/2007 Edition
45

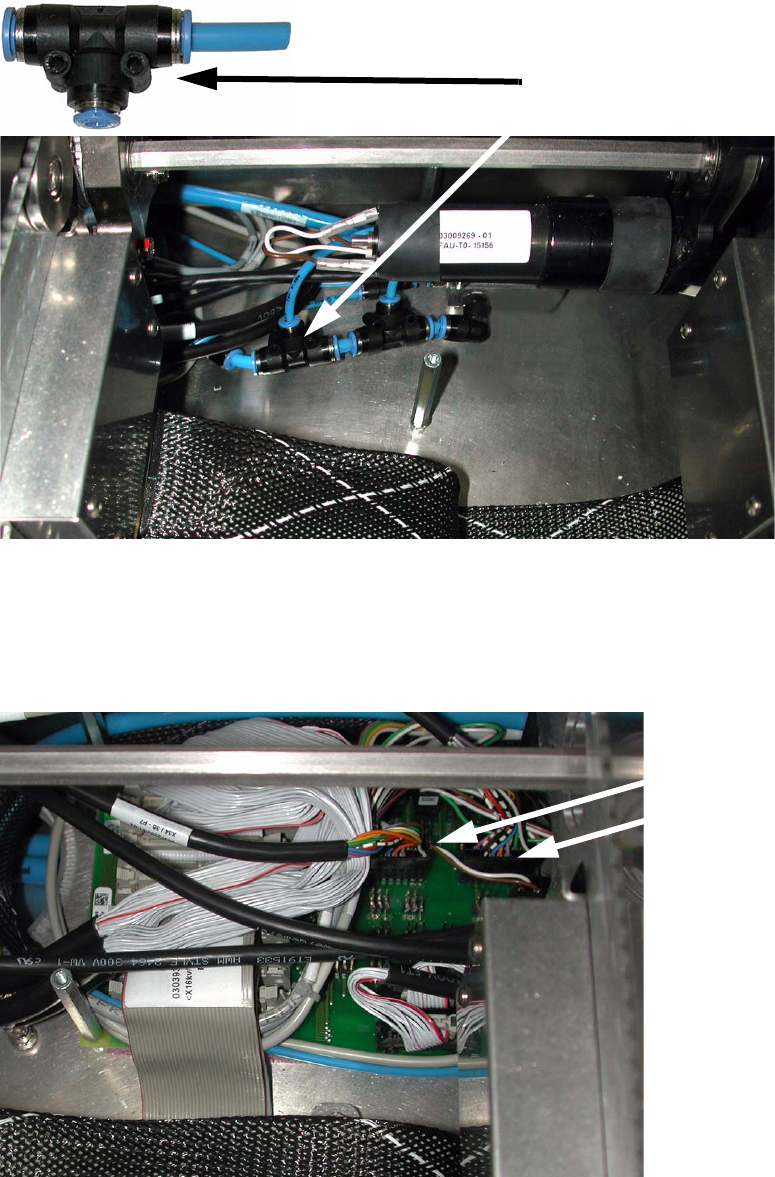

: Connect the air hose to the conveyor's pneumatic distributor using the T-piece.
T-piece
2
: Run the connecting cable to the conveyor conversion board, and plug the cable into the rele-
vant slots on the conversion board (00372253-01):
X34 for conveyor track 1,
X35 for conveyor track 2.
X34
X35
2
2 Assembly instructions Long board option SIPLACE D1 / D2 Long board option
06/2007 Edition
46

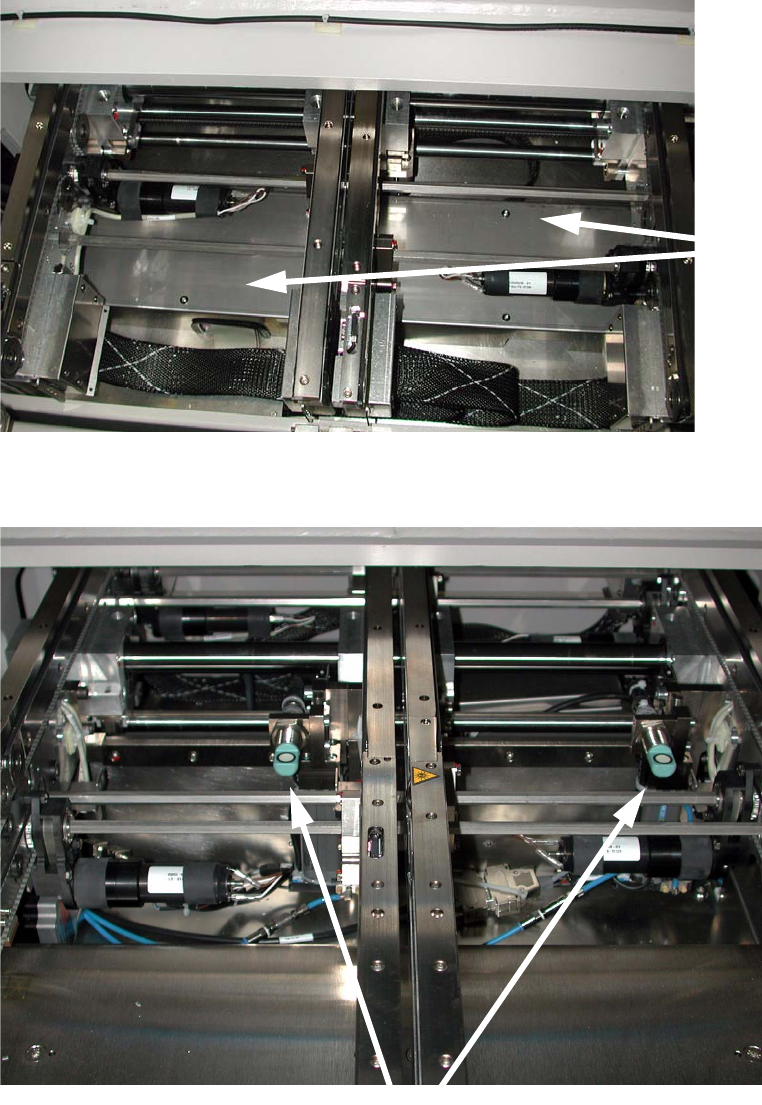

: Fit the cover over the conversion board (6 screws) beneath the output conveyor belt.
Cover
2
The stoppers should now look as follows (example of the dual conveyor): 2
Stopper
2
: Switch the placement machine on at the main switch and start the SITEST program.
