Long bo ard option 2 Assembly instructions Long board op tion SIPLACE D1 / D2 06/2007 Edition 51 : Click on the boxes behind "Laser light barr ier" and on the "Set " box that appears. Click bo x "…
2 Assembly instructions Long board option SIPLACE D1 / D2 Long board option
06/2007 Edition
50

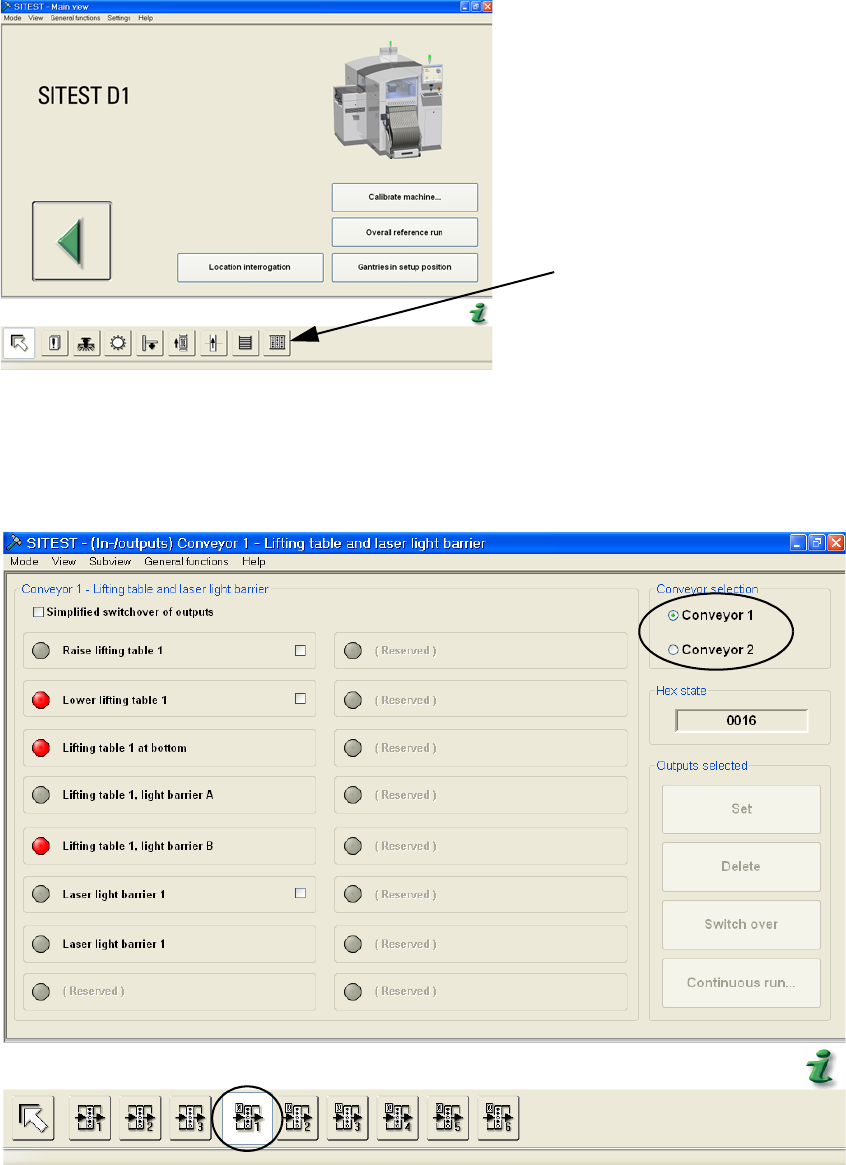

: Select "I/O Functions".
I/O Functions
2
2
: Click the buttons to take the settings for the laser light barrier
Choose the conveyor track.
2
2
Long board option 2 Assembly instructions Long board option SIPLACE D1 / D2
06/2007 Edition
51
: Click on the boxes behind "Laser light barrier" and on the "Set" box that appears.
Click box
"Laser light barrier"
Click "Set"
2
2
2
2
2
2
2
2
2
2
2
2
2 Assembly instructions Long board option SIPLACE D1 / D2 Long board option
06/2007 Edition
52
2.7.2 Extending the stopper
: Select, if not already done, in the Main view "General Functions" --> "Running Options" -->
"Cycle Mode".

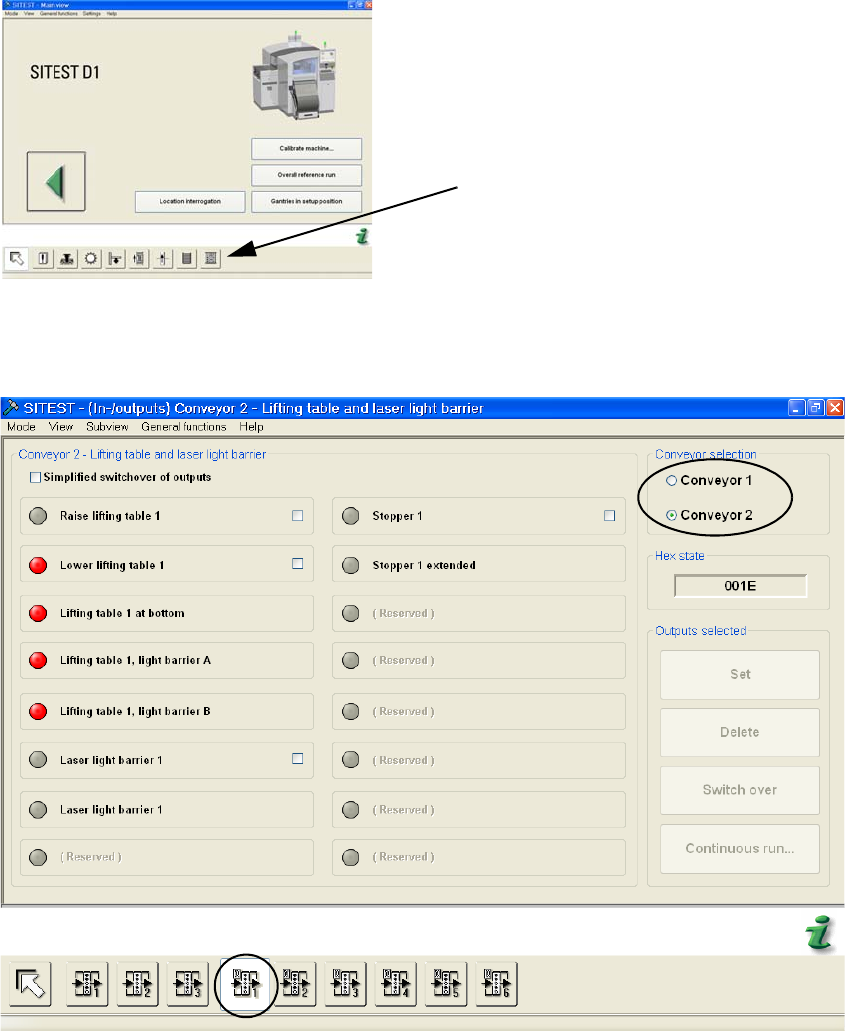

: Start the SITEST program.
: Select "I/O Functions".
"I/O functions"
2
: Click on the boxes to set up the extending of the stopper.
Choose the conveyor track.
2
