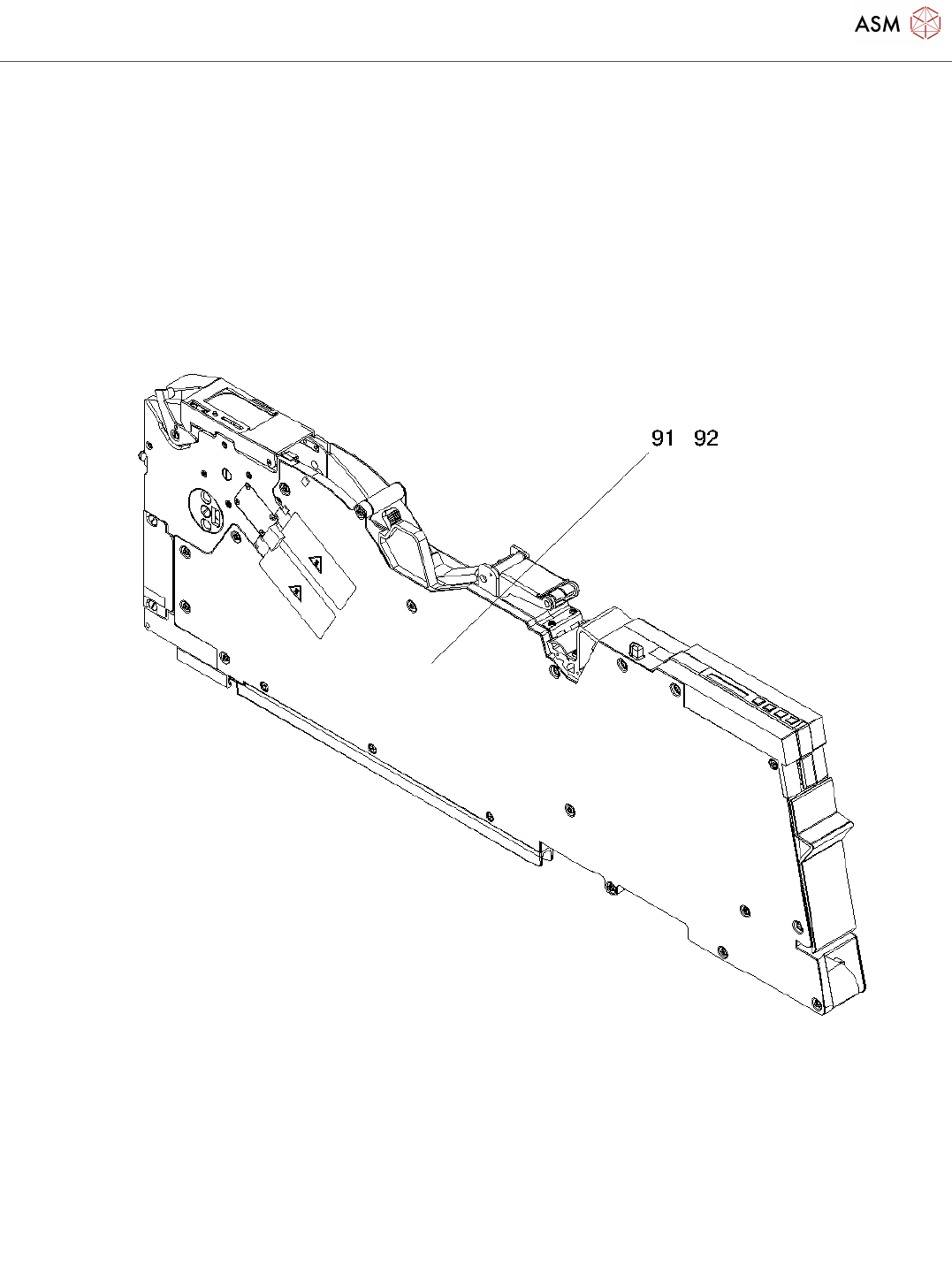

Tape feeder module 32mm X FS06 Page 9 / 13 18.11.2021
Tape feeder module 32mm X FS06
Page 8 / 13 18.11.2021
Tape feeder module 32mm X FS06
Page 9 / 13 18.11.2021
Tape feeder module 32mm X FS06
Page 10 / 13 18.11.2021
Pos. Item no. Description Part marking
1 00141274S06 TAPE FEEDER MODULE 32MM X
3 03020616-06 TAPE FEEDER MODUL 32MM X
4 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
03032819S01 CABLE /IRDA - EDIF SECONDARY SPARE PART
03006814-01 CABLE SENSOR FOIL ROCKER SPARE PART
03006815-01 CABLE SENSOR REMOVAL HANDLE SPARE PART
8 00328542-01 SN 213307-H-M2,5 X 6-A2 STANDARD PARTS
9 03042444-01 FOIL CASE COMPLETE /X32
10 03009198S01 HANDLE CPL. / X-SERIES Spare Part
11 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
12 03002644S01 WINDOW /CONTROL PANEL SPARE PART
13 03021637S01 CONTROL PANEL KEY COVER CPL.
/X-SERIES
SPARE PART
14 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
15 03033798-01 REMFORM-SCREW RF-SN75-2,5 X
10-9.8
STANDARD PARTS
16 03022105S02 FOIL DISPOSAL /FLAT SPRING
X16-88
SPARE PART
17 03042406S01 AXIS FLAP /FOIL CASE X32 SPARE PART
18 03041706-01 FLAP /TAPE DISPOSAL X32
19 00341370S01 BLADE, PARTITION SPARE PART
20 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
21 03042450S01 BEARING SHAFT COMPENSATOR
/X32
SPARE PART
22 03042445S02 COMPENSATOR COMPLETE /X32 Spare Part
23 03042447S02 TAMP WHEEL PLANE COMPLETE
/X32
SPARE PART
24 03042450S01 BEARING SHAFT COMPENSATOR
/X32
SPARE PART
25 03048855-01 PRESSURE SPRING
0.75X6.25X31X8.5
SPARE PART
26 03042455S03 FOIL DISPOSAL COMPLETE /X32 Spare Part
27 03043774-01 ADJUSTMENT WASHER /D3.1 D15
T0,1
STANDARD PARTS
28 03042535-01 ISO 4762 - M 2,5 X 10-A2-70 STANDARD PARTS
29 03042451S01 TAMP WHEEL KNURLED CPL./FOIL SPARE PART
