Page HANWHA TECHWIN 103 SM471 Electric Device Ass’y (2/4) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Su pply L T Reference 1 AM03-003542A CAB LE ASSY INLINE_IN_OUT 1 2 EP07-900028 MAIN_CIRCUIT_BREAKER GV2…
Page
HANWHA TECHWIN
102
SM471
Electric Device Ass’y (2/4)
Page
HANWHA TECHWIN
103
SM471
Electric Device Ass’y (2/4)

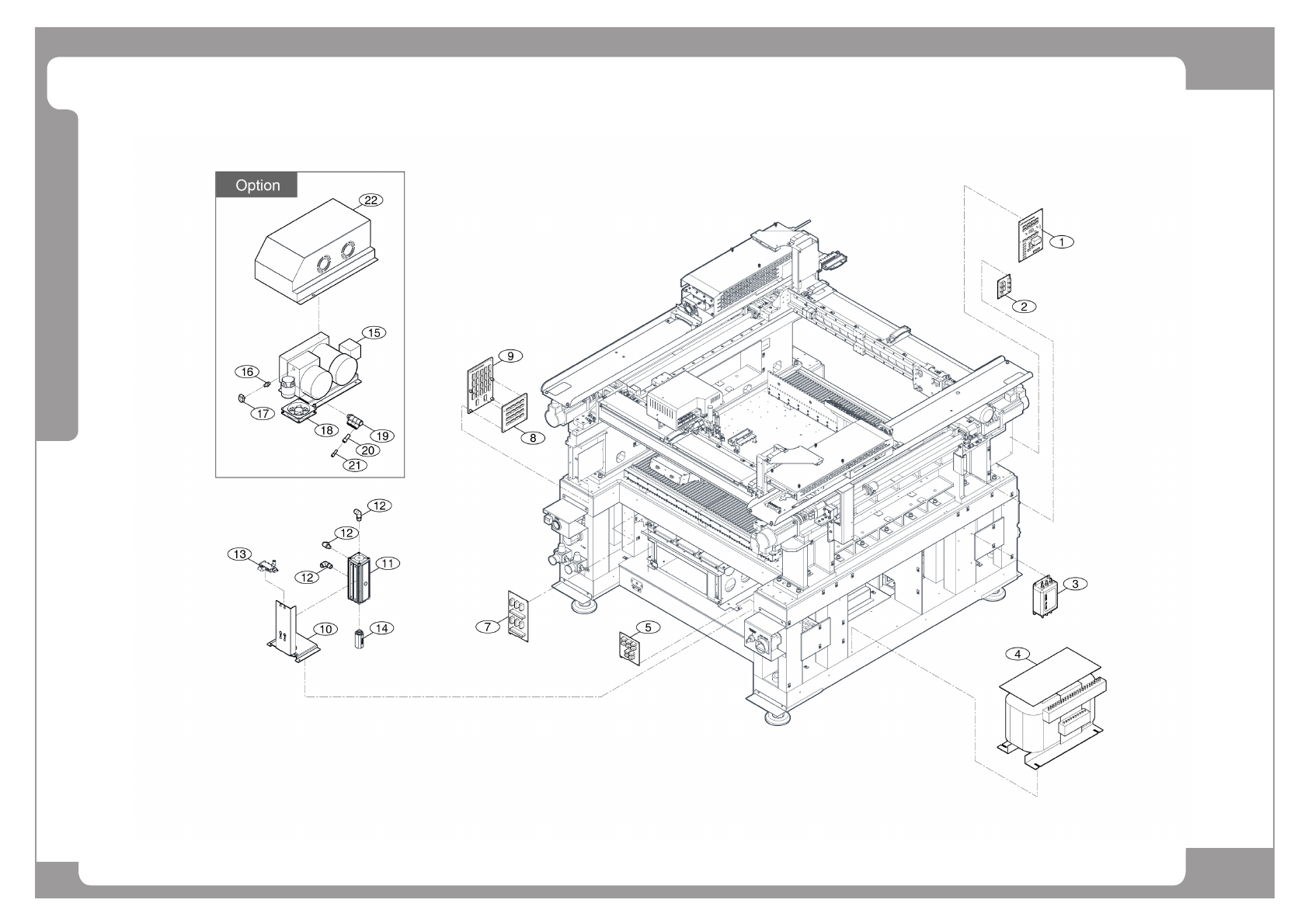

NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-003542A CABLE ASSY INLINE_IN_OUT 1
2 EP07-900028 MAIN_CIRCUIT_BREAKER GV2ME22 1
3 EP21-900008 PANEL 1
4 J70521076B POWER_PANEL_R J70521076B 1
5 AM03-003573A CABLE ASSY-LAN_EXT 1
6 FC30-002551A GROUND TERMINAL [J7152027A] 1 J7152027A
7 CD04-900026 MINI_KEYBOARD 5510UH 2
8 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2
9 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm 2 CD04-900012
10 AM03-005366A TEACHING_BOX 1
11 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900126
Page
HANWHA TECHWIN
104
SM471
Electric Device Ass’y (3/4)
