Page HANWHA TECHWIN 152 SM471 Axis IO Board (4/13) [1 ] [3 ] [2 ] [4 ] [7 ] [6 ] [1 0 ] [1 1 ] [8 ] [9 ] [1 2 ] [5 ] SM 471- VM 0014
Page
HANWHA TECHWIN
151
SM471
Axis IO Board (3/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005559B CABLE ASSY-FX_RX_DRV_COMMAND 2 SM471-VM005
2 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016
3 AM03-008741A CABLE ASSY-FX_MOTOR_PWR 1 SM471_MD001
4 AM03-008740A CABLE ASSY-FX_MOTOR_ENC 1 SM471_MD002
5 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD027
6 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD030
7 AM03-008742A CABLE ASSY-RX_MOTOR_PWR 1 SM471_MD003
8 AM03-008743A CABLE ASSY-RX_MOTOR_ENC 1 SM471_MD004
9 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017
Page
HANWHA TECHWIN
152
SM471

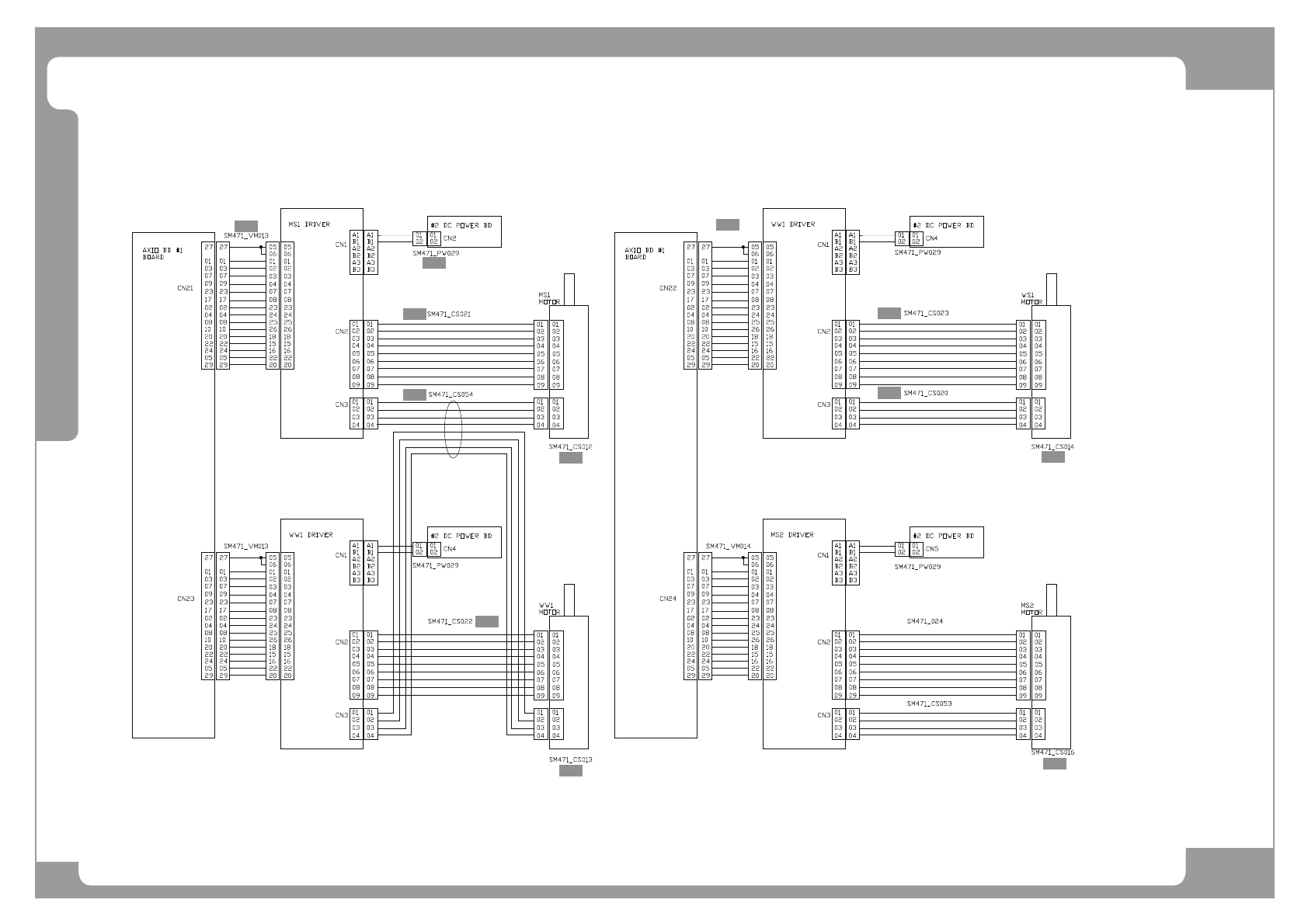

Axis IO Board (4/13)
[1]
[3]
[2]
[4]
[7]
[6]
[10]
[11]
[8]
[9]
[12]
[5]
SM471-VM 0014
Page
HANWHA TECHWIN
153
SM471
Axis IO Board (4/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005573B CABLE ASSY-MS1_WS1_DRV_COMMAN 2 SM471_VM013
2 AM03-010080A SHUTTLE_WIDTH_PW_CABLE_ASSY 4 J90831091C SM471_PW029
3 AM03-008897A CABLE ASSY-MS1_MOTOR_ENC 1 SM471_CS021
4 AM03-008896A CABLE ASSY-MS1_WW1_MOT_PW 1 SM471_CS054
5 AM03-002180A CABLE ASSY-MS2_SERVO_MOTOR 1 SM33-CS016
6 AM03-008899A CABLE ASSY-WW1_MOTOR_ENC 1 SM471_CS022
7 AM03-008023A CABLE ASSY-MS1_SERVO_MOTOR 1 SM33-CS012
8 AM03-008900A CABLE ASSY-WS1_MOTOR_ENC 1 SM471_CS023
9 AM03-008898A CABLE ASSY-WS1_MOTOR_PW 1 SM471_CS020
10 AM03-006636A CABLE ASSY-WS1_SERVO_MOTOR 1 SM33_CS013
11 AM03-005574B CABLE ASSY-WW1_MS2_DRV_COMMAND 2 SM471_VM014
12 AM03-008024A CABLE ASSY-WW1_SERVO_MOTOR 1 SM33-CS014
