SM471_TRM(Ver5.9_CS16.18) - 第186页
Page HANWHA TECHWIN 182 SM471 Safety Control Boar d Interface (1/4) [1 ] [2 ] [3 ] [4 ] [5 ] SM 48 - SC 0 0 2
Page
HANWHA TECHWIN
181
SM471
Vision IF Board (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005547A CABLE ASSY-HD1_FLY_CAM_PW_SYNC 1 SM471-VIS005
2 AM03-005548B CABLE ASSY-FLY_CAM_PWR-SYNC_EXT 1 AM03-005548A SM471-VIS006
3 AM03-005550A CABLE ASSY-HEAD1 FLY CAM SIG 1 SM471-VIS008
4 AM03-005551A CABLE ASSY-FLY CAM SIG EXT 1 SM471-VIS009
5 AM03-005549B CABLE ASSY-HEAD2 FLY CAM PWR/SYNC 1 SM471-VIS007
6 AM03-005552B CABLE ASSY-HEAD2 FLY CAM SIG 1 SM471-VIS010
Page
HANWHA TECHWIN
182
SM471

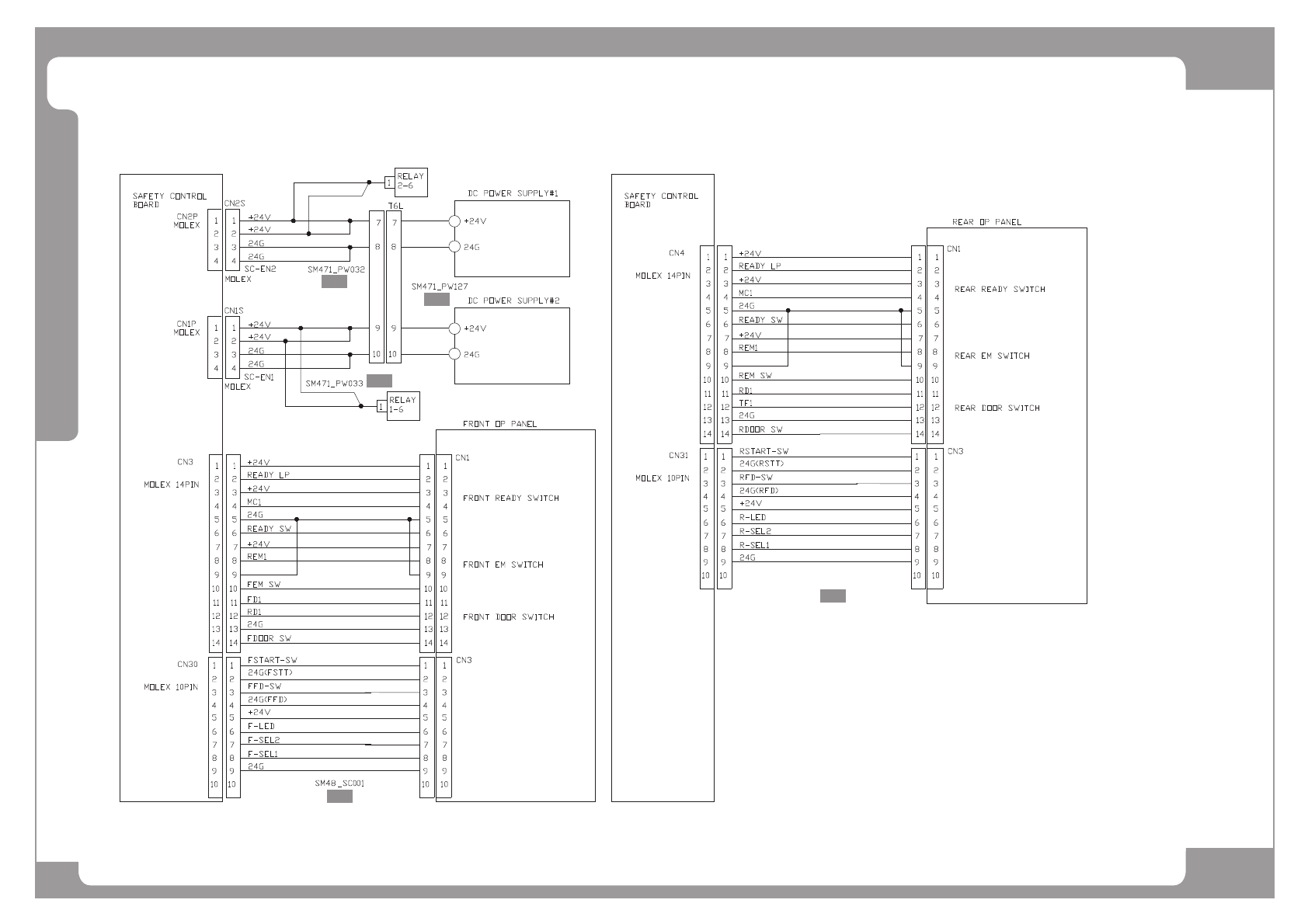

Safety Control Board Interface (1/4)
[1]
[2]
[3]
[4]
[5]
SM 48-SC002
Page
HANWHA TECHWIN
183
SM471
Safety Control Board Interface (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032
2 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127
3 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033
4 AM03-020654A CABLE ASSY-F_OP_PANEL_IF_SACO_F_TBOX 1 AM03-006965A SM48-SC001
5 AM03-020656A CABLE ASSY-R_SACO_R_TBOX_OP_PANEL_IF 1 AM03-006966A SM471-SC102-1
