Conveyor Ass'y (5/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 J70531012C SUPPORT_MOVE_RAIL_TL 1 J70531012B
33 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 1
34 J70531028A TENSION_BEARING_PIN J70531028A 2
35 FC09-004587A TENSION_BRACKET 2 J70531027A
36 MC05-900058 TIMMING_BELT_WIDTH 180-3GT-9 1
37 J71531008A PULLEY_W_MOTOR J71531008A 1
38 J71531024A WIDTH_PULLEY J71531024A 8
39 FC29-004248A WORK_WIDTH_SENSOR_DOG 1 J70531066A
40 MC05-900057 BELT_WORK MAM-5P-1550-6W 2
41 J71531013B WORK_FRONT_FRAME 2
42 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 1 EP03-900049
43 FC18-901355 C-RING DIA11(HOLE) 8 FC18-901352
44 FC29-006463A CV_SUPPORT_M_RAIL 1 J70531103A
45 EP08-000203 SERVO_MOTOR_PB PBM423DXC24 1 EP08-900126
46 J90831211B BELT_MOTOR_BW2-1_CABLE_ASSY 1
47 EP19-900099 PHOTO SENSOR[E3S-LS3N] 2
48 HP03-000094 CYLINDER-CXSJM10-30-A93 1 HP03-900015
49 J70531020A IDLER_SPACER_11 12
51 J70531025A WIDTH_TENSION_SPACER 4
Page
HANWHA TECHWIN
43
SM471
Page
HANWHA TECHWIN
44
SM471

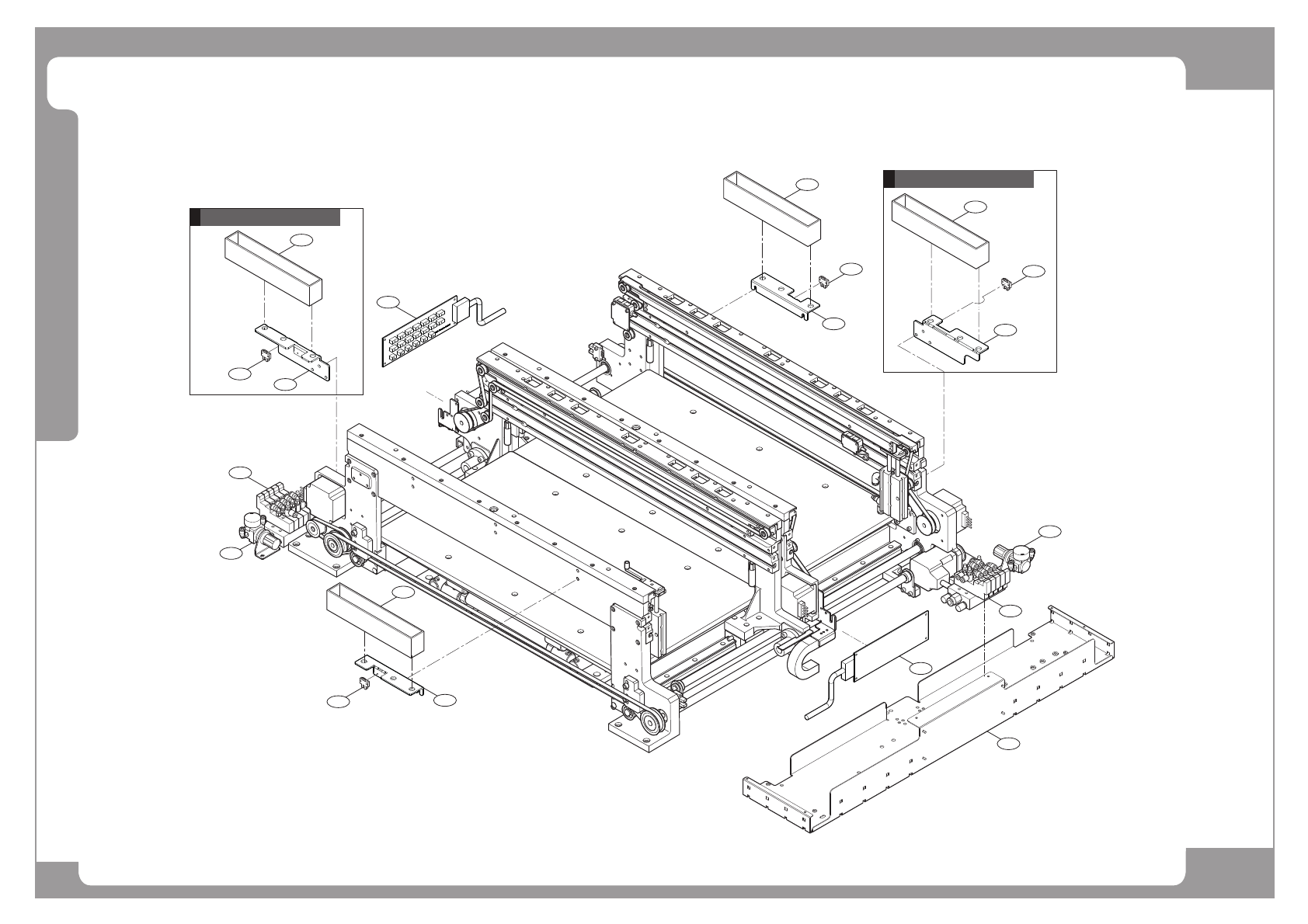

Conveyor Ass'y (6/6)
3
3
4
5
4
5
6
8
8
7
1
7
1
7
1
2
AIR SHOWER OPTION
1
7
2
AIR SHOWER OPTION
