Page HANWHA TECHWIN 45 SM471 Conveyor Ass'y (6/6) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J7253100 5C DUMP_BOX 2 J72531005A 2 FC09-004094B BRACKET -DUMP_BOX_SUPPOR T_1;2.3 2…
Page
HANWHA TECHWIN
44
SM471
Conveyor Ass'y (6/6)
3
3
4
5
4
5
6
8
8
7
1
7
1
7
1
2
AIR SHOWER OPTION
1
7
2
AIR SHOWER OPTION
Page
HANWHA TECHWIN
45
SM471
Conveyor Ass'y (6/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J72531005C DUMP_BOX 2 J72531005A
2 FC09-004094B BRACKET-DUMP_BOX_SUPPORT_1;2.3 2 J70531059C/FC29-002694C/FC09-004094A AIR SHOWER OPTION
3 HP09-900109 REGULATOR 2 HP09-900110
4 HP14-000718 VALVE,SOLENOID-SY3120-05-CJQZ1771 2 HP14-900040
5 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 2
6 FC30-001289A PLATE-LEFT_2;SPCC 1 J70531104C AIR SHOWER OPTION
7 EP20-900101 SWITCH_CLAMP_SENSOR 4
8 FC09-004095B BRACKET-DUMP_BOX_SUPPORT_2,2.0 2 FC09-004095A
Page
HANWHA TECHWIN
46
SM471

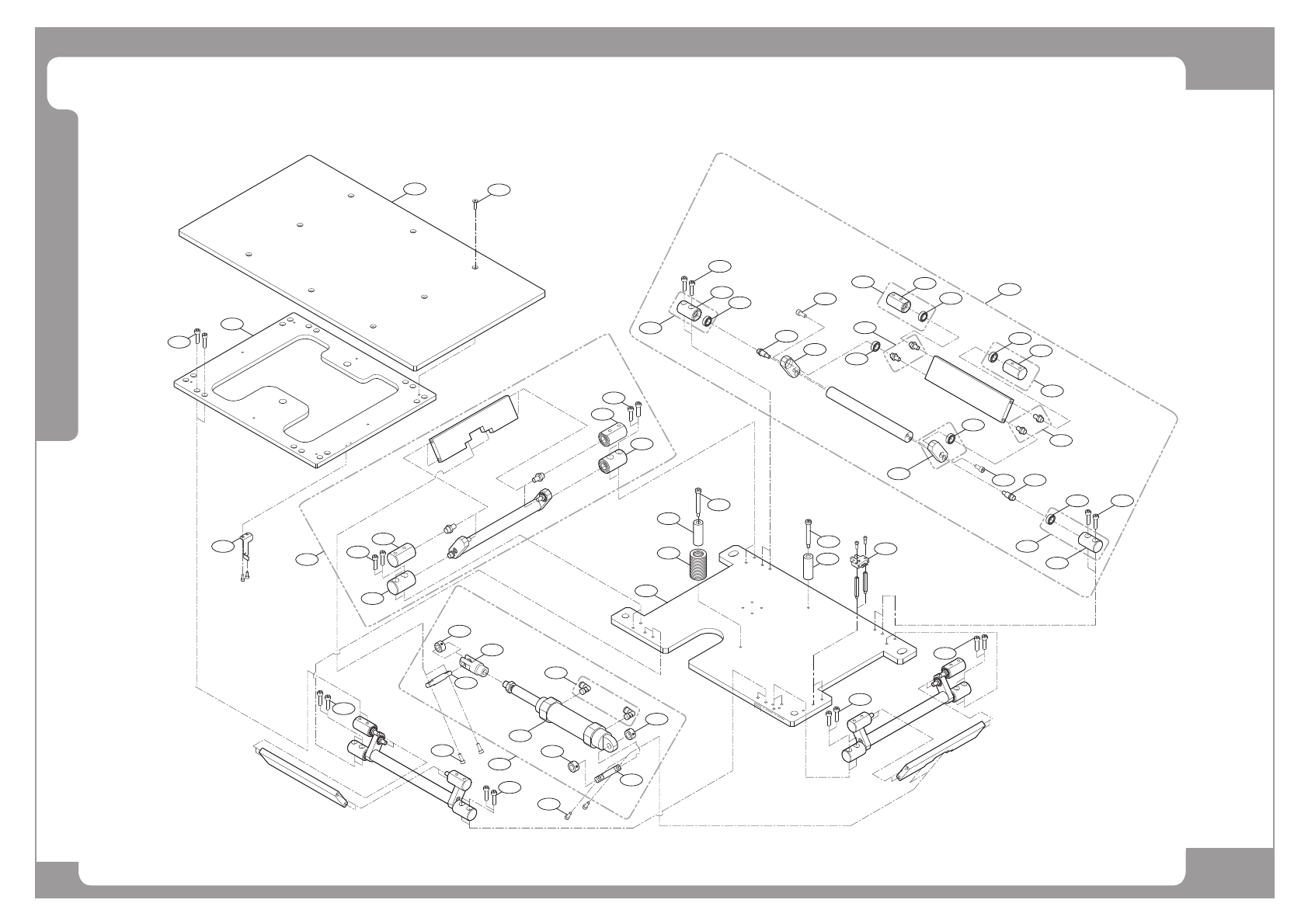

Backup Table Ass’y
8
7
17
15
24
2
22
22
23
26
24
6
6
22
1
16
31
24
26
26
22
24
30
3
4
5
8
26
9
11
33
11
12
14
15
14
18
18
26
19
26
32
32
19
19
20
21
12
33
23
26
15
25
15
10
15
25
15
26
