Page HANWHA TECHWIN 94 SM471 Cover Ass’y (3/3) 6 15 14 22 20 19 21 7 4 23 18 5 13 17 3 16 2 1 9 10 11 8 9 8

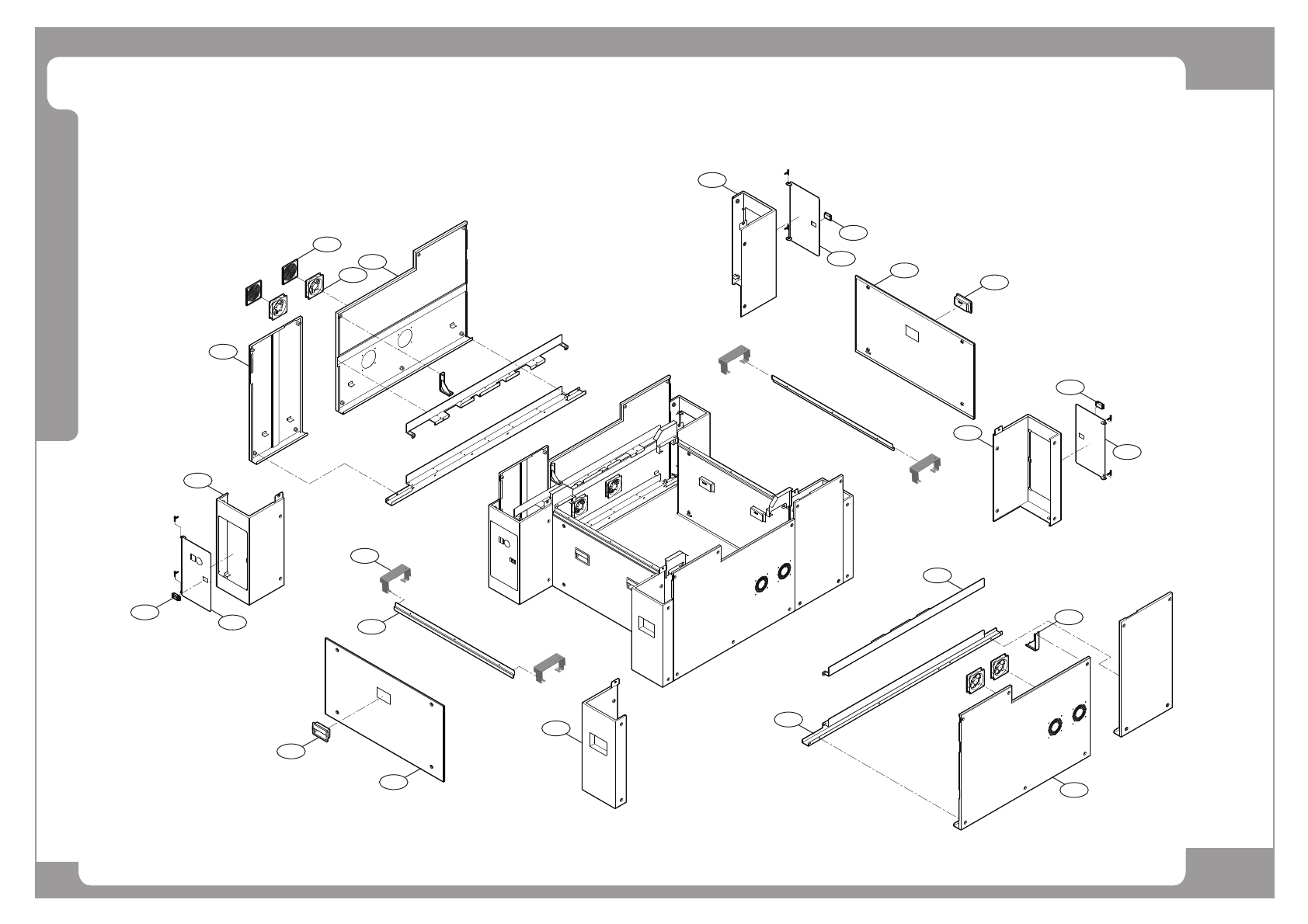

Page
HANWHA TECHWIN
93
SM471
Cover Ass’y (2/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A
1 J70521075D GAS_SPRING_BRACKET1 4
2 FC38-000079 GAS SPRING-GAS SPRING;GAS,200,1.5 8
B
3 EP20-900137 SAFETY_DOOR_SWTICH 2
4 FC09-001727A BRACKET-SENSOR_BKT3 2
5 FC09-001726A BRACKET-DOOR_SWITCH_BKT3 2
C
6 FC15-000998A COVER-LCD_HINGE_PLT 2
7 CD06-000004 LCDMONITOR 15 ST 150 2 CD05-900119
8 FC15-000505B COVER-MONITOR_GUIDE_PL;SPCC,WHITE, 2 FC30-000844A
9 J7252061A PAD-BRACKET[J7252061A] 4
10 FC15-000997A COVER-LCD_BKT 2
D
15 EP20-900003 SWITCH_1B_LED_RED 2
16 EP20-900004 SWITCH_1B_LED_YELLOW 2
17 EP20-900005 SWITCH_1B_LED_GREEN 2
18 EP20-900026 SWITCH_2B_LED_WHITE 2
19 EP20-900002 SWITCH_1B_LED_WHITE 2
20 EP20-900042 EMERGENCY SWITCH ASSY[704.075.2(EM)] 2
21 FC30-000829B PLATE-OP_PANEL 1 FC30-000829A
E
22 FC15-001005B COVER-KEYBOARD_BASE 1
23 FC15-000957A KEYBOARD_BASE_BKT 2 FC15-000957A, FC15-000957B
24 AM03-005237A ASSY,COVER-KEYBOARD_ASSY 1
25 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm 1
Page
HANWHA TECHWIN
94
SM471
Cover Ass’y (3/3)
6
15
14
22
20
19
21
7
4
23
18
5
13
17
3
16
2
1
9
10
11
8
9
8
Page
HANWHA TECHWIN
95
SM471
Cover Ass’y (3/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP07-901528 FAN_FILTER 120MM(NMB) 2
2 J90833316A FAN_CABLE_ASSY SM-FAN00 4
3 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A
4 FC15-000952A COVER-LOWER_SIDE_1 2
5 FC15-000949B COVER-LOWER FL 1 FC15-000949A
6 FC29-900217 SLIDE_LATCH A3-40-625-12 1
7 FC15-000960A COVER-OPEN_DOOR_A 1
8 FC29-900144 DRAWER PULL [HD-108] 4
9 J70521033B COVER_LFM 2
10 FC15-001147B COVER-FB SIDE COVER 4
11 J70521088B FB-COVER 2
13 FC15-000948B COVER-LOWER FR 1 FC15-000948A
14 FC29-900217 SLIDE_LATCH A3-40-625-12 1
15 J70511018B CABLE_DUCT_S-V 6
16 J70521049B SIDE_COVER_SUPPORT 1 J70521049A
17 FC15-000944B COVER-LOWER_SIDE_2_R 1 FC15-000944A
18 FC15-000949B COVER-LOWER FL 1 FC15-000949A
19 FC15-000961A COVER-OPEN_DOOR_B 1
20 FC29-900217 SLIDE_LATCH A3-40-625-12 1
21 FC15-000961A COVER-OPEN_DOOR_B 1
22 FC29-900217 SLIDE_LATCH A3-40-625-12 1
23 FC15-000951B COVER-LOWER RR 1 FC15-000951A
