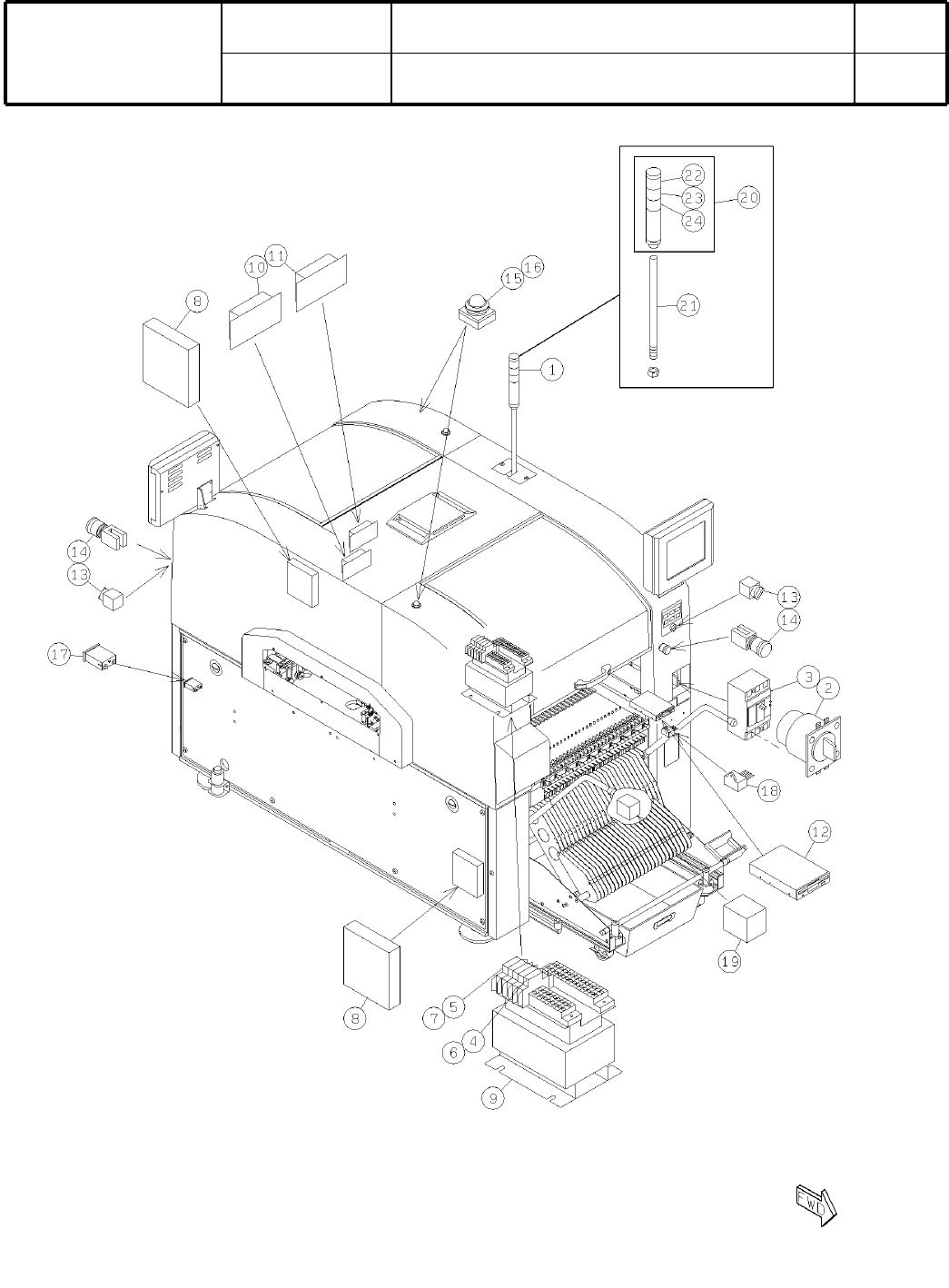

2 本体部取付制御部品 _ RoHS Electric Parts on Main Body_RoHS パー ツレイ アウト Kit No. キ ット 品番 Kit Name キ ット 名称 N610017888AA ｾｸｼｮﾝ No . PARTS LAYOUT Section No. - - E3 ( KN610017888AA-01 )
Ref
No.
Remarks
R
1
Q'ty
1
本
体部
取付制
御
KIT
_
RoHS
Electric KIT on Main Body_RoHS
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610028581AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
MOTOR-DRIVER
1
1 KXFP6GE1A00
S
MR-J2S-40B-EE085
MOTOR-DRIVER
1
2 KXFP6GB0A00
S
MR-J2S-100B-EE085
MOTOR-DRIVER
1
3 N510012086AA
S
D3850
PCB
1
4 N610080208AA
S
PE1ACA_PbF: LED Lighting Control Board
MONITOR
1
5 N510011554AA
S
FP-VM-10-MO
MONITOR
1
6 N510011555AA
S
FP-VM-10-SO
KEY-BOARD
2
7 KXFP5Z1AA00
S
AB12C-6046/GE5
PCB
1
8 N610113442AA
S
NF18CA:Line Camera Switchover CNT Board
PCB
2
9 N610061446AB
S
NF2ECA
Unit
2
10 N610028575AA Line-Camera Unit_RoHS
Unit
2
11 N610020291AA Line Camera LED Lighting
Side light
2
12 KXFK002EA00 333HC0/Side illumination
FAN
2
13 KXF0DRYAA00 EUDC24B4
BACK-LIGHT
2
14 N510016346AA CA5-BLU10T-01
E2
2
本体部取付制御部品
_
RoHS
Electric Parts on Main Body_RoHS
パーツレイアウト
Kit No.
キット
品番
Kit Name
キット
名称
N610017888AA
ｾｸｼｮﾝ
No
.
PARTS LAYOUT
Section No.
-
-
E3
( KN610017888AA-01 )
Ref
No.
Remarks
R
1
Q'ty
2
本体部取付制御部品
_
RoHS
Electric Parts on Main Body_RoHS
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit No.
キット
品番
Kit Name
キット名称
N610017888AA
Part Name
備 考
ｾｸｼｮﾝ
No
.
PARTS LIST
Section No.
R
3
PATLITE
1
1 N610018330AA Three-color PATLITE LEDRoHS_with 380mm Pole
SW-PARTS
11
2 KXFP6CVAA00
S
V1SWUF
BREAKER
1
3 KXFP6G7SA00
S
NF100-SWU 3P 15A
CIRCUIT-PROTECTOR
1
4 N510013339AA
S
CP30-BA 3P 1-MD 7A CCC
CIRCUIT-PROTECTOR
1
5 N510012144AA
S
CP30-BA 2P 1-MD 7A CCC
COVER
1
6 N510005110AA
S
TC3-CPNP
COVER
1
7 N235TC2CPNP
S
TC2-CPNP
RESISTOR
2
8 KXFP60UAA00
S
MR-RB12
TRANS
1
9 N510013068AA
S
TH2680W16KB
NOISE-FILTER
1
10 KXFP6G0GA00
S
3SUP-HU10-ER-6
NOISE-FILTER
1
11 KXFP6GT7A00
S
SUP-EQ10-ER-6
FDD
1
12 N902YD70-242
S
YD-702D-6238D
SWITCH
2
13 KXFP019AA00
S
AR22PR-220G
SWITCH
2
14 N510011524AA
S
XW1E-BV402MFR-TK2377
LAMP
2
15 KXFP6GAGA00 APN122DNS-TK2310
TERMINAL-COVER
2
16 KXFP60LAA00 APN-PVL
METER
1
17 KXFP5C9AA00
S
TH632
SK
1
18 N610018497AA
Surge protector_RAV-801BXZ-4_with terminalsRoHS
TERMINAL-BLOCK
1
19 N510009985AA
S
TM-212
SIGNAL-TOWER
1
20 N510012676AA
S
#LCR-302FBW-RYG B0701
SIGNAL-TOWER-POLE
1
21 N510012675AA #SZR-80L-037 QC007
LED-LAMP-UNIT
1
22 N510027039AA B72100111-1F1 (Red)
LED-LAMP-UNIT
1
23 N510027040AA B72100111-2F1 (Yellow)
LED-LAMP-UNIT
1
24 N510027041AA B72100111-3F1 (Green)
LED-LAMP-UNIT
0
25 N510027042AA B72100111-4F1 (Blue)
LED-LAMP-UNIT
0
26 N510027043AA B72100111-7F1 (White)
E4
-
-
( KN610017888AA-02 )
